手把手教 Vue3.2+Vite+Echarts 5 绘制3D线条效果中国地图

简介

本篇文章介绍 Vue3.2+Vite 项目内使用 Echarts 5 绘制中国地图，标记分布点！之前没有接触过 Echarts 的，可以先去官方示例看看，里面图形特别齐全。但是官方文档看着费劲的，太多了根本记不住，所以自己做个总结，下次就可以直接使用了，不用做重复无用功。

安装插件

1、下载并引入 echarts

Echarts 已更新到了 5.0以上 版本，安装完记得检查下自己的版本是否是 5.0以上版本 。
安装完成之后，在 package.json 中检查是否安装成功？

// `安装`
npm install echarts --save

2、下载地图的 json 数据

阿里云下载中国以及各个省份地图数据，免费的文件下载地址：
传送门【下载地址】

引入需要绘制的地图数据 json 或 js 文件，本文使用的是 json 格式：

// 地图的 json 数据
import chinaJson from '../utils/china.json'

3、全局引入或局部引入（我这里选择单页面局部引入）

1、全局引入在man.js中引入挂载；
2、单页面引入方式：

<script setup>import * as echarts from 'echarts'import chinaJson from '../utils/china.json'</script>

3、准备容器

//
<div ref="chinaMap" class="map"></div>

4、实例化 echarts 对象

<script setup>import * as echarts from 'echarts'import chinaJson from '../utils/china.json' // 地图的 json 数据// 初始化const chinaMap = ref()var myChart = echarts.init(chinaMap.value)echarts.registerMap('china', chinaJson) //注册可用的地图</script>

5、指定配置项和数据

  var option = {// 存放需要绘制图片类型，以及样式设置}

4、开始绘制流线中国地图

1、开始绘制

const drawChina = () => {var myChart = echarts.init(chinaMap.value)echarts.registerMap('china', chinaJson) //注册可用的地图var option = {tooltip: {trigger: 'item',backgroundColor: 'rgba(252, 252, 252, 0.82)',borderColor: '#fff',showDelay: 0,hideDelay: 0,enterable: true,transitionDuration: 0,extraCssText: 'z-index:100',formatter: (params, ticket, callback) => {//根据业务自己拓展要显示的内容// console.log(params,'params',)var res = ''var initss = 0var newArry = ''var name = params.name// var value = params.value[params.seriesIndex + 1]if (params.data.ints > 0) {initss = params.data.ints}if (params.data.tit?.length > 0) {newArry = Array.from(params.data.tit,(item)=> item.title)}res = "<div style='max-width:500px;white-space:pre-wrap;'><span>" + name + '</span>旅游：'+ "<div style='color: red;'>" + newArry + "</div></div>"return res},},geo: {show: true,center: [105.194115019531, 35.582111640625],map: 'china',roam: drawChinaObj.roam, //是否允许缩放，拖拽zoom: drawChinaObj.zoom, //初始化大小//缩放大小限制scaleLimit: {min: 0.1, //最小max: 12, //最大},//设置中心点//center: [95.97, 29.71],//省份地图添加背景//regions: regions,itemStyle: {// normal: {areaColor: '#3352c7',color: '#e91e63',borderColor: '#5e84fd',borderWidth: 2,// },},label: {color: 'rgba(255,255,255,0.5)',show: false,},//高亮状态emphasis: {label: {show: true,color: '#fff',},itemStyle: {areaColor: '#e91e63',},},z: 10,},//配置属性series: series,}myChart.setOption(option)}

2、线条动画效果关键代码处理：

var series = [];[['上海', chinaDatas]].forEach((item, i) => {series.push(//设置指向箭头信息{type: 'lines',zlevel: 2,effect: {show: true,period: 4, //箭头指向速度，值越小速度越快trailLength: 0.02, //特效尾迹长度[0,1]值越大，尾迹越长重symbol: 'arrow', //箭头图标symbolSize: 8, //图标大小},coords:[[1,2],[2,3]],lineStyle: {// normal: {color: '#adffd0',width: 1, //尾迹线条宽度opacity: 1, //尾迹线条透明度curveness: 0.3, //尾迹线条曲直度// },},data: convertData(item[1]),},// 发射点位置涟漪等效果{type: 'effectScatter',coordinateSystem: 'geo',zlevel: 2,rippleEffect: {//涟漪特效period: 4, //动画时间，值越小速度越快brushType: 'stroke', //波纹绘制方式 stroke, fillscale: 4, //波纹圆环最大限制，值越大波纹越大},itemStyle: {// normal: {show: false,color: '#f8f9f5',// },},label: {// normal: {show: true,position: 'right', //显示位置offset: [5, 0], //偏移设置formatter: function (params) {//圆环显示文字return params.data.name},fontSize: 13,// },emphasis: {show: true,},},symbol: 'circle',symbolSize: (val) => {return 5 + val[2] * 5 //圆环大小},data: item[1].map((dataItem) => {return {name: dataItem[0].name,tit: dataItem[0].obj,ints: dataItem[0].ints,value: chinaGeoCoordMap[dataItem[0].name].concat([dataItem[0].value]),}}),},//被攻击点{type: 'effectScatter',coordinateSystem: 'geo',zlevel: 2,rippleEffect: {//涟漪相关period: 2,brushType: 'stroke',scale: 5,},itemStyle: {color: '#f00',},label: {show: true,position: 'right',// offset:[5, 0],color: '#0f0',formatter: '{b}',textStyle: {color: '#fff',fontSize: 12,},emphasis: {show: true,color: '#f60',},},symbol: 'circle',symbolSize: 10, //圆圈大小data: [{name: item[0],value: chinaGeoCoordMap[item[0]].concat([10]),},],},)})

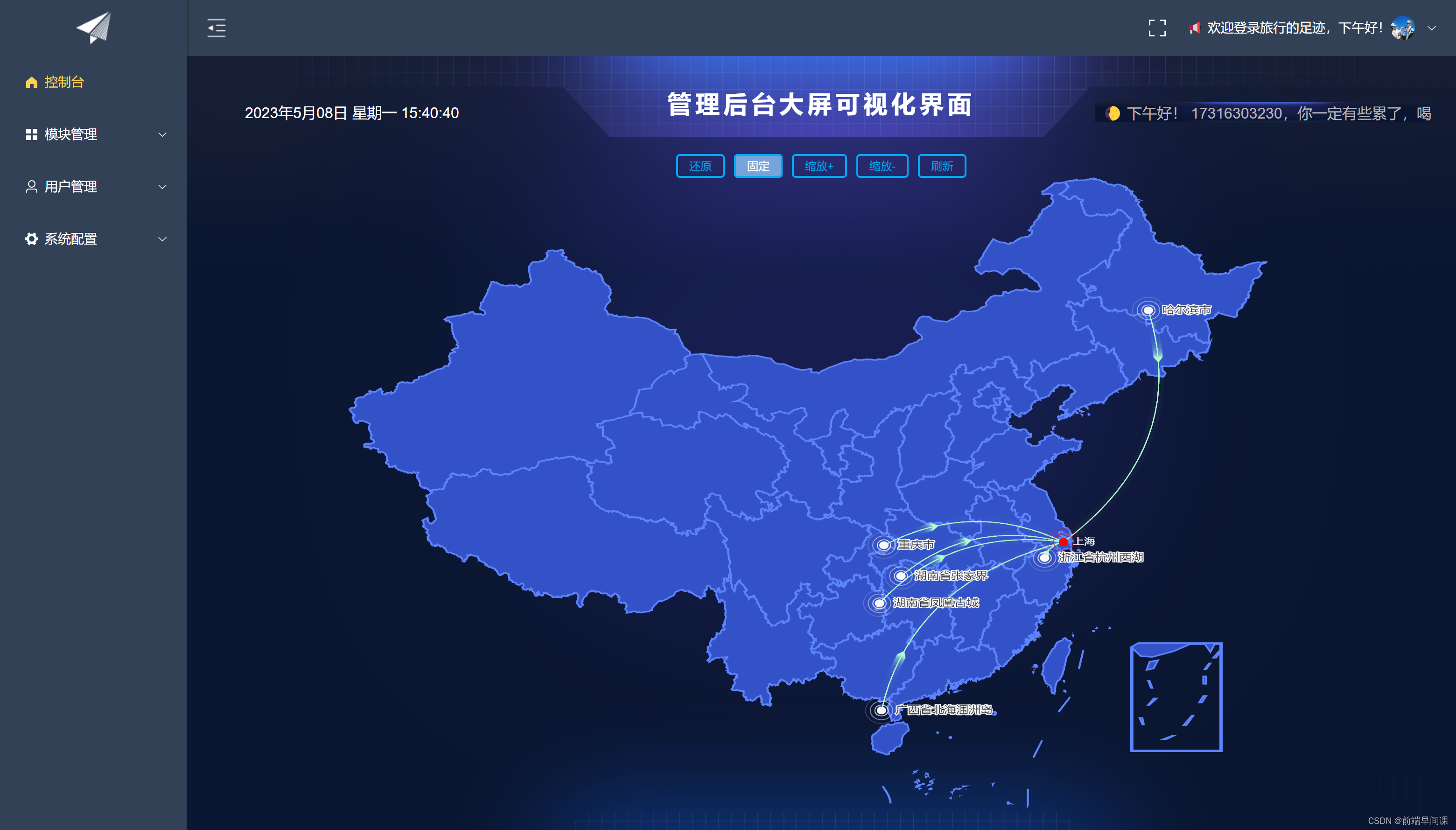

项目实践

最后分享完美案例

<template><div class="page"><div class="h1">管理后台大屏可视化界面</div><!-- 封装组件全局挂载 --><div class="time"><mm-time /></div><div class="ul"><span @click="onClickOpen(1)">还原</span><span @click="onClickOpen(2)" :class="{'spanBg': !drawChinaObj.roam}">固定</span><span @click="onClickOpen(3)">缩放+</span><span @click="onClickOpen(4)">缩放-</span><span @click="onClickOpen(5)">刷新</span></div><!-- 组件小提示 --><div class="tip"><TextSoll /></div><div ref="chinaMap" class="map"></div></div>
</template><script setup>import * as echarts from 'echarts'import chinaJson from '../utils/china.json'import TextSoll from '@/components/textSoll.vue'const { proxy } = getCurrentInstance()onMounted(() => {drawChina()})// 事件const onClickOpen = (e) => {if (e == 1) {drawChinaObj.roam = truedrawChinaObj.zoom = 1.5} else if (e == 2) {drawChinaObj.roam = false} else if (e === 3) {drawChinaObj.zoom = drawChinaObj.zoom + 0.2} else if (e === 4) {drawChinaObj.zoom = drawChinaObj.zoom - 0.2} else {drawChina()}drawChina()}// 初始化const chinaMap = ref()const drawChinaObj = reactive({hint: proxy.$utlis.handleTips(),roam: false,zoom: 1.5,})/*** 设置投射点* 中国地理坐标图*/const chinaGeoCoordMap = {上海: [121.46503408447266, 31.221068849156694],湖南省张家界: [110.54218025390624, 29.122992832430285],湖南省凤凰古城: [109.10110225, 27.4452938],浙江省杭州西湖: [120.1941180322266, 30.23469703027832],重庆市: [109.40093,31.018551],广西省北海涠洲岛: [109.23477202734375,20.857876355435824],哈尔滨市: [127.16687354565428,45.45942366122554],}const chinaDatas = [[{name: '湖南省张家界',value: 1,ints: 10,obj: [{title: '张家界(1次)'},]},],[{name: '湖南省凤凰古城',value: 1,ints: 10,obj: [{title: '凤凰古城(1次)'},]},],[{name: '浙江省杭州西湖',value: 1,ints: 10,obj: [{title: '杭州西湖(1次)'}]},],[{name: '重庆市',value: 1,ints: 10,obj: [{title: '巴南区花园(1次)'},{title: '奉节县白帝城(1次)'},]},],[{name: '广西省北海涠洲岛',value: 1,ints: 10,obj: [{title: '北海涠洲岛(1次)'}]},],[{name: '哈尔滨市',value: 1,ints: 10,obj: [{title: '哈尔滨市'}]}]]const scatterPos = [121.46503408447266, 31.221068849156694]// 1const convertData = (data) => {var res = []for (var i = 0; i < data.length; i++) {var dataItem = data[i]var fromCoord = chinaGeoCoordMap[dataItem[0].name]console.log(dataItem,'fromCoord')var toCoord = scatterPosif (fromCoord && toCoord) {res.push([{tit: dataItem[0].obj,coord: fromCoord,value: dataItem[0].value,},{coord: toCoord,},])}}console.log('res', res)return res}// 2var series = [];[['上海', chinaDatas]].forEach((item, i) => {series.push(// {//   //绘制一个新地图//   type: 'map',//   map: 'china',//   zoom: 1,//   center: [105.194115019531, 35.582111640625],//   z: -1,//   aspectScale: 0.75, ////   itemStyle: {//     // normal: {//       areaColor: '#f00',//       borderColor: '#090438',//       borderWidth: '2',//       shadowColor: '#090438',//       shadowOffsetX: 0,//       shadowOffsetY: 15,//     // },//   },// },//设置指向箭头信息{type: 'lines',zlevel: 2,effect: {show: true,period: 4, //箭头指向速度，值越小速度越快trailLength: 0.02, //特效尾迹长度[0,1]值越大，尾迹越长重symbol: 'arrow', //箭头图标symbolSize: 8, //图标大小},coords:[[1,2],[2,3]],lineStyle: {// normal: {color: '#adffd0',width: 1, //尾迹线条宽度opacity: 1, //尾迹线条透明度curveness: 0.3, //尾迹线条曲直度// },},data: convertData(item[1]),},// 发射点位置涟漪等效果{type: 'effectScatter',coordinateSystem: 'geo',zlevel: 2,rippleEffect: {//涟漪特效period: 4, //动画时间，值越小速度越快brushType: 'stroke', //波纹绘制方式 stroke, fillscale: 4, //波纹圆环最大限制，值越大波纹越大},itemStyle: {// normal: {show: false,color: '#f8f9f5',// },},label: {// normal: {show: true,position: 'right', //显示位置offset: [5, 0], //偏移设置formatter: function (params) {//圆环显示文字return params.data.name},fontSize: 13,// },emphasis: {show: true,},},symbol: 'circle',symbolSize: (val) => {return 5 + val[2] * 5 //圆环大小},data: item[1].map((dataItem) => {return {name: dataItem[0].name,tit: dataItem[0].obj,ints: dataItem[0].ints,value: chinaGeoCoordMap[dataItem[0].name].concat([dataItem[0].value]),}}),},//被攻击点{type: 'effectScatter',coordinateSystem: 'geo',zlevel: 2,rippleEffect: {//涟漪相关period: 2,brushType: 'stroke',scale: 5,},itemStyle: {color: '#f00',},label: {show: true,position: 'right',// offset:[5, 0],color: '#0f0',formatter: '{b}',textStyle: {color: '#fff',fontSize: 12,},emphasis: {show: true,color: '#f60',},},symbol: 'circle',symbolSize: 10, //圆圈大小data: [{name: item[0],value: chinaGeoCoordMap[item[0]].concat([10]),},],},)})// 3const drawChina = () => {var myChart = echarts.init(chinaMap.value)echarts.registerMap('china', chinaJson) //注册可用的地图var option = {tooltip: {trigger: 'item',backgroundColor: 'rgba(252, 252, 252, 0.82)',borderColor: '#fff',showDelay: 0,hideDelay: 0,enterable: true,transitionDuration: 0,extraCssText: 'z-index:100',formatter: (params, ticket, callback) => {//根据业务自己拓展要显示的内容// console.log(params,'params',)var res = ''var initss = 0var newArry = ''var name = params.name// var value = params.value[params.seriesIndex + 1]if (params.data.ints > 0) {initss = params.data.ints}if (params.data.tit?.length > 0) {newArry = Array.from(params.data.tit,(item)=> item.title)}res = "<div style='max-width:500px;white-space:pre-wrap;'><span>" + name + '</span>旅游：'+ "<div style='color: red;'>" + newArry + "</div></div>"return res},},geo: {show: true,center: [105.194115019531, 35.582111640625],map: 'china',roam: drawChinaObj.roam, //是否允许缩放，拖拽zoom: drawChinaObj.zoom, //初始化大小//缩放大小限制scaleLimit: {min: 0.1, //最小max: 12, //最大},//设置中心点//center: [95.97, 29.71],//省份地图添加背景//regions: regions,itemStyle: {// normal: {areaColor: '#3352c7',color: '#e91e63',borderColor: '#5e84fd',borderWidth: 2,// },},label: {color: 'rgba(255,255,255,0.5)',show: false,},//高亮状态emphasis: {label: {show: true,color: '#fff',},itemStyle: {areaColor: '#e91e63',},},z: 10,},//配置属性series: series,}myChart.setOption(option)}</script><style lang="less" scoped>
.page {width: 100%;height: 100%;background-image: url(xxxxxxxxxxx);background-position: 0% 0%;background-size: 100% 100%;background-repeat: initial;background-attachment: initial;background-origin: initial;background-clip: initial;position: relative;.h1 {position: absolute;width: 100%;top: 4%;text-align: center;// padding: 27px 0;font-size: 26px;font-weight: bold;color: #fff;letter-spacing: 4px;}.time {position: absolute;width: 300px;top: 6%;left: 2%;color: #fff;text-align: center;z-index: 100;}.ul {position: absolute;width: 100%;top: 12%;z-index: 9;font-size: 12px;color: #fff;text-align: center;margin-top: 10px;span {color: #03A9F4;padding: 4px 12px;border-radius: 4px;border: 2px solid #03A9F4;margin-left: 10px;cursor: pointer;&:first-child {margin-left: 0px;}&:active {color: #fff;background-color: rgba(137, 192, 243, 0.82)}}.spanBg {color: #fff;background-color: rgba(137, 192, 243, 0.82)}}.tip {position: absolute;width: 360px;top: 6%;right: 2%;color: #b9b5b5;float: right;}.map {width: 100%;margin: auto;height: calc(100vh);position: relative;// width: 100%;// height: calc(100vh - 90px);// background: rgba(6, 58, 214, 0.1);transform: rotate3d(1, 0, 0, 35deg);}
}
</style>

总结：

前端路上 | 所知甚少，唯善学。
各位小伙伴有什么疑问，欢迎留言探讨。
