webmagic爬取图片

本文主要是介绍webmagic爬取图片，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

webmagic算是一个国人开发比较简单粗暴的爬虫框架，首页：http://webmagic.io/ 中文文档：http://webmagic.io/docs/zh/posts/ch2-install/

这次随便找了个小图片网站爬取（大网站没代理怕被封IP）：http://www.mmonly.cc/ktmh/hzw/list_34_1.html

分析网站：
这里写图片描述

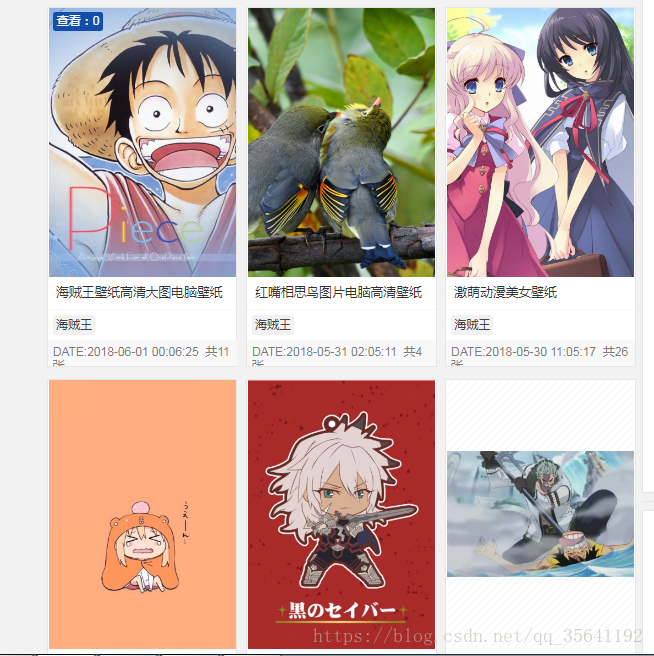

要获取这些主要内容的连接

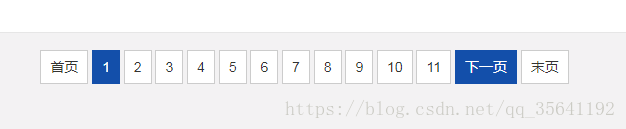

获取下一页的地址

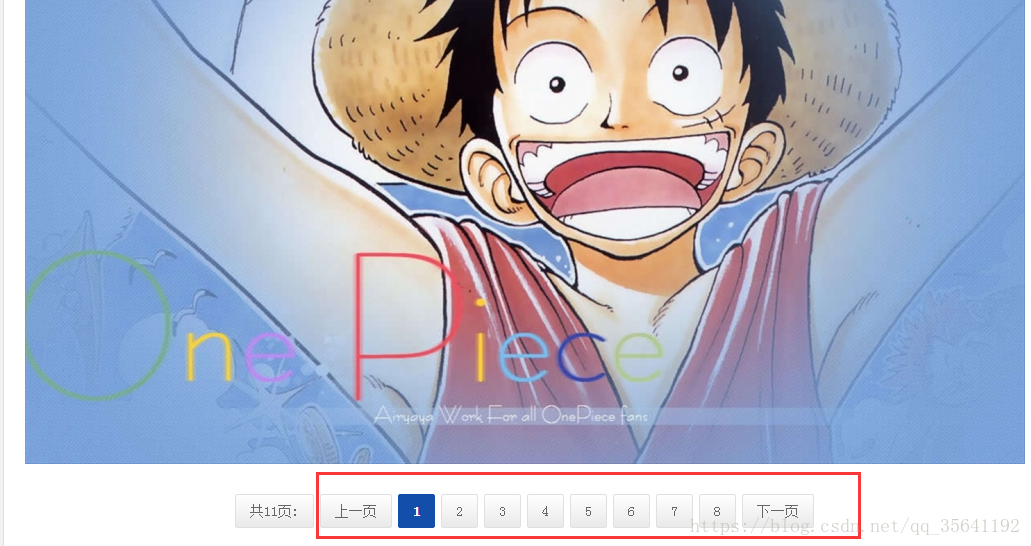

最后根据前面的地址进入详细页面获取图片和下一页的连接

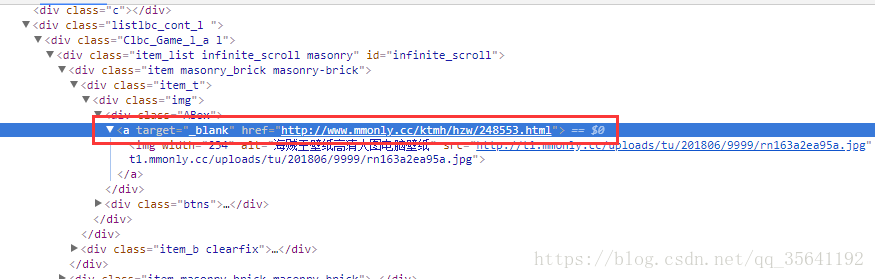

按F12查看资源有什么共性然后分析抓取
这里写图片描述
可以通过鼠标右键copy->copy selector等等获取该元素在网页中的位置(爬虫框架支持select选择器)

可以这样快速定位需要找的元素代码在哪

上代码：

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><groupId>com.da</groupId><artifactId>spider-pic</artifactId><version>0.0.1-SNAPSHOT</version><dependencies><dependency><groupId>us.codecraft</groupId><artifactId>webmagic-core</artifactId><version>0.7.3</version></dependency><dependency><groupId>us.codecraft</groupId><artifactId>webmagic-extension</artifactId><version>0.7.3</version></dependency><dependency><groupId>us.codecraft</groupId><artifactId>webmagic-selenium</artifactId><version>0.7.3</version></dependency><dependency><groupId>org.seleniumhq.selenium</groupId><artifactId>selenium-java</artifactId><version>3.0.1</version></dependency><dependency><groupId>org.seleniumhq.selenium</groupId><artifactId>selenium-chrome-driver</artifactId><version>3.0.1</version></dependency><dependency><groupId>org.seleniumhq.selenium</groupId><artifactId>selenium-server</artifactId><version>2.18.0</version></dependency></dependencies>
</project>

后面几个依赖还没弄清楚具体什么用
主程序：

package com.da.main;import us.codecraft.webmagic.Page;
import us.codecraft.webmagic.Site;
import us.codecraft.webmagic.Spider;
import us.codecraft.webmagic.processor.PageProcessor;
import us.codecraft.webmagic.selector.Selectable;public class PicProcessor implements PageProcessor {private Site site = Site.me().setRetryTimes(3).setSleepTime(1000).setTimeOut(10000);@Overridepublic void process(Page page) {if (page.getUrl().toString().startsWith("http://www.mmonly.cc/ktmh/hzw/list_")) {// System.out.println(1);// 获取详情页面page.addTargetRequests(page.getHtml().$("div.item_t > div > div.ABox > a").links().all());// 获取下一页，倒数第个a标签page.addTargetRequest(page.getHtml().$("#pageNum > a:nth-last-child(2)").links().toString());} else if (page.getUrl().regex("http://www.mmonly.cc/ktmh/hzw/[\\d]+") != null) {// System.out.println(page.getUrl());// 下一页Selectable links = page.getHtml().$("#nl > a").links();if (links != null && links.toString() != "##")page.addTargetRequest(links.toString());// 抓取内容String img = page.getHtml().$("#big-pic p img").toString();if (img == "null")img = page.getHtml().$("#big-pic a img").toString();img = img.substring(img.indexOf("src=\"") + 5, img.length() - 2);// System.out.println(img);page.putField("img", img);}}@Overridepublic Site getSite() {return site;}public static void main(String[] args) {Spider.create(new PicProcessor()).addUrl("http://www.mmonly.cc/ktmh/hzw/list_34_1.html").addPipeline(new MyPipeline()).thread(5).run();}
}

主程序就用官方推荐的模版就行了，主要抓取逻辑在process方法里面，就是一些正则和选择器获取解析内容工作

最后如果要那下载图需要重写Pipeline方法，默认是控制台打印路径

package com.da.main;import com.da.utils.UrlFileDownloadUtil;
import us.codecraft.webmagic.ResultItems;
import us.codecraft.webmagic.Task;
import us.codecraft.webmagic.pipeline.Pipeline;public class MyPipeline implements Pipeline {@Overridepublic void process(ResultItems resultItems, Task task) {// System.out.println(resultItems.getRequest().getUrl());String url = resultItems.get("img").toString();UrlFileDownloadUtil.downloadPicture(url);}
}

下载工具类：

package com.da.utils;import java.io.DataInputStream;
import java.io.File;
import java.io.FileOutputStream;
import java.io.IOException;
import java.net.MalformedURLException;
import java.net.URL;
import java.util.List;public class UrlFileDownloadUtil {/*** 传入要下载的图片的url列表，将url所对应的图片下载到本地*/public static void downloadPictures(List<String> urlList, List<String> names) {String baseDir = "E:\\spider\\";URL url = null;for (int i = 0; i < urlList.size(); i++) {try {url = new URL(urlList.get(i));DataInputStream dataInputStream = new DataInputStream(url.openStream());FileOutputStream fileOutputStream = new FileOutputStream(new File(baseDir + names.get(i)));byte[] buffer = new byte[1024 * 50];int length;while ((length = dataInputStream.read(buffer)) > 0) {fileOutputStream.write(buffer, 0, length);}System.out.println("已经下载：" + baseDir + names.get(i));dataInputStream.close();fileOutputStream.close();} catch (MalformedURLException e) {e.printStackTrace();} catch (IOException e) {e.printStackTrace();}}}public static void downloadPictures(List<String> urlList) {String baseDir = "E:\\spider\\";URL url = null;for (int i = 0; i < urlList.size(); i++) {try {String[] files = urlList.get(i).split("/");String name = files[files.length - 1];url = new URL(urlList.get(i));DataInputStream dataInputStream = new DataInputStream(url.openStream());FileOutputStream fileOutputStream = new FileOutputStream(new File(baseDir + name));byte[] buffer = new byte[1024 * 50];int length;while ((length = dataInputStream.read(buffer)) > 0) {fileOutputStream.write(buffer, 0, length);}System.out.println("已经下载：" + baseDir + name);dataInputStream.close();fileOutputStream.close();} catch (MalformedURLException e) {e.printStackTrace();} catch (IOException e) {e.printStackTrace();}}}// 下载一张图片public static void downloadPicture(String u, String name) {String baseDir = "E:\\spider\\";URL url = null;try {url = new URL(u);DataInputStream dataInputStream = new DataInputStream(url.openStream());FileOutputStream fileOutputStream = new FileOutputStream(new File(baseDir + name));byte[] buffer = new byte[1024 * 50];int length;while ((length = dataInputStream.read(buffer)) > 0) {fileOutputStream.write(buffer, 0, length);}System.out.println("已经下载：" + baseDir + name);dataInputStream.close();fileOutputStream.close();} catch (MalformedURLException e) {e.printStackTrace();} catch (IOException e) {e.printStackTrace();}}// 下载一张图片public static void downloadPicture(String u) {String baseDir = "E:\\spider\\";URL url = null;String[] files = u.split("/");String name = files[files.length - 1];try {url = new URL(u);DataInputStream dataInputStream = new DataInputStream(url.openStream());FileOutputStream fileOutputStream = new FileOutputStream(new File(baseDir + name));byte[] buffer = new byte[1024 * 50];int length;while ((length = dataInputStream.read(buffer)) > 0) {fileOutputStream.write(buffer, 0, length);}System.out.println("已经下载：" + baseDir + name);dataInputStream.close();fileOutputStream.close();} catch (MalformedURLException e) {e.printStackTrace();} catch (IOException e) {e.printStackTrace();}}
}
