ViewPager 结合Fragment实现一个Activity里包含多个可滑动的标签页，每个标签页可以有独立的布局及响应。

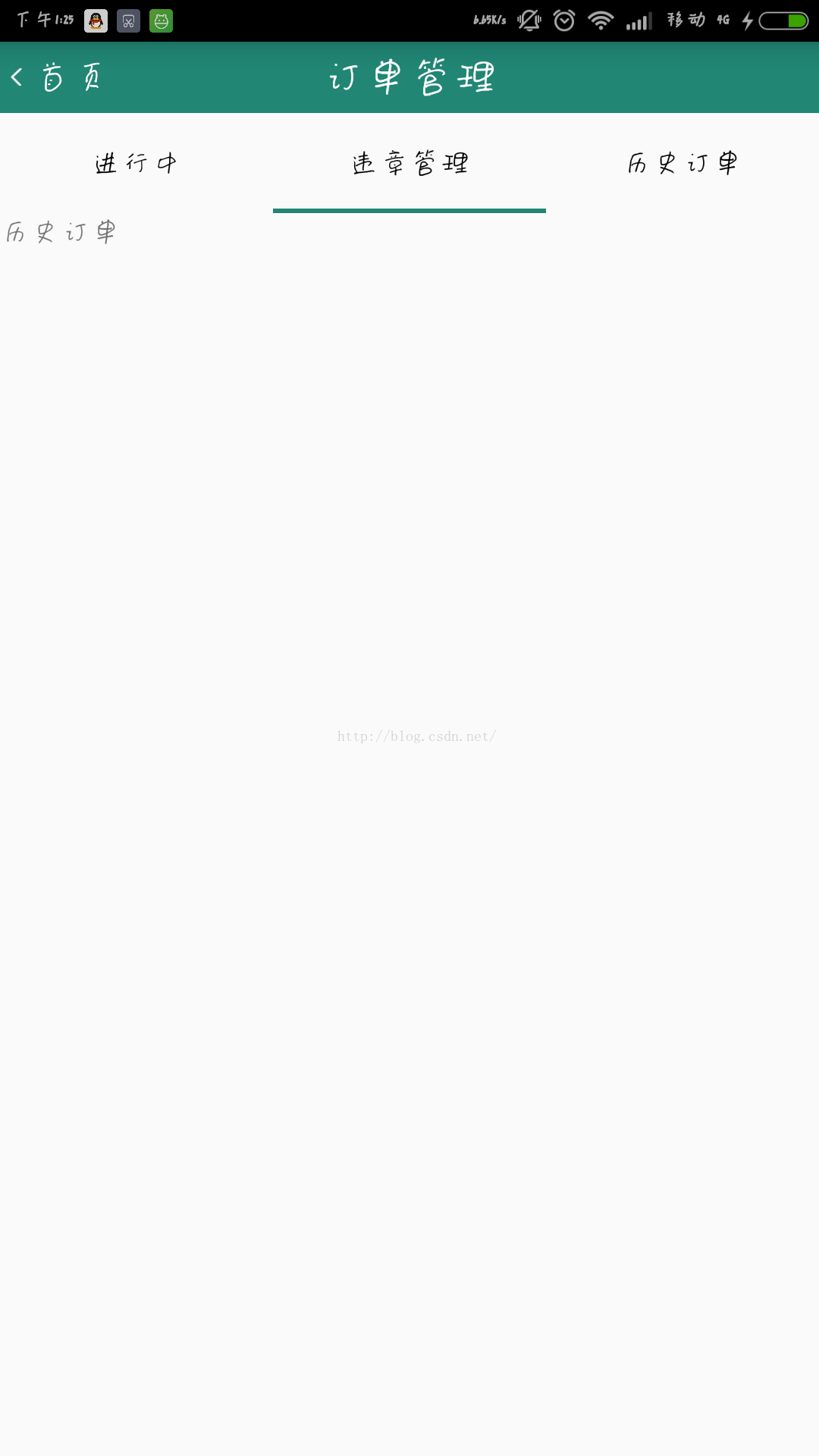

如下所示。
我们可以借助TabLayout来实现顶部导航。Activity布局文件如下：
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"xmlns:app="http://schemas.android.com/apk/res-auto"android:layout_width="match_parent"android:layout_height="match_parent"android:orientation="vertical"><--!自定义标题栏！－－＞<include layout="@layout/layout_ordermanagertitles" />
<--!自定义ＴａｂＬａｙｏｕｔ布局！－－＞<android.support.design.widget.TabLayoutandroid:id="@+id/tablayout"android:layout_width="match_parent"android:layout_height="wrap_content"app:tabIndicatorColor="@color/colorTitle"app:tabSelectedTextColor="@color/black"app:tabTextColor="@color/black" />
＜－－ＶｉｅｗＰａｇｅｒ 实现滑动－－＞<android.support.v4.view.ViewPagerandroid:id="@+id/viewpager"android:layout_width="match_parent"android:layout_height="match_parent" /></LinearLayout>Ａｃｔｉｖｉｔｙ Ｊａｖａ文件，在该文件中定义适配器，实现滑动和布局．
import android.content.Intent;
import android.os.Bundle;
import android.support.design.widget.TabLayout;
import android.support.v4.app.Fragment;
import android.support.v4.app.FragmentActivity;
import android.support.v4.app.FragmentManager;
import android.support.v4.app.FragmentPagerAdapter;
import android.support.v4.view.ViewPager;import com.glc.dianniuapp.R;
import com.glc.dianniuapp.fragments.FragmentDeal;
import com.glc.dianniuapp.fragments.FragmentHistory;
import com.glc.dianniuapp.fragments.FragmentRunning;import java.util.ArrayList;
import java.util.List;import butterknife.Bind;
import butterknife.ButterKnife;
import butterknife.OnClick;/*** Created by Leiqi on 2015/11/27.*/
public class OrderManagerAcitivity extends FragmentActivity implements ViewPager.OnPageChangeListener {@Bind(R.id.viewpager)ViewPager mViewPager;@Bind(R.id.tablayout)TabLayout mTabLayout;private List<Fragment> mFragments = new ArrayList<>()；//标签页集合private MyFragmentAdapter mFragmentAdapter;//自定义适配器private List<String> mTitles = new ArrayList<>();//标签集合@OnClick(R.id.tv_backhome)public void back() {Intent intent = new Intent(OrderManagerAcitivity.this, MainActivity.class);startActivity(intent);}@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_ordermanager);ButterKnife.bind(this);initView();}
//初始化视图private void initView() {mTitles.add("进行中");//标签mTitles.add("违章管理");mTitles.add("历史订单");// 标签页mFragments.add(new FragmentRunning());mFragments.add(new FragmentHistory());mFragments.add(new FragmentDeal());mFragmentAdapter = new MyFragmentAdapter(getSupportFragmentManager(), mFragments, mTitles);mViewPager.setAdapter(mFragmentAdapter);<span style="font-family: Arial;">//ViewPager设置适配器</span>mViewPager.addOnPageChangeListener(this);//将ＶｉｅｗＰａｇｅｒ加入到该Ａｃｔｉｖｉｔｙ中mTabLayout.setTabMode(TabLayout.MODE_FIXED);//设置ＴａｂＬａｙｏｕｔ模式，当前为系统默认模式．mTabLayout.setupWithViewPager(mViewPager);//将ViewPager和Tablayout关联起来mTabLayout.setTabsFromPagerAdapter(mFragmentAdapter);<span style="font-family: Arial;">//TabLayout设置加适配器</span>
}@Overridepublic void onPageScrolled(int position, float positionOffset, int positionOffsetPixels) {}@Overridepublic void onPageSelected(int position) {}@Overridepublic void onPageScrollStateChanged(int state) {}
//自定义适配器private class MyFragmentAdapter extends FragmentPagerAdapter {private List<String> mTitles;private List<Fragment> mFragments;public MyFragmentAdapter(FragmentManager fm, List<Fragment> mFragments, List<String> mTitles) {super(fm);this.mFragments = mFragments;this.mTitles = mTitles;}@Overridepublic CharSequence getPageTitle(int position) {return mTitles.get(position);}@Overridepublic Fragment getItem(int position) {return mFragments.get(position);}@Overridepublic int getCount() {return mFragments.size();}}
}
３、标签页继承于Ｆｒａｇｍｅｎｔ，其java 代码和布局文件如下：（这只是一个，其余的一样根据需求自己加）
public class FragmentDeal extends Fragment {@Nullable@Override//构建视图public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {return inflater.inflate(R.layout.fragment_deal,container,false);}
}
标签页面具体布局<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"android:layout_width="match_parent"android:layout_height="match_parent"android:orientation="vertical"><TextViewandroid:layout_width="wrap_content"android:layout_height="wrap_content"android:text="违章处理" /></LinearLayout>
如果要实现其他方式，可参考其他博客：
http://blog.csdn.net/zhang31jian/article/details/29867951
http://blog.csdn.net/harvic880925/article/details/38487149
