使用SlidingPaneLayout实现左滑菜单

本文主要是介绍使用SlidingPaneLayout实现左滑菜单，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

众所周知，在Google的Support包中发布了众多令人激动的控件，大大方便了我们实现界面效果，提高开发效率，今天我们来学习一下SlidingPaneLayout：
SlidingPaneLayout位于SupportV4包中，要使用它，我们首先要在build.gradle文件中添加项目依赖，如下所示：

compile 'com.android.support:support-v4:25.1.0'

等待项目重新构建完成后，我们就可以在XML布局文件中使用它了，具体书写方法如下：

<?xml version="1.0" encoding="utf-8"?>
<android.support.v4.widget.SlidingPaneLayout
    xmlns:android="http://schemas.android.com/apk/res/android"xmlns:tools="http://schemas.android.com/tools"android:id="@+id/spl_root"android:layout_width="match_parent"android:layout_height="match_parent">
</android.support.v4.widget.SlidingPaneLayout>

在这里，我们需要注意一点，SlidingPaneLayout需要一个指定的宽度去适配布局，一般使用match_parent。

接下来我们为SlidingPaneLayout添加两个pane，看看大概的效果：

<?xml version="1.0" encoding="utf-8"?>
<android.support.v4.widget.SlidingPaneLayout
    xmlns:android="http://schemas.android.com/apk/res/android"xmlns:tools="http://schemas.android.com/tools"android:id="@+id/spl_root"android:layout_width="match_parent"android:layout_height="match_parent"><TextView
        android:id="@+id/tv_left"android:layout_width="120dp"android:layout_height="match_parent"android:text="左侧菜单"android:textSize="22sp"android:background="#ff0000"/><TextView
        android:id="@+id/tv_right"android:layout_width="match_parent"android:layout_height="match_parent"android:text="这是内容"android:textSize="24sp"android:background="@color/colorPrimaryDark"/>
</android.support.v4.widget.SlidingPaneLayout>

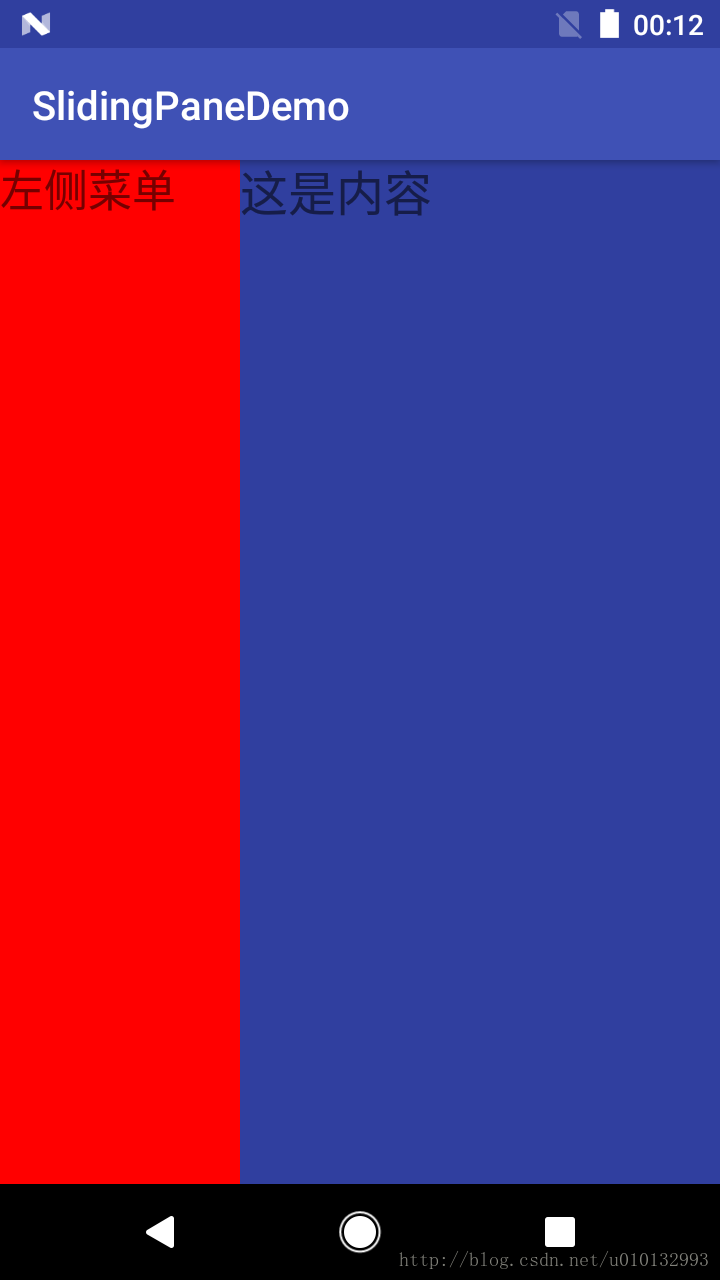

随后运行项目，效果如下图：
这里写图片描述

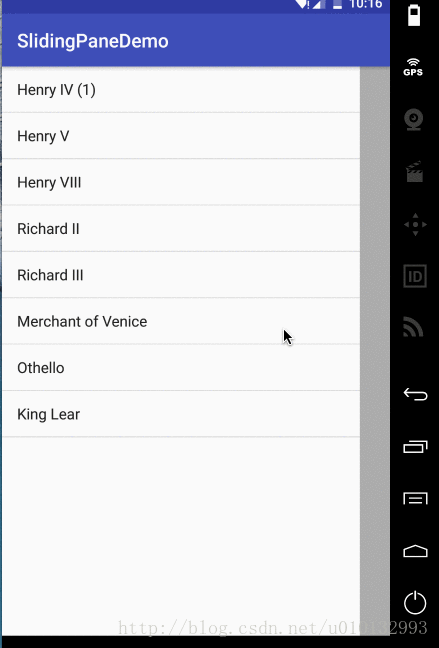

随后我们使用ListView搭配ScrollView来实现一种常见的左列表，右侧详情页的效果：
修改布局文件如下：

<?xml version="1.0" encoding="utf-8"?>
<android.support.v4.widget.SlidingPaneLayout
    xmlns:android="http://schemas.android.com/apk/res/android"xmlns:tools="http://schemas.android.com/tools"android:id="@+id/sliding_pane_layout"android:layout_width="match_parent"android:layout_height="match_parent"tools:context="com.example.tuozhaobing.slidingpanedemo.MainActivity"><ListView
        android:id="@+id/left_pane"android:layout_width="match_parent"android:layout_height="match_parent"android:layout_marginRight="0dp"android:paddingRight="0dp"android:layout_gravity="left"></ListView><ScrollView
        android:layout_width="match_parent"android:layout_height="match_parent"android:scrollbarStyle="outsideOverlay"android:background="#ff333333"><TextView
            android:id="@+id/content_text"android:layout_width="match_parent"android:layout_height="wrap_content"android:text="@string/sliding_pane_layout_summary"android:textAppearance="?android:attr/textAppearanceMedium"/></ScrollView></android.support.v4.widget.SlidingPaneLayout>

随后修改MainActivity.java代码如下：

package com.example.tuozhaobing.slidingpanedemo;import android.support.v4.widget.SlidingPaneLayout;
import android.support.v4.widget.TextViewCompat;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.view.View;
import android.view.ViewTreeObserver;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.ListView;
import android.widget.TextView;public class MainActivity extends AppCompatActivity {private SlidingPaneLayout mSlidingPaneLayout;private ListView mListView;private TextView mTextView;public static final String[] TITLES ={"Henry IV (1)","Henry V","Henry VIII","Richard II","Richard III","Merchant of Venice","Othello","King Lear"};public static final String[] DIALOGUE ={"So shaken as we are, so wan with care," +"Find we a time for frighted peace to pant," +"And breathe short-winded accents of new broils" +"To be commenced in strands afar remote." +"No more the thirsty entrance of this soil" +"Shall daub her lips with her own children's blood;" +"Nor more shall trenching war channel her fields," +"Nor bruise her flowerets with the armed hoofs" +"Of hostile paces: those opposed eyes," +"Which, like the meteors of a troubled heaven," +"All of one nature, of one substance bred," +"Did lately meet in the intestine shock" +"And furious close of civil butchery" +"Shall now, in mutual well-beseeming ranks," +"March all one way and be no more opposed" +"Against acquaintance, kindred and allies:" +"The edge of war, like an ill-sheathed knife," +"No more shall cut his master. Therefore, friends," +"As far as to the sepulchre of Christ," +"Whose soldier now, under whose blessed cross" +"We are impressed and engaged to fight," +"Forthwith a power of English shall we levy;" +"Whose arms were moulded in their mothers' womb" +"To chase these pagans in those holy fields" +"Over whose acres walk'd those blessed feet" +"Which fourteen hundred years ago were nail'd" +"For our advantage on the bitter cross." +"But this our purpose now is twelve month old," +"And bootless 'tis to tell you we will go:" +"Therefore we meet not now. Then let me hear" +"Of you, my gentle cousin Westmoreland," +"What yesternight our council did decree" +"In forwarding this dear expedience.","Hear him but reason in divinity," +"And all-admiring with an inward wish" +"You would desire the king were made a prelate:" +"Hear him debate of commonwealth affairs," +"You would say it hath been all in all his study:" +"List his discourse of war, and you shall hear" +"A fearful battle render'd you in music:" +"Turn him to any cause of policy," +"The Gordian knot of it he will unloose," +"Familiar as his garter: that, when he speaks," +"The air, a charter'd libertine, is still," +"And the mute wonder lurketh in men's ears," +"To steal his sweet and honey'd sentences;" +"So that the art and practic part of life" +"Must be the mistress to this theoric:" +"Which is a wonder how his grace should glean it," +"Since his addiction was to courses vain," +"His companies unletter'd, rude and shallow," +"His hours fill'd up with riots, banquets, sports," +"And never noted in him any study," +"Any retirement, any sequestration" +"From open haunts and popularity.","I come no more to make you laugh: things now," +"That bear a weighty and a serious brow," +"Sad, high, and working, full of state and woe," +"Such noble scenes as draw the eye to flow," +"We now present. Those that can pity, here" +"May, if they think it well, let fall a tear;" +"The subject will deserve it. Such as give" +"Their money out of hope they may believe," +"May here find truth too. Those that come to see" +"Only a show or two, and so agree" +"The play may pass, if they be still and willing," +"I'll undertake may see away their shilling" +"Richly in two short hours. Only they" +"That come to hear a merry bawdy play," +"A noise of targets, or to see a fellow" +"In a long motley coat guarded with yellow," +"Will be deceived; for, gentle hearers, know," +"To rank our chosen truth with such a show" +"As fool and fight is, beside forfeiting" +"Our own brains, and the opinion that we bring," +"To make that only true we now intend," +"Will leave us never an understanding friend." +"Therefore, for goodness' sake, and as you are known" +"The first and happiest hearers of the town," +"Be sad, as we would make ye: think ye see" +"The very persons of our noble story" +"As they were living; think you see them great," +"And follow'd with the general throng and sweat" +"Of thousand friends; then in a moment, see" +"How soon this mightiness meets misery:" +"And, if you can be merry then, I'll say" +"A man may weep upon his wedding-day.","First, heaven be the record to my speech!" +"In the devotion of a subject's love," +"Tendering the precious safety of my prince," +"And free from other misbegotten hate," +"Come I appellant to this princely presence." +"Now, Thomas Mowbray, do I turn to thee," +"And mark my greeting well; for what I speak" +"My body shall make good upon this earth," +"Or my divine soul answer it in heaven." +"Thou art a traitor and a miscreant," +"Too good to be so and too bad to live," +"Since the more fair and crystal is the sky," +"The uglier seem the clouds that in it fly." +"Once more, the more to aggravate the note," +"With a foul traitor's name stuff I thy throat;" +"And wish, so please my sovereign, ere I move," +"What my tongue speaks my right drawn sword may prove.","Now is the winter of our discontent" +"Made glorious summer by this sun of York;" +"And all the clouds that lour'd upon our house" +"In the deep bosom of the ocean buried." +"Now are our brows bound with victorious wreaths;" +"Our bruised arms hung up for monuments;" +"Our stern alarums changed to merry meetings," +"Our dreadful marches to delightful measures." +"Grim-visaged war hath smooth'd his wrinkled front;" +"And now, instead of mounting barded steeds" +"To fright the souls of fearful adversaries," +"He capers nimbly in a lady's chamber" +"To the lascivious pleasing of a lute." +"But I, that am not shaped for sportive tricks," +"Nor made to court an amorous looking-glass;" +"I, that am rudely stamp'd, and want love's majesty" +"To strut before a wanton ambling nymph;" +"I, that am curtail'd of this fair proportion," +"Cheated of feature by dissembling nature," +"Deformed, unfinish'd, sent before my time" +"Into this breathing world, scarce half made up," +"And that so lamely and unfashionable" +"That dogs bark at me as I halt by them;" +"Why, I, in this weak piping time of peace," +"Have no delight to pass away the time," +"Unless to spy my shadow in the sun" +"And descant on mine own deformity:" +"And therefore, since I cannot prove a lover," +"To entertain these fair well-spoken days," +"I am determined to prove a villain" +"And hate the idle pleasures of these days." +"Plots have I laid, inductions dangerous," +"By drunken prophecies, libels and dreams," +"To set my brother Clarence and the king" +"In deadly hate the one against the other:" +"And if King Edward be as true and just" +"As I am subtle, false and treacherous," +"This day should Clarence closely be mew'd up," +"About a prophecy, which says that 'G'" +"Of Edward's heirs the murderer shall be." +"Dive, thoughts, down to my soul: here" +"Clarence comes.","To bait fish withal: if it will feed nothing else," +"it will feed my revenge. He hath disgraced me, and" +"hindered me half a million; laughed at my losses," +"mocked at my gains, scorned my nation, thwarted my" +"bargains, cooled my friends, heated mine" +"enemies; and what's his reason? I am a Jew. Hath" +"not a Jew eyes? hath not a Jew hands, organs," +"dimensions, senses, affections, passions? fed with" +"the same food, hurt with the same weapons, subject" +"to the same diseases, healed by the same means," +"warmed and cooled by the same winter and summer, as" +"a Christian is? If you prick us, do we not bleed?" +"if you tickle us, do we not laugh? if you poison" +"us, do we not die? and if you wrong us, shall we not" +"revenge? If we are like you in the rest, we will" +"resemble you in that. If a Jew wrong a Christian," +"what is his humility? Revenge. If a Christian" +"wrong a Jew, what should his sufferance be by" +"Christian example? Why, revenge. The villany you" +"teach me, I will execute, and it shall go hard but I" +"will better the instruction.","Virtue! a fig! 'tis in ourselves that we are thus" +"or thus. Our bodies are our gardens, to the which" +"our wills are gardeners: so that if we will plant" +"nettles, or sow lettuce, set hyssop and weed up" +"thyme, supply it with one gender of herbs, or" +"distract it with many, either to have it sterile" +"with idleness, or manured with industry, why, the" +"power and corrigible authority of this lies in our" +"wills. If the balance of our lives had not one" +"scale of reason to poise another of sensuality, the" +"blood and baseness of our natures would conduct us" +"to most preposterous conclusions: but we have" +"reason to cool our raging motions, our carnal" +"stings, our unbitted lusts, whereof I take this that" +"you call love to be a sect or scion.","Blow, winds, and crack your cheeks! rage! blow!" +"You cataracts and hurricanoes, spout" +"Till you have drench'd our steeples, drown'd the cocks!" +"You sulphurous and thought-executing fires," +"Vaunt-couriers to oak-cleaving thunderbolts," +"Singe my white head! And thou, all-shaking thunder," +"Smite flat the thick rotundity o' the world!" +"Crack nature's moulds, an germens spill at once," +"That make ingrateful man!"};@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_main);initView();initData();}private void initData() {mSlidingPaneLayout.closePane();mSlidingPaneLayout.getViewTreeObserver().addOnGlobalLayoutListener(new FirstLayoutListener());mListView.setAdapter(new ArrayAdapter<String>(this, android.R.layout.simple_list_item_1, TITLES));mListView.setOnItemClickListener(new ListItemClickListener());}private void initView() {mSlidingPaneLayout = (SlidingPaneLayout) findViewById(R.id.sliding_pane_layout);mListView = (ListView) findViewById(R.id.left_pane);mTextView = (TextView) findViewById(R.id.content_text);}public class ListItemClickListener implements AdapterView.OnItemClickListener{@Overridepublic void onItemClick(AdapterView<?> parent, View view, int position, long id) {mTextView.setText(DIALOGUE[position]);
//            mActionBar.setTitle(TITLES[position]);mSlidingPaneLayout.closePane();}}public class FirstLayoutListener implements ViewTreeObserver.OnGlobalLayoutListener{@Overridepublic void onGlobalLayout() {mSlidingPaneLayout.getViewTreeObserver().removeOnGlobalLayoutListener(this);}}
}
