使用photoview+viewpager实现图片缩放切换（类似微信朋友圈图片查看）

2024-04-03 05:32
文章标签 实现 使用 查看 微信 图片 切换 缩放 类似 朋友圈 viewpager photoview

本文主要是介绍使用photoview+viewpager实现图片缩放切换（类似微信朋友圈图片查看），希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

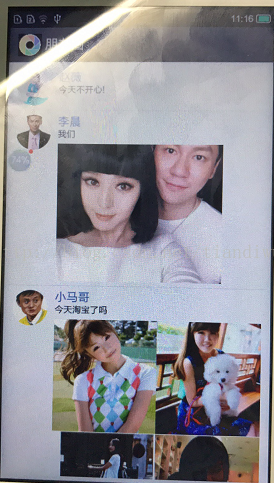

首先看一下最终效果


经过分析可知，整个页面布局应该是一个Listview，它的每一个条目item中包含原型头像（采用CircleImageVIew）一个数目可变的GridView和其他，Gridview不可滚动，图片查看可缩放使用photoview，图片切换使用viewpager，思路清晰之后，开始写。。。

导入依赖库：

compile 'com.google.code.gson:gson:2.2.4'
compile files('libs/circleimageview.jar')
compile files('libs/universal-image-loader-1.9.1.jar')

导入photoview源码https://github.com/chrisbanes/PhotoView

初始化ImageLoader

public class MyApplication extends Application {@Override
   public void onCreate() {super.onCreate();
      DisplayImageOptions defaultOptions = new DisplayImageOptions.Builder().showImageForEmptyUri(R.drawable.empty_photo) .showImageOnFail(R.drawable.empty_photo) .cacheInMemory(true).cacheOnDisc(true).build();
      ImageLoaderConfiguration config = new ImageLoaderConfiguration.Builder(getApplicationContext()).defaultDisplayImageOptions(defaultOptions).discCacheSize(50 * 1024 * 1024)//
            .discCacheFileCount(100)//缓存一百张图片
            .writeDebugLogs().build();
      ImageLoader.getInstance().init(config);
   }
}
清单文件中修改


1.MainActivity

public class MainActivity extends ListActivity {public static final String TAG = "MainActivity";
   private ListAdapter mAdapter;

   @Override
   public void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);
      setContentView(R.layout.activity_main);

      //开启异步任务去模拟获取数据
      new LoderDataTask().execute();

   }class LoderDataTask extends AsyncTask<Void, Void, MessageModle> {@Override
      protected MessageModle doInBackground(Void... params) {Gson gson = new Gson();

         MessageModle msg = gson.fromJson(getData(), MessageModle.class);
         return msg;
      }@Override
      protected void onPostExecute(MessageModle result) {mAdapter = new ListAdapter(MainActivity.this, result.list);
         setListAdapter(mAdapter);

      }}private String getData() {// 模拟网络获取数据
      String json = "{\"code\":200,\"msg\":\"ok\",list:["
            + "{\"id\":110,\"avator\":\"http://img0.bdstatic.com/img/image/shouye/leimu/mingxing.jpg\",\"name\":\"赵薇\",\"content\":\"今天不开心!\",\"urls\":[]},"
            + "{\"id\":111,\"avator\":\"http://image.cnwest.com/attachement/jpg/site1/20110507/001372d8a36f0f2f4c953a.jpg\",\"name\":\"李晨\",\"content\":\"我们\","
            + "  \"urls\":[\"http://guangdong.sinaimg.cn/2015/0530/U11307P693DT20150530094310.jpg\"]},"

            + "{\"id\":114,\"avator\":\"http://img.hexun.com/2009-05-01/117287830.jpg\",\"name\":\"小马哥\",\"content\":\"今天淘宝了吗\",\"urls\":["
            + "\"http://g.hiphotos.bdimg.com/album/s%3D680%3Bq%3D90/sign=ccd33b46d53f8794d7ff4b26e2207fc9/0d338744ebf81a4c0f993437d62a6059242da6a1.jpg\","

            + "\"http://f.hiphotos.bdimg.com/album/s%3D680%3Bq%3D90/sign=6b62f61bac6eddc422e7b7f309e0c7c0/6159252dd42a2834510deef55ab5c9ea14cebfa1.jpg\","
            + "\"http://g.hiphotos.bdimg.com/album/s%3D680%3Bq%3D90/sign=e58fb67bc8ea15ce45eee301863b4bce/a5c27d1ed21b0ef4fd6140a0dcc451da80cb3e47.jpg\","
            + "\"http://c.hiphotos.bdimg.com/album/s%3D680%3Bq%3D90/sign=cdab1512d000baa1be2c44b3772bc82f/91529822720e0cf3855c96050b46f21fbf09aaa1.jpg\"]},"

            + "{\"id\":112,\"avator\":\"http://img3.yxlady.com/yl/UploadFiles_5361/20150528/20150528050208705.jpg\",\"name\":\"邓超\",\"content\":\"奔跑吧兄弟！ 欢迎收看！\",\"urls\":[\"http://upload.cbg.cn/2015/0305/1425518659246.jpg\","
            + "\"http://www.people.com.cn/mediafile/pic/20150619/30/4179219540177204330.jpg\"]},"

            + "{\"id\":113,\"avator\":\"http://img4.imgtn.bdimg.com/it/u=945108765,1070109457&fm=21&gp=0.jpg\",\"name\":\"奥巴马\",\"content\":\"holle\",\"urls\":[\"http://f.hiphotos.bdimg.com/album/s%3D680%3Bq%3D90/sign=6b62f61bac6eddc422e7b7f309e0c7c0/6159252dd42a2834510deef55ab5c9ea14cebfa1.jpg\",\"http://g.hiphotos.bdimg.com/album/s%3D680%3Bq%3D90/sign=e58fb67bc8ea15ce45eee301863b4bce/a5c27d1ed21b0ef4fd6140a0dcc451da80cb3e47.jpg\",\"http://c.hiphotos.bdimg.com/album/s%3D680%3Bq%3D90/sign=cdab1512d000baa1be2c44b3772bc82f/91529822720e0cf3855c96050b46f21fbf09aaa1.jpg\"]}]}";

      return json;
   }
}

bean类

public class MessageModle {public int code;
   public String msg;

   public ArrayList<InfoBean> list;

   @Override
   public String toString() {return "MyMessage [code=" + code + ", msg=" + msg + ", list=" + list + "]";
   }}

public class InfoBean {public int id;
   public String avator;
   public String name;
   public String content;
   public String time;
   public String[] urls;



}
布局文件

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="6dp" >

    <ListView
        android:id="@android:id/list"
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />

    <TextView
        android:id="@android:id/empty"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:gravity="center"
        android:text="暂无数据" />

</RelativeLayout>

2.ListAdapter

public class ListAdapter extends BaseAdapter{private ArrayList<InfoBean> mList;
   private LayoutInflater mInflater;
   private Context mContext;

   public ListAdapter(Context context, ArrayList<InfoBean> list) {mInflater = LayoutInflater.from(context);
      mContext=context;
      this.mList=list;
   }@Override
   public int getCount() {return mList==null?0:mList.size();
   }@Override
   public InfoBean getItem(int position) {return mList.get(position);
   }@Override
   public long getItemId(int position) {return getItem(position).id;
   }@Override
   public View getView(int position, View convertView, ViewGroup parent) {ViewHolder holder;
      if (convertView == null) {holder = new ViewHolder();
         convertView = mInflater.inflate(R.layout.list_item, null);
         holder.avator=(ImageView)convertView.findViewById(R.id.avator);
         holder.name=(TextView)convertView.findViewById(R.id.name);
         holder.content = (TextView) convertView.findViewById(R.id.content);
         holder.gridView=(NoScrollGridView)convertView.findViewById(R.id.gridView);
         convertView.setTag(holder);
      } else {holder = (ViewHolder) convertView.getTag();
      }final InfoBean bean = getItem(position);
      //加载网络图片
      ImageLoader.getInstance().displayImage(bean.avator, holder.avator);
      holder.name.setText(bean.name);
      holder.content.setText(bean.content);
      if(bean.urls!=null&&bean.urls.length>0){holder.gridView.setVisibility(View.VISIBLE);
         holder.gridView.setAdapter(new DynamicGridAdapter(bean.urls, mContext));
         holder.gridView.setOnItemClickListener(new AdapterView.OnItemClickListener() {@Override
            public void onItemClick(AdapterView<?> parent, View view, int position, long id) {imageBrower(position,bean.urls);
            }});
      }else{holder.gridView.setVisibility(View.GONE);
      }return convertView;
   }private void imageBrower(int position, String[] urls) {Intent intent = new Intent(mContext, ImagePagerActivity.class);
      // 图片url,为了演示这里使用常量，一般从数据库中或网络中获取
      intent.putExtra(ImagePagerActivity.EXTRA_IMAGE_URLS, urls);
      intent.putExtra(ImagePagerActivity.EXTRA_IMAGE_INDEX, position);
      mContext.startActivity(intent);
   }// 优化listview
   private static class ViewHolder {public TextView name;
      public ImageView avator;
      TextView content;
      NoScrollGridView gridView;
   }
}

DynamicGridAdapter

public class DynamicGridAdapter extends BaseAdapter {private String[] files;

   private LayoutInflater mLayoutInflater;

   public DynamicGridAdapter(String[] files, Context context) {this.files = files;
      mLayoutInflater = LayoutInflater.from(context);
   }@Override
   public int getCount() {return files == null ? 0 : files.length;
   }@Override
   public String getItem(int position) {return files[position];
   }@Override
   public long getItemId(int position) {return position;
   }@Override
   public View getView(int position, View convertView, ViewGroup parent) {MyGridViewHolder viewHolder;
      if (convertView == null) {viewHolder = new MyGridViewHolder();
         convertView = mLayoutInflater.inflate(R.layout.gridview_item,
               parent, false);

         viewHolder.imageView = (ImageView) convertView.findViewById(R.id.album_image);
         convertView.setTag(viewHolder);
      } else {viewHolder = (MyGridViewHolder) convertView.getTag();
      }String url = getItem(position);
      if (getCount() == 1) {viewHolder.imageView.setLayoutParams(new android.widget.AbsListView.LayoutParams(300, 250));
      }if (getCount() == 2 ||getCount() == 4) {viewHolder.imageView.setLayoutParams(new android.widget.AbsListView.LayoutParams(200, 200));
      }ImageLoader.getInstance().displayImage(url, viewHolder.imageView);

      return convertView;
   }private static class MyGridViewHolder {ImageView imageView;
   }
}

布局文件

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="6dp" >

    <de.hdodenhof.circleimageview.CircleImageView
        android:id="@+id/avator"
        android:layout_width="48dp"
        android:layout_height="48dp"
        android:src="@drawable/empty_photo" />

    <TextView
        android:id="@+id/name"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginLeft="10dp"
        android:layout_toRightOf="@id/avator"
        android:textColor="#576B95"
        android:textSize="16sp"
        android:text="name" />

    <TextView
        android:id="@+id/content"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_below="@+id/name"
        android:layout_marginLeft="10dp"
        android:textSize="12sp"
        android:layout_toRightOf="@id/avator"
        android:text="content" />

    <com.xxx.demo.image.NoScrollGridView

        android:id="@+id/gridView"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:paddingTop="5dp"
        android:layout_below="@id/content"
        android:layout_marginLeft="10dp"
        android:layout_toRightOf="@id/avator"
        android:horizontalSpacing="1dp"
        android:numColumns="3"

        android:visibility="gone"
        android:verticalSpacing="1dp" />

</RelativeLayout>

3.自定义无滚动的GridView

public class NoScrollGridView extends GridView {public NoScrollGridView(Context context) {super(context);
   }public NoScrollGridView(Context context, AttributeSet attrs) {super(context, attrs);
   }@Override
   protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {int  expandSpec = 0;
       int  size = getAdapter().getCount();

      if (size == 1) {setNumColumns(1);
      } if ( size==2 || size == 4  ) {setNumColumns(2);
      }else {setNumColumns(3);
      }expandSpec = MeasureSpec.makeMeasureSpec(Integer.MAX_VALUE >> 2,MeasureSpec.AT_MOST);
      super.onMeasure(widthMeasureSpec,expandSpec);
   }}

4.图片查看Activiy

public class ImagePagerActivity extends FragmentActivity {private static final String STATE_POSITION = "STATE_POSITION";
   public static final String EXTRA_IMAGE_INDEX = "image_index";
   public static final String EXTRA_IMAGE_URLS = "image_urls";

   private HackyViewPager mPager;
   private int pagerPosition;
   private TextView indicator;

   @Override
   public void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);
      setContentView(R.layout.image_detail_pager);

      pagerPosition = getIntent().getIntExtra(EXTRA_IMAGE_INDEX, 0);
      String[] urls = getIntent().getStringArrayExtra(EXTRA_IMAGE_URLS);


      mPager = (HackyViewPager) findViewById(R.id.pager);
      ImagePagerAdapter mAdapter = new ImagePagerAdapter(getSupportFragmentManager(), urls);
      mPager.setAdapter(mAdapter);
      indicator = (TextView) findViewById(R.id.indicator);

      CharSequence text = getString(R.string.viewpager_indicator, 1, mPager
            .getAdapter().getCount());
      indicator.setText(text);
      // 更新下标
      mPager.setOnPageChangeListener(new OnPageChangeListener() {@Override
         public void onPageScrollStateChanged(int arg0) {}@Override
         public void onPageScrolled(int arg0, float arg1, int arg2) {}@Override
         public void onPageSelected(int arg0) {CharSequence text = getString(R.string.viewpager_indicator,
                  arg0 + 1, mPager.getAdapter().getCount());
            indicator.setText(text);
         }});
      if (savedInstanceState != null) {pagerPosition = savedInstanceState.getInt(STATE_POSITION);
      }mPager.setCurrentItem(pagerPosition);
   }@Override
   public void onSaveInstanceState(Bundle outState) {outState.putInt(STATE_POSITION, mPager.getCurrentItem());
   }private class ImagePagerAdapter extends FragmentStatePagerAdapter {public String[] fileList;

      public ImagePagerAdapter(FragmentManager fm, String[] fileList) {super(fm);
         this.fileList = fileList;
      }@Override
      public int getCount() {return fileList == null ? 0 : fileList.length;
      }@Override
      public Fragment getItem(int position) {String url = fileList[position];
         return ImageDetailFragment.newInstance(url);
      }}
}

viewpager

public class HackyViewPager extends ViewPager {private static final String TAG = "HackyViewPager";

   public HackyViewPager(Context context) {super(context);
   }public HackyViewPager(Context context, AttributeSet attrs) {super(context, attrs);
   }@Override
   public boolean onInterceptTouchEvent(MotionEvent ev) {try {return super.onInterceptTouchEvent(ev);
      } catch (IllegalArgumentException e) {return false;
      }catch(ArrayIndexOutOfBoundsException e ){return false;
      }}}
布局文件

<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent" >

    <com.xxx.demo.image.HackyViewPager
        android:id="@+id/pager"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:background="@color/black" />

    <TextView
        android:id="@+id/indicator"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_gravity="bottom"
        android:gravity="center"
        android:textSize="18sp"
        android:textColor="@android:color/white"
        android:text="@string/viewpager_indicator"
        android:background="@android:color/transparent" />

</FrameLayout>

5.图片显示Fragment

public class ImageDetailFragment extends Fragment {private String mImageUrl;
   private ImageView mImageView;
   private ProgressBar progressBar;
   private PhotoViewAttacher mAttacher;

   public static ImageDetailFragment newInstance(String imageUrl) {final ImageDetailFragment f = new ImageDetailFragment();

      final Bundle args = new Bundle();
      args.putString("url", imageUrl);
      f.setArguments(args);

      return f;
   }@Override
   public void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);
      mImageUrl = getArguments() != null ? getArguments().getString("url") : null;

   }@Override
   public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {final View v = inflater.inflate(R.layout.image_detail_fragment, container, false);
      mImageView = (ImageView) v.findViewById(R.id.image);
      mAttacher = new PhotoViewAttacher(mImageView);

      mAttacher.setOnPhotoTapListener(new OnPhotoTapListener() {//点击图片关闭当前activiy
         @Override
         public void onPhotoTap(View arg0, float arg1, float arg2) {getActivity().finish();
         }});

      progressBar = (ProgressBar) v.findViewById(R.id.loading);
      return v;
   }@Override
   public void onActivityCreated(Bundle savedInstanceState) {super.onActivityCreated(savedInstanceState);


      ImageLoader.getInstance().displayImage(mImageUrl, mImageView, new SimpleImageLoadingListener() {@Override
         public void onLoadingStarted(String imageUri, View view) {progressBar.setVisibility(View.VISIBLE);
         }@Override
         public void onLoadingFailed(String imageUri, View view, FailReason failReason) {String message = null;
            switch (failReason.getType()) {case IO_ERROR:message = "下载错误";
               break;
            case DECODING_ERROR:message = "图片无法显示";
               break;
            case NETWORK_DENIED:message = "网络有问题，无法下载";
               break;
            case OUT_OF_MEMORY:message = "图片太大无法显示";
               break;
            case UNKNOWN:message = "未知的错误";
               break;
            }Toast.makeText(getActivity(), message, Toast.LENGTH_SHORT).show();
            progressBar.setVisibility(View.GONE);
         }@Override
         public void onLoadingComplete(String imageUri, View view, Bitmap loadedImage) {progressBar.setVisibility(View.GONE);
            mAttacher.update();
         }});

   }}
布局文件

<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:background="@color/black"
    android:layout_height="match_parent" >

    <ImageView
        android:id="@+id/image"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:adjustViewBounds="true"
        android:contentDescription="@string/app_name"
        android:scaleType="centerCrop" />

    <ProgressBar
        android:id="@+id/loading"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center"
        android:visibility="gone" />

</FrameLayout>

这篇关于使用photoview+viewpager实现图片缩放切换（类似微信朋友圈图片查看）的文章就介绍到这儿，希望我们推荐的文章对编程师们有所帮助！


http://www.chinasem.cn/article/872017。

相关文章

C++中assign函数的使用

C++中assign函数的使用

《C++中assign函数的使用》在C++标准模板库中,std::list等容器都提供了assign成员函数,它比操作符更灵活,支持多种初始化方式,下面就来介绍一下assign的用法,具有一定的参考价... 目录​1.assign的基本功能​​语法​2. 具体用法示例​​​(1) 填充n个相同值​​(2)
阅读更多...
Spring StateMachine实现状态机使用示例详解

Spring StateMachine实现状态机使用示例详解

《SpringStateMachine实现状态机使用示例详解》本文介绍SpringStateMachine实现状态机的步骤,包括依赖导入、枚举定义、状态转移规则配置、上下文管理及服务调用示例,重点解... 目录什么是状态机使用示例什么是状态机状态机是计算机科学中的​​核心建模工具​​，用于描述对象在其生命
阅读更多...
Spring Boot 结合 WxJava 实现文章上传微信公众号草稿箱与群发

Spring Boot 结合 WxJava 实现文章上传微信公众号草稿箱与群发

《SpringBoot结合WxJava实现文章上传微信公众号草稿箱与群发》本文将详细介绍如何使用SpringBoot框架结合WxJava开发工具包,实现文章上传到微信公众号草稿箱以及群发功能,... 目录一、项目环境准备1.1 开发环境1.2 微信公众号准备二、Spring Boot 项目搭建2.1 创建
阅读更多...
IntelliJ IDEA2025创建SpringBoot项目的实现步骤

IntelliJ IDEA2025创建SpringBoot项目的实现步骤

《IntelliJIDEA2025创建SpringBoot项目的实现步骤》本文主要介绍了IntelliJIDEA2025创建SpringBoot项目的实现步骤,文中通过示例代码介绍的非常详细,对大家... 目录一、创建 Spring Boot 项目1. 新建项目2. 基础配置3. 选择依赖4. 生成项目5.
阅读更多...
使用Python删除Excel中的行列和单元格示例详解

使用Python删除Excel中的行列和单元格示例详解

《使用Python删除Excel中的行列和单元格示例详解》在处理Excel数据时,删除不需要的行、列或单元格是一项常见且必要的操作,本文将使用Python脚本实现对Excel表格的高效自动化处理,感兴... 目录开发环境准备使用 python 删除 Excphpel 表格中的行删除特定行删除空白行删除含指定
阅读更多...
深入理解Go语言中二维切片的使用

深入理解Go语言中二维切片的使用

《深入理解Go语言中二维切片的使用》本文深入讲解了Go语言中二维切片的概念与应用,用于表示矩阵、表格等二维数据结构,文中通过示例代码介绍的非常详细,需要的朋友们下面随着小编来一起学习学习吧... 目录引言二维切片的基本概念定义创建二维切片二维切片的操作访问元素修改元素遍历二维切片二维切片的动态调整追加行动态
阅读更多...
Linux下删除乱码文件和目录的实现方式

Linux下删除乱码文件和目录的实现方式

《Linux下删除乱码文件和目录的实现方式》：本文主要介绍Linux下删除乱码文件和目录的实现方式,具有很好的参考价值,希望对大家有所帮助,如有错误或未考虑完全的地方,望不吝赐教... 目录linux下删除乱码文件和目录方法1方法2总结Linux下删除乱码文件和目录方法1使用ls -i命令找到文件或目录
阅读更多...
prometheus如何使用pushgateway监控网路丢包

prometheus如何使用pushgateway监控网路丢包

《prometheus如何使用pushgateway监控网路丢包》：本文主要介绍prometheus如何使用pushgateway监控网路丢包问题,具有很好的参考价值,希望对大家有所帮助,如有错误... 目录监控网路丢包脚本数据图表总结监控网路丢包脚本[root@gtcq-gt-monitor-prome
阅读更多...
SpringBoot+EasyExcel实现自定义复杂样式导入导出

SpringBoot+EasyExcel实现自定义复杂样式导入导出

《SpringBoot+EasyExcel实现自定义复杂样式导入导出》这篇文章主要为大家详细介绍了SpringBoot如何结果EasyExcel实现自定义复杂样式导入导出功能,文中的示例代码讲解详细,... 目录安装处理自定义导出复杂场景1、列不固定，动态列2、动态下拉3、自定义锁定行/列，添加密码4、合并
阅读更多...
mybatis执行insert返回id实现详解

mybatis执行insert返回id实现详解

《mybatis执行insert返回id实现详解》MyBatis插入操作默认返回受影响行数,需通过useGeneratedKeys+keyProperty或selectKey获取主键ID,确保主键为自... 目录 两种方式获取自增 ID：1. ​​useGeneratedKeys+keyProperty（推
阅读更多...

Copyright China编程 23002807@qq.com

沪ICP备2023033072号-2
