今天，继续翻译我们的教程，这节讲的是第一个应用程序的快速启动（在项目中呈现一个地图）

Quickstart Application

Now that your environment is setup we can put together a simple Quickstart. This example will display a shapefile on screen.

1.Create the package org.geotools.tutorial.quickstart using your IDE.

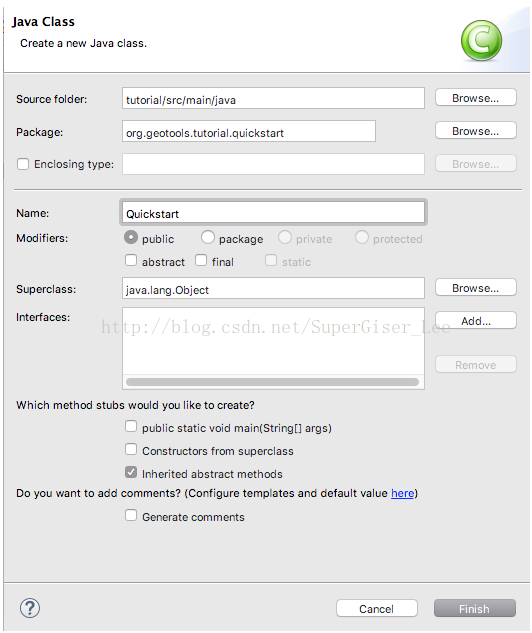

2.Create the org.geotools.tutorial.quickstart.Quickstart class using your IDE.

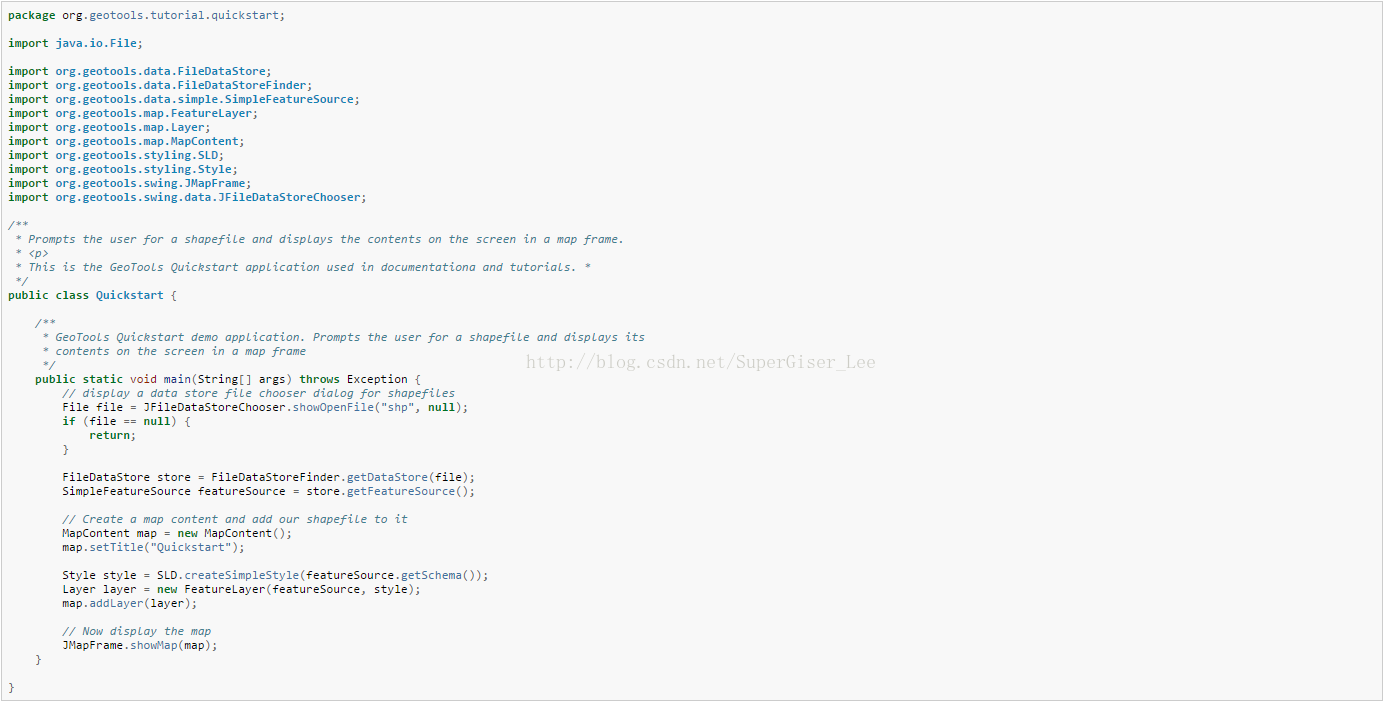

3.Fill in the following code:

1. We need to download some sample data to work with. Thehttp://www.naturalearthdata.com/ project is a great project supported by the North American Cartographic Information Society. Head to the link below and download some cultural vectors. You can use the 'Download all 50m cultural themes' at top.

1:50m Cultural Vectors

Please unzip the above data into a location you can find eaily such as the desktop.

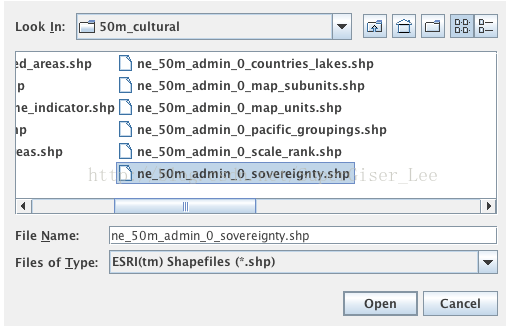

2.Run the application to open a file chooser. Choose a shapefile from the example dataset.

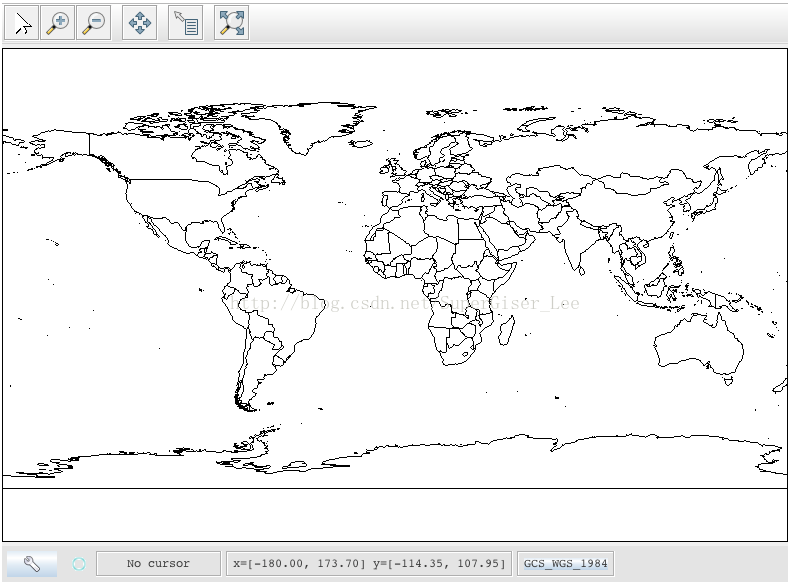

3. The application will connect to your shapefile, produce a map content, and display the shapefile.

4. A couple of things to note about the code example:

The shapefile is not loaded into memory - instead it is read from disk each and every time it is needed This approach allows you to work with data sets larger than available memory.
We are using a very basic display style here that just shows feature outlines. In the examples that follow we will see how to specify more sophisticated styles

快速启动应用程序

现在您的环境已经设置好了，我们来进行一个快速开始的项目，这个例子中，我们会在屏幕上显示出一个shapefile图形。

1、使用您的IDE创建一个叫 org.geotools.tutorial.quickstart 的包。

2、再用您的IDE创建一个叫 org.geotools.tutorial.quickstart.Quickstart 的类。

3.补全如下代码：

1、为了方便使用，我们需要下载一些样例代码。 http://www.naturalearthdata.com/ 此网址中的这个项目是由北美制图信息学会主持的一个大规模工程。请到下面的链接下载一些以文化为主题的矢量专题图，您可以选择顶部的“下载全部50米像元文化专题图”（“Download all 50m cultural themes” ）下载链接如下：
