Android NDK初步涉猎

本文主要是介绍Android NDK初步涉猎，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

大致分是这几步：

（1）新建Android工程：



HelloJni.java代码

package com.panpass.main;public class HelloJni {static{System.loadLibrary("demo-jni");}public void sayHello(){}public native String jniSay();}

MainActivity.java代码

package com.panpass.main;import android.app.Activity;
import android.os.Bundle;
import android.widget.TextView;import com.example.demo.R;public class MainActivity extends Activity {private TextView mTextView;@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.main_activity);mTextView = (TextView) findViewById(R.id.text_view);HelloJni demojin = new HelloJni();mTextView.setText(demojin.jniSay());}}

（2）生成头文件。

在cmd中进入相应的目录下：

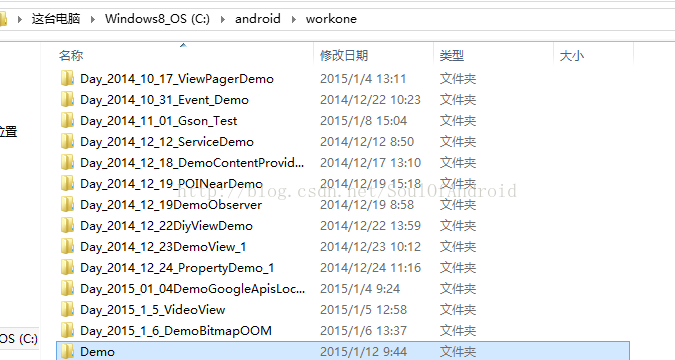

例如我的工程在这里：

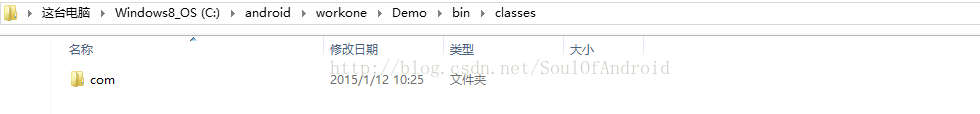

最终是进入到这里：

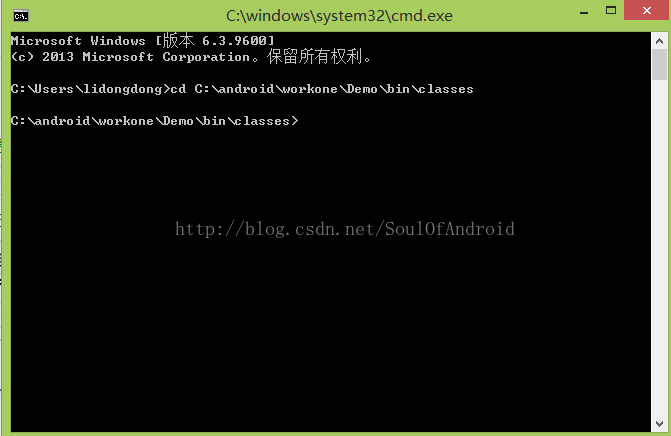

也就是打开cmd后输入命令：

cd  C:\android\workone\Demo\bin\classes

接着输入：javah  -jni com.panpass.main.HelloJni

就会生成.h文件。

（3）新建jni文件。



demo-jni.c就是c层函数的具体实现。如下：

/** Copyright (C) 2009 The Android Open Source Project** Licensed under the Apache License, Version 2.0 (the "License");* you may not use this file except in compliance with the License.* You may obtain a copy of the License at**      http://www.apache.org/licenses/LICENSE-2.0** Unless required by applicable law or agreed to in writing, software* distributed under the License is distributed on an "AS IS" BASIS,* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.* See the License for the specific language governing permissions and* limitations under the License.**/
#include <string.h>
#include <jni.h>/* This is a trivial JNI example where we use a native method* to return a new VM String. See the corresponding Java source* file located at:**   apps/samples/hello-jni/project/src/com/example/hellojni/HelloJni.java*/
jstring
Java_com_panpass_main_HelloJni_jniSay( JNIEnv* env,jobject thiz)
{return (*env)->NewStringUTF(env, "hello jni");
}

其中的

Java_com_panpass_main_HelloJni_jniSay( JNIEnv* env,jobject thiz)

就是从生成的.h文件中来的。看生成的.h文件：

/* DO NOT EDIT THIS FILE - it is machine generated */
#include <jni.h>
/* Header for class com_panpass_main_HelloJni */#ifndef _Included_com_panpass_main_HelloJni
#define _Included_com_panpass_main_HelloJni
#ifdef __cplusplus
extern "C" {
#endif
/** Class:     com_panpass_main_HelloJni* Method:    haveReturnFromJni* Signature: (Ljava/lang/String;)Ljava/lang/String;*/
JNIEXPORT jstring JNICALL Java_com_panpass_main_HelloJni_haveReturnFromJni(JNIEnv *, jobject, jstring);/** Class:     com_panpass_main_HelloJni* Method:    jniSay* Signature: ()Ljava/lang/String;*/
JNIEXPORT jstring JNICALL Java_com_panpass_main_HelloJni_jniSay(JNIEnv *, jobject);#ifdef __cplusplus
}
#endif
#endif

Android.mk代码如下：

# Copyright (C) 2009 The Android Open Source Project
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#      http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#
LOCAL_PATH := $(call my-dir)include $(CLEAR_VARS)LOCAL_MODULE    := demo-jni
LOCAL_SRC_FILES := demo-jni.cinclude $(BUILD_SHARED_LIBRARY)

具体意思可以baidu。

（4）下载ndk使用ndk生成.so库。

ndk下载去百度。

配置ndk环境变量：

其中NDK：

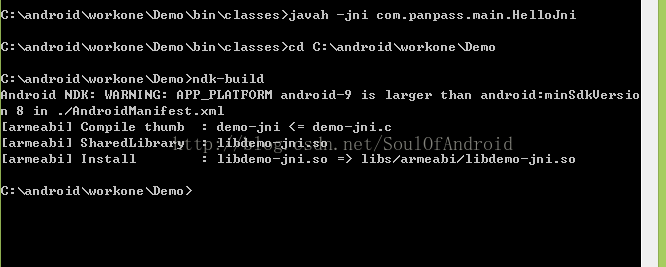

在cmd中进入工程根目录：

接着执行：

ndk-build

刷新工程你就会发现：

多了libs和obj

最后运行，OK。
