虚拟机但无法power on报：Failed to establish transport connection (9)

本文主要是介绍虚拟机但无法power on报：Failed to establish transport connection (9)，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

问题描述

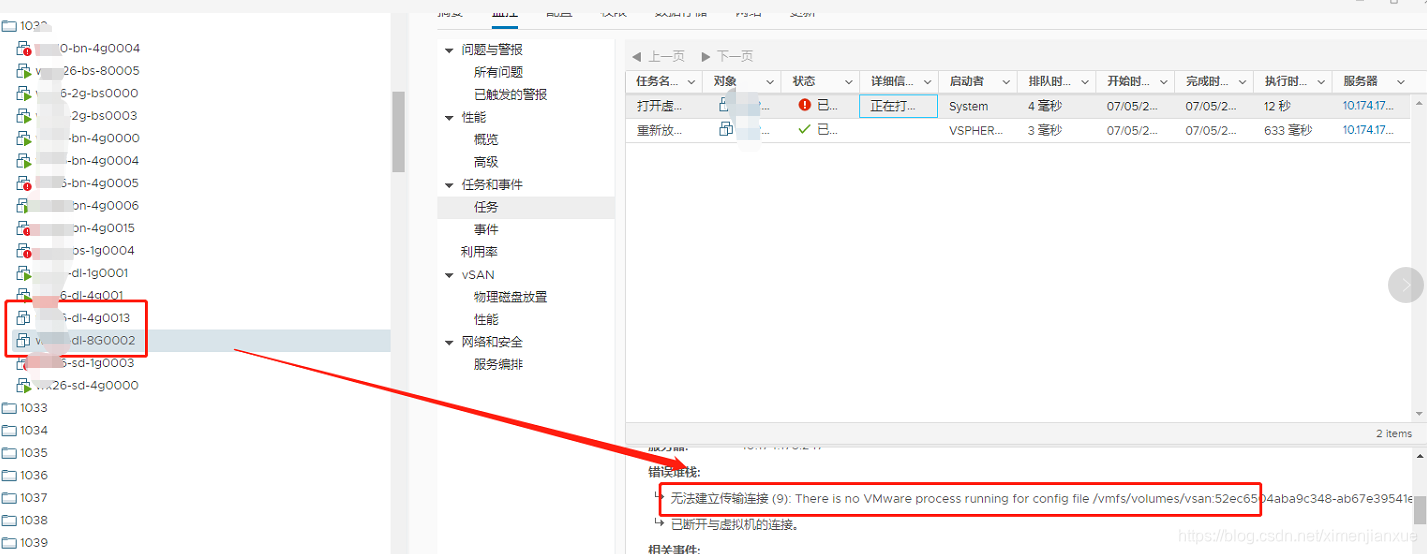

在Horizon GPU资源池，强反映某桌面虚拟机无法进行开机，报：已断开与虚拟机的连接(“Disconnected from virtual machine.”)，无法建立传输连接（9）(Failed to establish transport connection (9))：there is no VMware process running for config file /vmx/volume/vsan:xxx.vmx
在这里插入图片描述

在这里插入图片描述
另外迁移所涉vm到群集的其他主机，显示已完成重新放置虚拟机，但是vc页面虚拟机显示主机地址还是原先主机IP。

二、分析处理

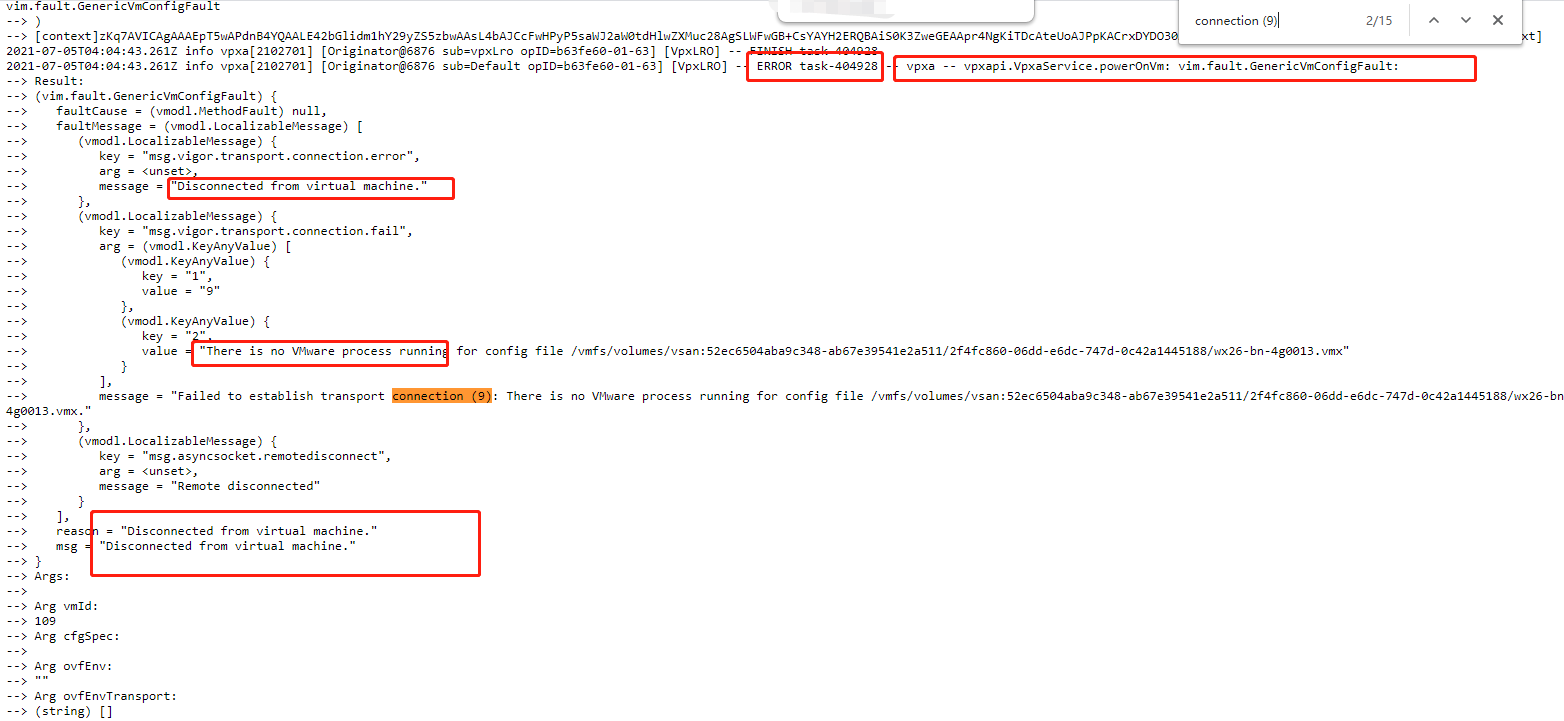

2.1、查看vm所在主机的vpxa.log日志：
在这里插入图片描述
日志内容类似如下：

2021-07-05T13:59:33.536Z info vpxd[7F609C958700] [Originator@6876 sub=Default opID=4a20be67] [VpxLRO] -- ERROR task-519360 -- vm-16985 -- vim.VirtualMachine.powerOn: vim.fault.GenericVmConfigFault:
--> Result:
--> (vim.fault.GenericVmConfigFault) {
-->    faultCause = (vmodl.MethodFault) null,
-->    faultMessage = (vmodl.LocalizableMessage) [
-->       (vmodl.LocalizableMessage) {
-->          key = "msg.vigor.transport.connection.error",
-->          arg = ,
-->          message = "Disconnected from virtual machine."
-->       },
-->       (vmodl.LocalizableMessage) {
-->          key = "msg.vigor.transport.connection.fail",
-->          arg = (vmodl.KeyAnyValue) [
-->             (vmodl.KeyAnyValue) {
-->                key = "1",
-->                value = "9"
-->             },
-->             (vmodl.KeyAnyValue) {
-->                key = "2",
-->                value = "There is no VMware_test process running for config file /vmfs/volumes/vsan:5262e56b243ed0b1-fbadb4f39d648c18/2c4b515c-b81b-aeae-f87c-98f2b3240a48/VMware_test.vmx"
-->             }
-->          ],
-->          message = "Failed to establish transport connection (9): There is no VMware_test process running for config file /vmfs/volumes/vsan:5262e56b243ed0b1-fbadb4f39d648c18/2c4b515c-b81b-aeae-f87c-98f2b3240a48/VMware_test.vmx."
-->       },
-->       (vmodl.LocalizableMessage) {
-->          key = "msg.asyncsocket.remotedisconnect",
-->          arg = ,
-->          message = "Remote disconnected"
-->       },
-->       (vmodl.LocalizableMessage) {
-->          key = "vpxd.vm.poweron.unexpectedfailure",
-->          arg = (vmodl.KeyAnyValue) [
-->             (vmodl.KeyAnyValue) {
-->                key = "1",
-->                value = "VMware_test"
-->             }
-->          ],
-->          message = "An unexpected error was received from the ESX host while powering on VM VMware_test."
-->       }
-->    ],
-->    reason = "Disconnected from virtual machine."
-->    msg = "Disconnected from virtual machine."
