%  无迹Kalman滤波在目标跟踪中的应用
%  详细原理介绍及中文注释请参考：
%  《卡尔曼滤波原理及应用-MATLAB仿真》，电子工业出版社，黄小平著。
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
function UKF
clc;clear;
T=1;
N=60/T;
X=zeros(4,N); % 此处有误，请修改为P108页一致即可运行
X(:,1)=[-100,2,200,20];
Z=zeros(1,N);
delta_w=1e-3;
Q=delta_w*diag([0.5,1]) ;
G=[T^2/2,0;T,0;0,T^2/2;0,T];
R=5;
F=[1,T,0,0;0,1,0,0;0,0,1,T;0,0,0,1];
x0=200;
y0=300;
Xstation=[x0,y0];
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
w=sqrtm(R)*randn(1,N);
for t=2:NX(:,t)=F*X(:,t-1)+G*sqrtm(Q)*randn(2,1);
end
for t=1:NZ(t)=Dist(X(:,t),Xstation)+w(t);
end
L=4;
alpha=1;
kalpha=0;
belta=2;
ramda=3-L;
for j=1:2*L+1Wm(j)=1/(2*(L+ramda));Wc(j)=1/(2*(L+ramda));
end
Wm(1)=ramda/(L+ramda);
Wc(1)=ramda/(L+ramda)+1-alpha^2+belta;
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
Xukf=zeros(4,N);
Xukf(:,1)=X(:,1);
P0=eye(4);
for t=2:Nxestimate= Xukf(:,t-1);P=P0;cho=(chol(P*(L+ramda)))';for k=1:LxgamaP1(:,k)=xestimate+cho(:,k);xgamaP2(:,k)=xestimate-cho(:,k);endXsigma=[xestimate,xgamaP1,xgamaP2];Xsigmapre=F*Xsigma;Xpred=zeros(4,1);for k=1:2*L+1Xpred=Xpred+Wm(k)*Xsigmapre(:,k);endPpred=zeros(4,4);for k=1:2*L+1Ppred=Ppred+Wc(k)*(Xsigmapre(:,k)-Xpred)*(Xsigmapre(:,k)-Xpred)';endPpred=Ppred+G*Q*G';chor=(chol((L+ramda)*Ppred))';for k=1:LXaugsigmaP1(:,k)=Xpred+chor(:,k);XaugsigmaP2(:,k)=Xpred-chor(:,k);endXaugsigma=[Xpred XaugsigmaP1 XaugsigmaP2];for k=1:2*L+1Zsigmapre(1,k)=hfun(Xaugsigma(:,k),Xstation);endZpred=0;for k=1:2*L+1Zpred=Zpred+Wm(k)*Zsigmapre(1,k);endPzz=0;for k=1:2*L+1Pzz=Pzz+Wc(k)*(Zsigmapre(1,k)-Zpred)*(Zsigmapre(1,k)-Zpred)';endPzz=Pzz+R;Pxz=zeros(4,1);for k=1:2*L+1Pxz=Pxz+Wc(k)*(Xaugsigma(:,k)-Xpred)*(Zsigmapre(1,k)-Zpred)';endK=Pxz*inv(Pzz);xestimate=Xpred+K*(Z(t)-Zpred);P=Ppred-K*Pzz*K';P0=P;Xukf(:,t)=xestimate;
end
for i=1:NErr_KalmanFilter(i)=Dist(X(:,i),Xukf(:,i));
end
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
figure
hold on;box on;
plot(X(1,:),X(3,:),'-k.');
plot(Xukf(1,:),Xukf(3,:),'-r+');
legend('真实轨迹','UKF轨迹')
figure
hold on; box on;
plot(Err_KalmanFilter,'-ks','MarkerFace','r')
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
function d=Dist(X1,X2)
if length(X2)<=2d=sqrt( (X1(1)-X2(1))^2 + (X1(3)-X2(2))^2 );
elsed=sqrt( (X1(1)-X2(1))^2 + (X1(3)-X2(3))^2 );
end
function [y]=hfun(x,xx)
y=sqrt((x(1)-xx(1))^2+(x(3)-xx(2))^2);
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

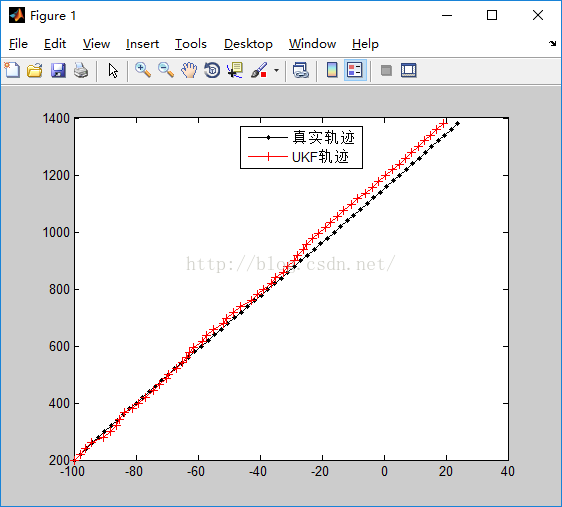

结果：
