微服务网关SIA-GateWay安全认证使用文档

安全认证流程

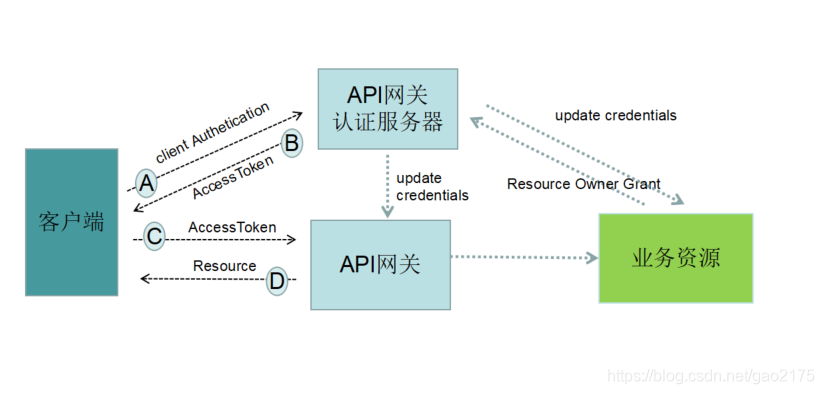

下图是网关基本安全认证流程图，主要涉及API网关认证服务器、API网关和客户端及业务资源。业务资源方需要事先绑定网关安全认证服务组件，并通过路由安全认证模块设置安全口令，才能使安全认证在路由资源生效。

路由资源管理安全码设置

路由资源Owner需要在网关设置一个安全口令及安全口令的有效时间，然后在【组件管理】->【安全认证】中绑定路由与安全认证服务即可实现路由的安全认证服务。

安全认证客户端代码示例

/*** 封装OAuth Server端认证需要的参数*/
public class ClientParams {public static final String CLIENT_ID = "gantrygw-book-test2"; // 应用id CLIENT_IDpublic static final String CLIENT_SECRET = "123456"; // 应用secret CLIENT_SECRETpublic static final String OAUTH_SERVER_TOKEN_URL = "http://localhost:8090/oauth/token"; // ACCESS_TOKEN换取地址public static final String OAUTH_SERVER_REDIRECT_URI = "http://notes.coding.me"; // 回调地址public static final String OAUTH_SERVICE_API = "http://localhost:8080/book2/checked-out"; // 测试开放数据api}

public class OauthClient {private static final Logger LOGGER = LoggerFactory.getLogger(OauthClient.class);public static void main(String[] args) throws Exception {getResource(makeTokenRequestWithAuthCode().getAccessToken());}/**** @param* @return* @throws OAuthProblemException* @throws OAuthSystemException*/private static OAuthAccessTokenResponse makeTokenRequestWithAuthCode() throws OAuthProblemException, OAuthSystemException {OAuthClientRequest request = OAuthClientRequest.tokenLocation(ClientParams.OAUTH_SERVER_TOKEN_URL).setClientId(ClientParams.CLIENT_ID).setClientSecret(ClientParams.CLIENT_SECRET).setGrantType(GrantType.CLIENT_CREDENTIALS).buildBodyMessage();OAuthClient oAuthClient = new OAuthClient(new URLConnectionClient());OAuthAccessTokenResponse oauthResponse = oAuthClient.accessToken(request);return oauthResponse;}private static void getResource(String token) throws OAuthSystemException, OAuthProblemException {CloseableHttpClient client = HttpClients.createDefault();HttpPost post = new HttpPost(ClientParams.OAUTH_SERVICE_API);post.addHeader("Authorization",token);String responseContent = null; // 响应内容CloseableHttpResponse response = null;try {response = client.execute(post);System.out.println(JSONHelper.toString(response));if (response.getStatusLine().getStatusCode() == 200) {HttpEntity entity = response.getEntity();responseContent = EntityUtils.toString(entity, "UTF-8");}if (response != null)response.close();if (client != null)client.close();LOGGER.info("responseContent:" + responseContent);} catch(ClientProtocolException e) {LOGGER.info(e.getMessage());} catch(IOException e) {LOGGER.info(e.getMessage());}}}

Demo工程代码实例

sia-gateway-admin工程测试用例：OauthClient.java

SIA相关开源产品链接

• 微服务任务调度框架 ：https://github.com/siaorg/sia-task
• 微服务路由网关 ：https://github.com/siaorg/sia-gateway
• Rabbitmq队列服务PLUS：https://github.com/siaorg/sia-rabbitmq-plus
