本文主要是介绍threejs 自定义材质 熔浆，云雾效果，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

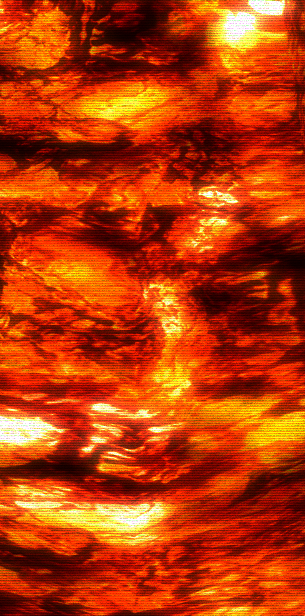

效果如下：
它其实就是使用了两种图片在着色器中经过拉伸，扭曲得到的效果；
需要两张图片：
上面那种云雾的很重要，它可以勉去在着色器中随机的运算，
代码如下：
<!DOCTYPE html>
<html lang="en">
<head><title>three.js shader教程</title><meta charset="utf-8"><meta name="viewport" content="width=device-width, user-scalable=no, minimum-scale=1.0, maximum-scale=1.0"><style>body {color: #ffffff;font-family: Monospace;font-size: 13px;text-align: center;font-weight: bold;background-color: #000000;margin: 0px;overflow: hidden;}#info {position: absolute;top: 0px;width: 100%;padding: 5px;}a {color: #ffffff;}#oldie a {color: #da0}</style>
</head>
<body><div id="container"></div>
<div id="info">WebGL中文网，学习加群：331962041</div><script src="js/three.js"></script><script src="js/shaders/ConvolutionShader.js"></script>
<script src="js/shaders/CopyShader.js"></script>
<script src="js/shaders/FilmShader.js"></script><script src="js/postprocessing/EffectComposer.js"></script>
<script src="js/postprocessing/ShaderPass.js"></script>
<script src="js/postprocessing/MaskPass.js"></script>
<script src="js/postprocessing/RenderPass.js"></script>
<script src="js/postprocessing/BloomPass.js"></script>
<script src="js/postprocessing/FilmPass.js"></script><script src="js/Detector.js"></script>
<script src="js/libs/stats.min.js"></script><script id="fragmentShader" type="x-shader/x-fragment">uniform float time;uniform vec2 resolution;uniform float fogDensity;uniform vec3 fogColor;uniform sampler2D texture1;uniform sampler2D texture2;varying vec2 vUv;void main( void ) {vec2 position = -1.0 + 2.0 * vUv;//转化成平面格式（-1到1）vec4 noise = texture2D( texture1, vUv );//取纹理像素点（纹理设置的是重复纹理）vec2 T1 = vUv + vec2( 1.5, -1.5 ) * time * 0.02;//噪音图流动基础uv(流动方向右下角至左上角)vec2 T2 = vUv + vec2( -0.5, 2.0 ) * time * 0.01; //纹理图流动基础uv(流动方向左上角到右下角)//使噪音低采样坐标放大缩小T1.x += noise.x * 2.0;T1.y += noise.y * 2.0;T2.x -= noise.y * 0.2;T2.y += noise.z * 0.2;float p = texture2D( texture1, T1 * 2.0 ).a;//随机好的uv坐标缩小成4格，采样透明通道用于混合流动vec4 color = texture2D( texture2, T2 * 2.0 );//片元（随机好的uv坐标采样）//混合颜色（相同透明度下，color越小，越明；透明度越大，越明，就是color各个分量越大）vec4 temp = color * ( vec4( p, p, p, p ) * 2.0 ) + ( color * color - 0.1 );//混合颜色大于1时处理if( temp.r > 1.0 ){ temp.bg += clamp( temp.r - 2.0, 0.0, 100.0 ); }if( temp.g > 1.0 ){ temp.rb += temp.g - 1.0; }if( temp.b > 1.0 ){ temp.rg += temp.b - 1.0; }gl_FragColor = temp;float depth = gl_FragCoord.z / gl_FragCoord.w;//获取深度const float LOG2 = 1.442695;//雾的密度计算（它范围时0到1之间）float fogFactor = exp2( - fogDensity * fogDensity * depth * depth * LOG2 );//雾的颜色计算，并归一化；fogFactor = 1.0 - clamp( fogFactor, 0.0, 1.0 );//返回线性混合gl_FragColor = mix( gl_FragColor, vec4( fogColor, gl_FragColor.w ), fogFactor );}}</script><script id="vertexShader" type="x-shader/x-vertex">uniform vec2 uvScale;varying vec2 vUv;void main(){vUv = uvScale * uv;vec4 mvPosition = modelViewMatrix * vec4( position, 1.0 );gl_Position = projectionMatrix * mvPosition;}</script><script>if (!Detector.webgl) Detector.addGetWebGLMessage();var container, stats;var clock = new THREE.Clock();var camera, scene, renderer, composer;var uniforms, material, mesh;var mouseX = 0, mouseY = 0,lat = 0, lon = 0, phy = 0, theta = 0;var width = window.innerWidth || 2;var height = window.innerHeight || 2;var windowHalfX = width / 2;var windowHalfY = height / 2;init();animate();function init() {container = document.getElementById('container');camera = new THREE.PerspectiveCamera(35, windowHalfX / windowHalfY, 1, 3000);camera.position.z = 4;scene = new THREE.Scene();uniforms = {fogDensity: {type: "f", value: 0.45},//雾的密度fogColor: {type: "v3", value: new THREE.Vector3(0, 0, 0)},//雾的颜色time: {type: "f", value: 1.0},resolution: {type: "v2", value: new THREE.Vector2()},//分辨uvScale: {type: "v2", value: new THREE.Vector2(1.0, 1.0)},//uv 缩放texture1: {type: "t", value: THREE.ImageUtils.loadTexture("lava/cloud.png")},//云texture2: {type: "t", value: THREE.ImageUtils.loadTexture("lava/lavatile.jpg")}//熔浆};uniforms.texture1.value.wrapS = uniforms.texture1.value.wrapT = THREE.RepeatWrapping;uniforms.texture2.value.wrapS = uniforms.texture2.value.wrapT = THREE.RepeatWrapping;var size = 0.65;material = new THREE.ShaderMaterial({uniforms: uniforms,vertexShader: document.getElementById('vertexShader').textContent,fragmentShader: document.getElementById('fragmentShader').textContent});mesh = new THREE.Mesh(new THREE.CylinderGeometry(0.51, 1, 2), material);//mesh = new THREE.Mesh( new THREE.PlaneGeometry( 2,1), material );//mesh = new THREE.Mesh( new THREE.TorusGeometry( size, 0.3, 30, 30 ), material );mesh.rotation.x = 0.3;scene.add(mesh);//renderer = new THREE.WebGLRenderer({antialias: true});container.appendChild(renderer.domElement);renderer.autoClear = false;//stats = new Stats();stats.domElement.style.position = 'absolute';stats.domElement.style.top = '0px';//container.appendChild( stats.domElement );//var renderModel = new THREE.RenderPass(scene, camera);var effectBloom = new THREE.BloomPass(1.25);var effectFilm = new THREE.FilmPass(0.35, 0.95, 2048, false);effectFilm.renderToScreen = true;composer = new THREE.EffectComposer(renderer);composer.addPass(renderModel);composer.addPass(effectBloom);composer.addPass(effectFilm);//onWindowResize();window.addEventListener('resize', onWindowResize, false);}function onWindowResize(event) {uniforms.resolution.value.x = window.innerWidth;uniforms.resolution.value.y = window.innerHeight;renderer.setSize(window.innerWidth, window.innerHeight);camera.aspect = window.innerWidth / window.innerHeight;camera.updateProjectionMatrix();composer.reset();}//function animate() {requestAnimationFrame(animate);render();stats.update();}function render() {var delta = 5 * clock.getDelta();uniforms.time.value += 0.2 * delta;/* mesh.rotation.y += 0.0125 * delta;mesh.rotation.x += 0.05 * delta;*/renderer.clear();composer.render(0.01);
// renderer.render( scene, camera );}</script></body>
</html>
不要考虑后期处理与它没有关系；
把低图换成白色的，就可以得到云雾效果；
函数：
exp2 表示以2位低的指数；而上面它是负半轴上，所以区间就为0到1；
clamp（a,min,max） 表示a 在min到max区间，如果a小于最小的min,返回min，如果大于max，返回max，在两者之间，返回本身
