如何在群晖NAS上配置Perforce服务器并与本地虚幻引擎整合作为版本控制工具（二）配置整合篇

修改密码

打开P4Admin

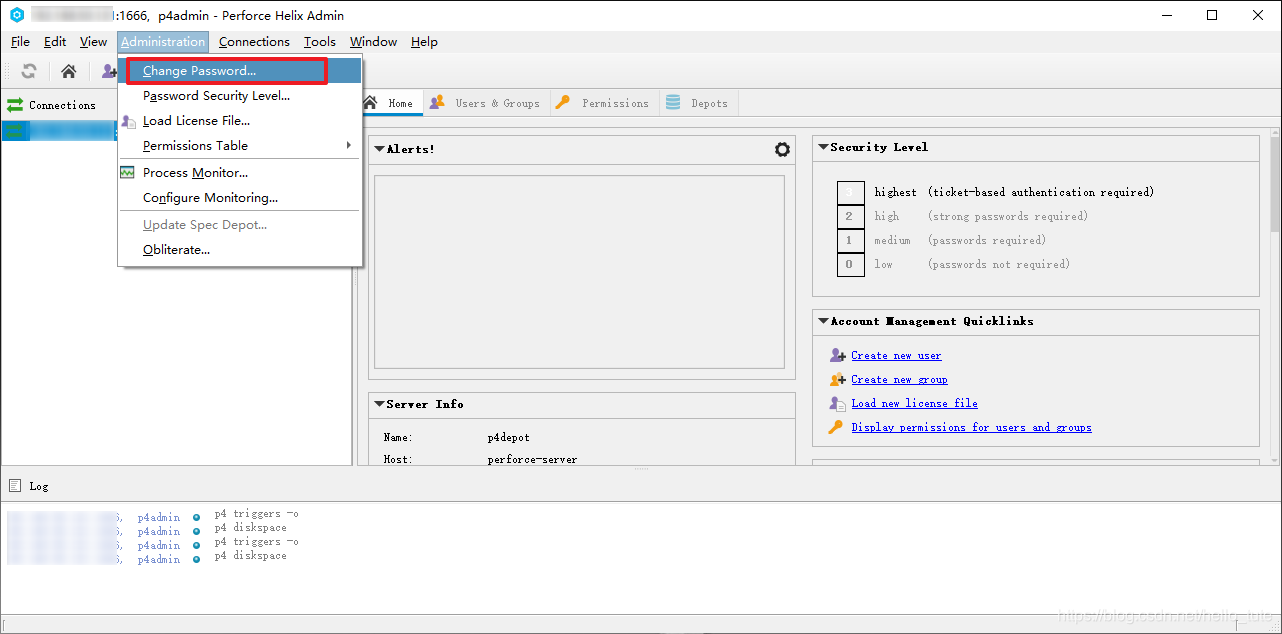

在Administraction>Change Password中修改密码

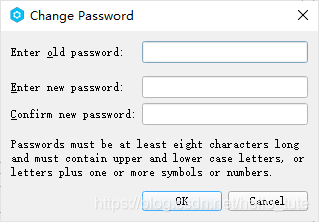

密码要求：

• 至少8位
• 包含大小写
• 以及至少一个特殊字符

新建用户

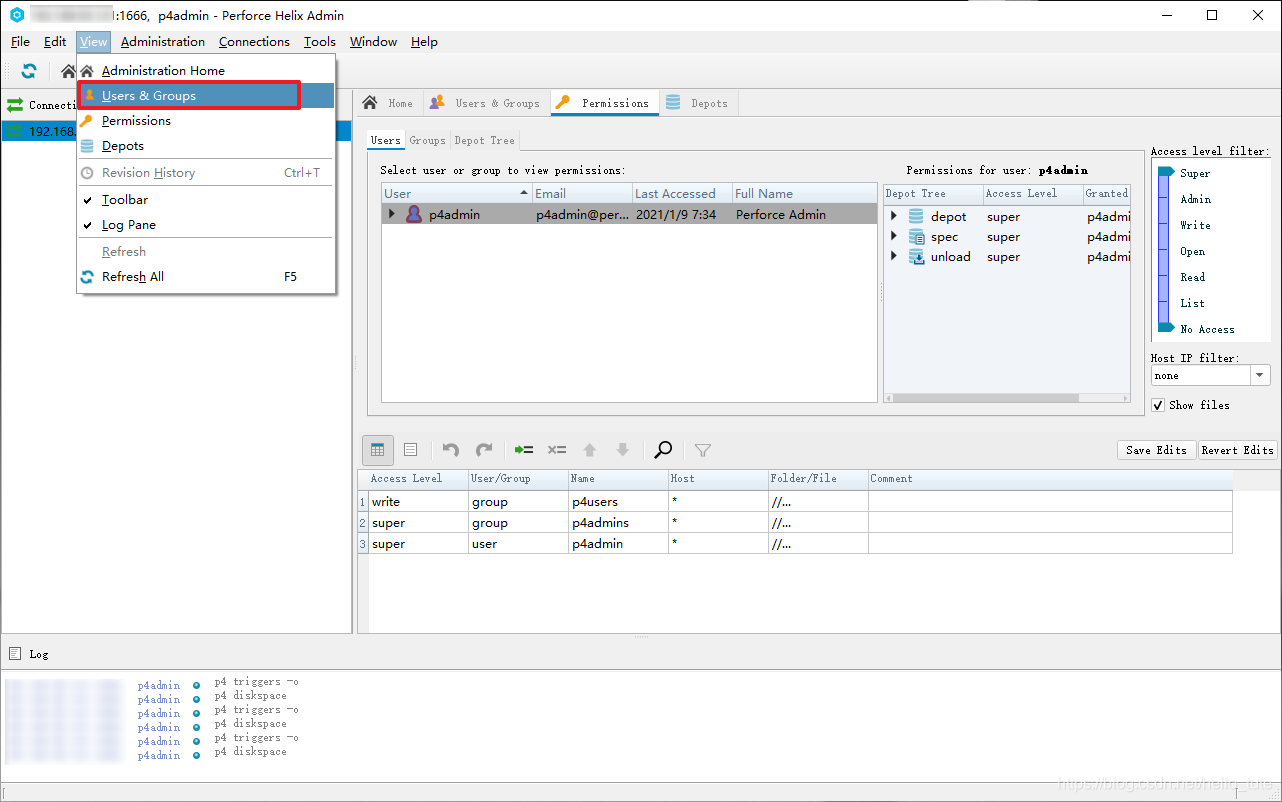

依然是在P4Admin中进行

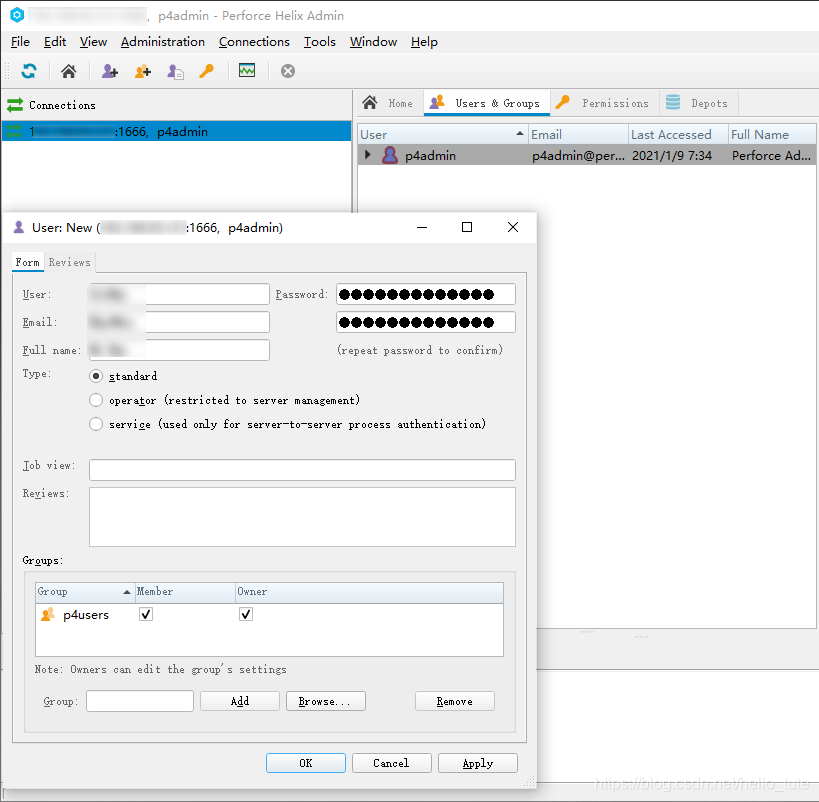

设置用户信息以及所属组

这样我们就拥有新的用户了

新建Workspace

什么是Workspace
Perforce中的Workspace可以理解为项目资源的一个本地拷贝

打开P4V

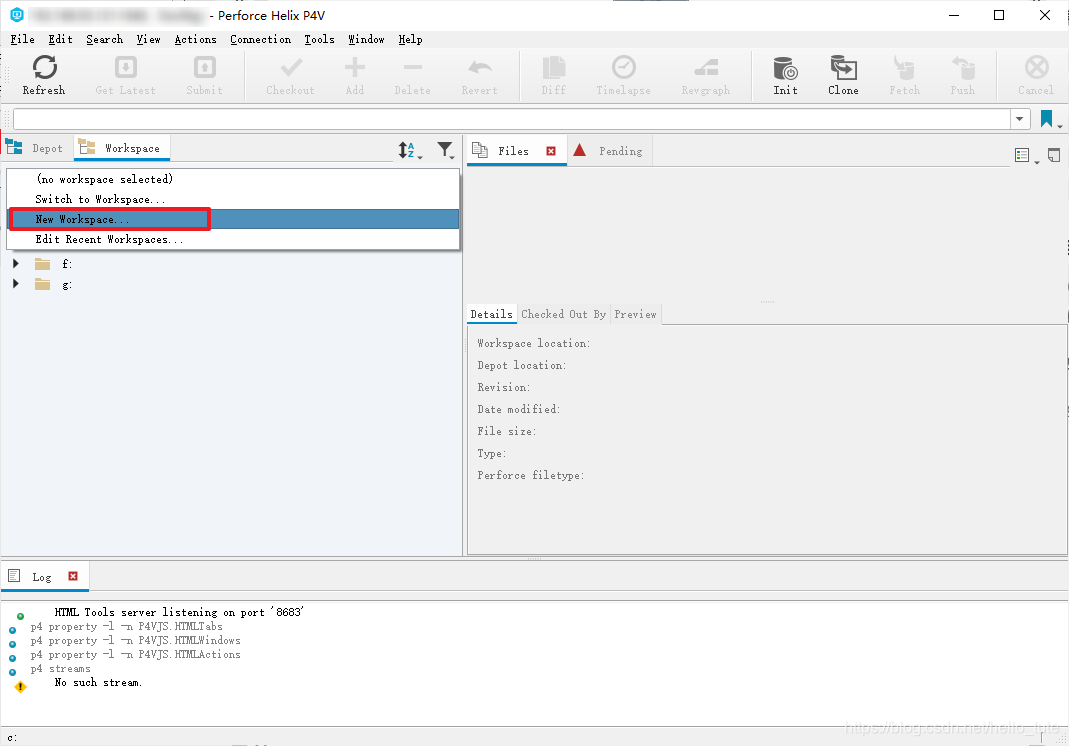

点击New Workspace

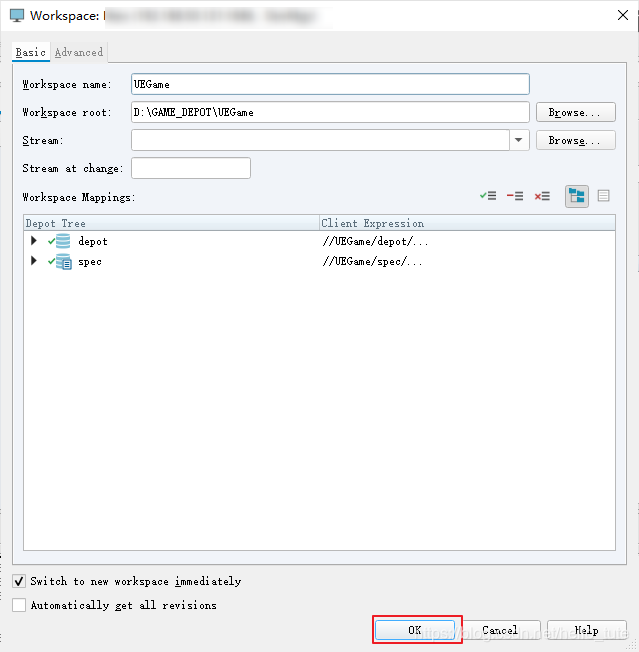

设置workspace的名称和根目录

根据需要进行Advanced设置，然后点击OK

这时会弹出一个添加文件向导，不需要的话直接点Cancel就可以

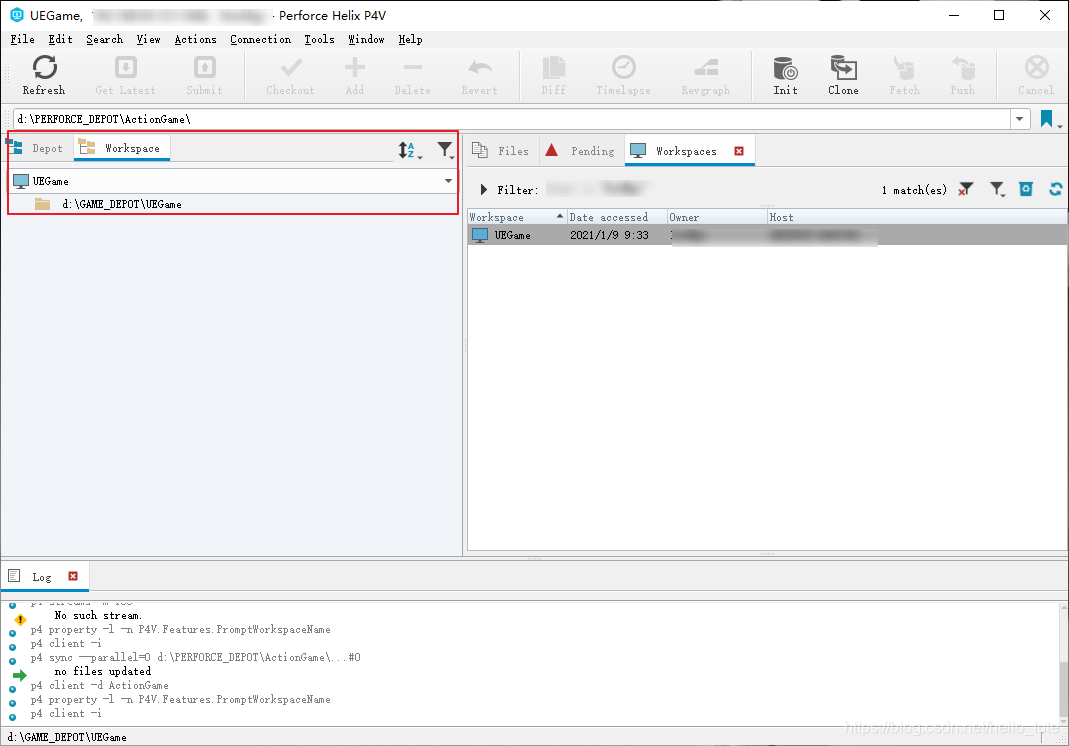

这时我们在P4V中就可以看到刚刚创建的名为UEGame的workspace了

设置Perforce的文件类型映射（Type Map）

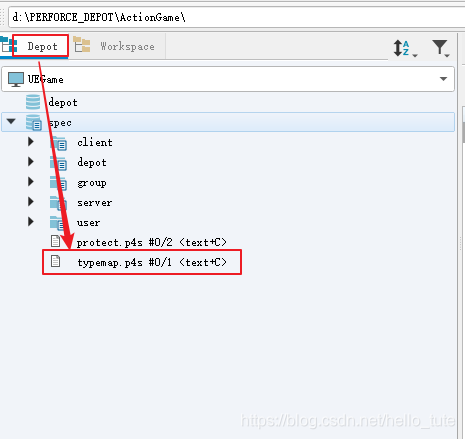

切换到Depot标签在spec下面的"typemap.p4s"就是文件类型映射文件

这个spec文件夹是workspace配置文件所在的目录

这个步骤非常重要，可以说是Perforce的精髓，它就是要告诉Perforce那些文件是文本类型哪些是二进制类型

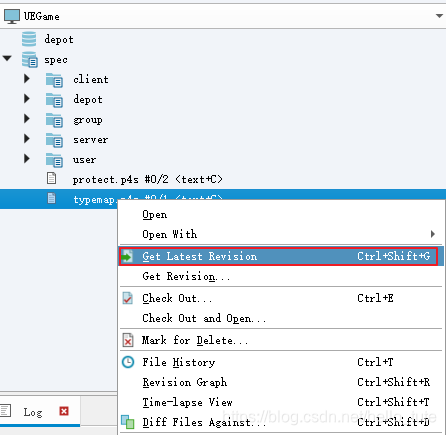

现在"typemap.p4s"上右键获取最新版本，把它从服务器端拉取到本地

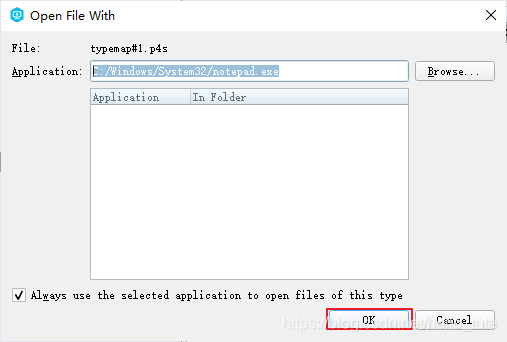

然后双击它用记事本打开

C:/Windows/System32/notepad.exe

"typemap.p4s"默认的内容

# The form data below was edited by p4admin
# Perforce File Type Mapping Specifications.
#
#  TypeMap:	a list of filetype mappings; one per line.
#		Each line has two elements:
#
#  		Filetype: The filetype to use on 'p4 add'.
#
#  		Path:     File pattern which will use this filetype.
#
# See 'p4 help typemap' for more information.TypeMap:text //....asptext //....cnftext //....csstext //....htmtext //....htmltext //....inctext //....jstext+w //....logtext+w //....initext+w //....pdmbinary+Fl //....zipbinary+Fl //....bz2binary+Fl //....rarbinary+Fl //....gzbinary+Fl //....avibinary+Fl //....jpgbinary+Fl //....jpegbinary+Fl //....mpgbinary+Fl //....gifbinary+Fl //....tifbinary+Fl //....movbinary+Fl //....jarbinary+l //....icobinary+l //....expbinary+l //....btrbinary+l //....bmpbinary+l //....docbinary+l //....dotbinary+l //....xlsbinary+l //....pptbinary+l //....pdfbinary+l //....tarbinary+l //....exebinary+l //....dllbinary+l //....libbinary+l //....binbinary+l //....classbinary+l //....warbinary+l //....earbinary+l //....sobinary+l //....rptbinary+l //....cfmbinary+l //....mabinary+l //....mbbinary+l //....pacbinary+l //....m4abinary+l //....mp4binary+l //....aacbinary+l //....wmabinary+l //....docxbinary+l //....pptxbinary+l //....xlsxbinary+l //....pngbinary+l //....rawbinary+l //....odtbinary+l //....odsbinary+l //....odgbinary+l //....odpbinary+l //....otgbinary+l //....otsbinary+l //....ottbinary+l //....psdbinary+l //....sxw

我们要把针对虚幻的设置添加进去

	binary+S2w //....exebinary+S2w //....dllbinary+S2w //....libbinary+S2w //....appbinary+S2w //....dylibbinary+S2w //....stubbinary+S2w //....ipabinary //....bmptext //....initext //....configtext //....cpptext //....htext //....ctext //....cstext //....mtext //....mmtext //....pybinary+l //....uassetbinary+l //....umapbinary+l //....upkbinary+l //....udk

添加完毕的样子

# The form data below was edited by p4admin
# Perforce File Type Mapping Specifications.
#
#  TypeMap:	a list of filetype mappings; one per line.
#		Each line has two elements:
#
#  		Filetype: The filetype to use on 'p4 add'.
#
#  		Path:     File pattern which will use this filetype.
#
# See 'p4 help typemap' for more information.TypeMap:text //....asptext //....cnftext //....csstext //....htmtext //....htmltext //....inctext //....jstext+w //....logtext+w //....initext+w //....pdmbinary+Fl //....zipbinary+Fl //....bz2binary+Fl //....rarbinary+Fl //....gzbinary+Fl //....avibinary+Fl //....jpgbinary+Fl //....jpegbinary+Fl //....mpgbinary+Fl //....gifbinary+Fl //....tifbinary+Fl //....movbinary+Fl //....jarbinary+l //....icobinary+l //....expbinary+l //....btrbinary+l //....bmpbinary+l //....docbinary+l //....dotbinary+l //....xlsbinary+l //....pptbinary+l //....pdfbinary+l //....tarbinary+l //....exebinary+l //....dllbinary+l //....libbinary+l //....binbinary+l //....classbinary+l //....warbinary+l //....earbinary+l //....sobinary+l //....rptbinary+l //....cfmbinary+l //....mabinary+l //....mbbinary+l //....pacbinary+l //....m4abinary+l //....mp4binary+l //....aacbinary+l //....wmabinary+l //....docxbinary+l //....pptxbinary+l //....xlsxbinary+l //....pngbinary+l //....rawbinary+l //....odtbinary+l //....odsbinary+l //....odgbinary+l //....odpbinary+l //....otgbinary+l //....otsbinary+l //....ottbinary+l //....psdbinary+l //....sxwbinary+S2w //....exebinary+S2w //....dllbinary+S2w //....libbinary+S2w //....appbinary+S2w //....dylibbinary+S2w //....stubbinary+S2w //....ipabinary //....bmptext //....initext //....configtext //....cpptext //....htext //....ctext //....cstext //....mtext //....mmtext //....pybinary+l //....uassetbinary+l //....umapbinary+l //....upkbinary+l //....udk

设置忽略文件（.p4ignore）

在你的Workspace的根目录下创建一个 depot目录，然后新建一个文本文件并更名为".p4ignore"

然后把要忽略的文件和文件夹填写进去

Saved/
Intermediate/
DerivedDataCache/
*.pdb
obj/
*.vcxproj
*.sln
*-Debug.*
FileOpenOrder/

在这里打开命令窗口

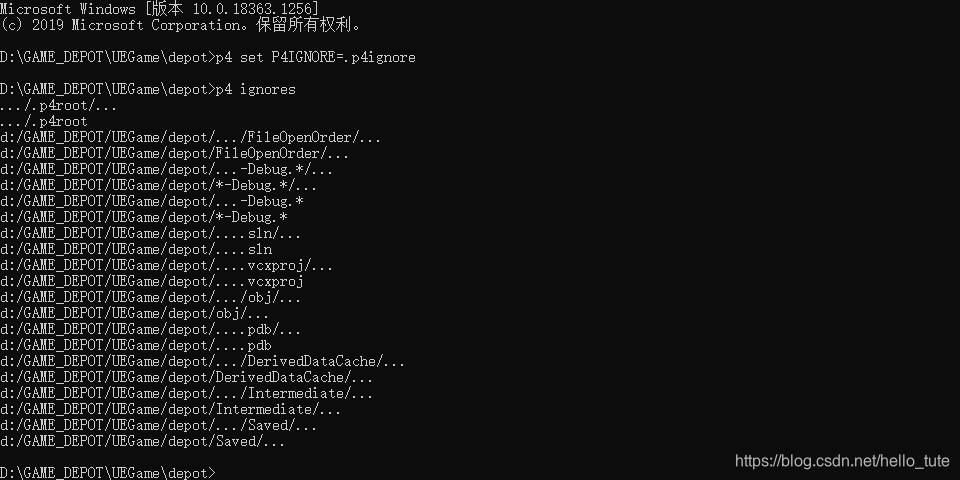

然后运行p4 set P4IGNORE=.p4ignore，将".p4ignore"指定为忽略文件。

然后可以运行一下p4 ignores检查一下是否设置成功：

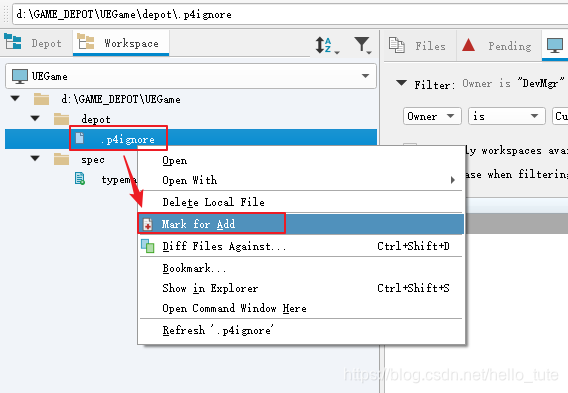

把".p4ignore"添加到更新列表里

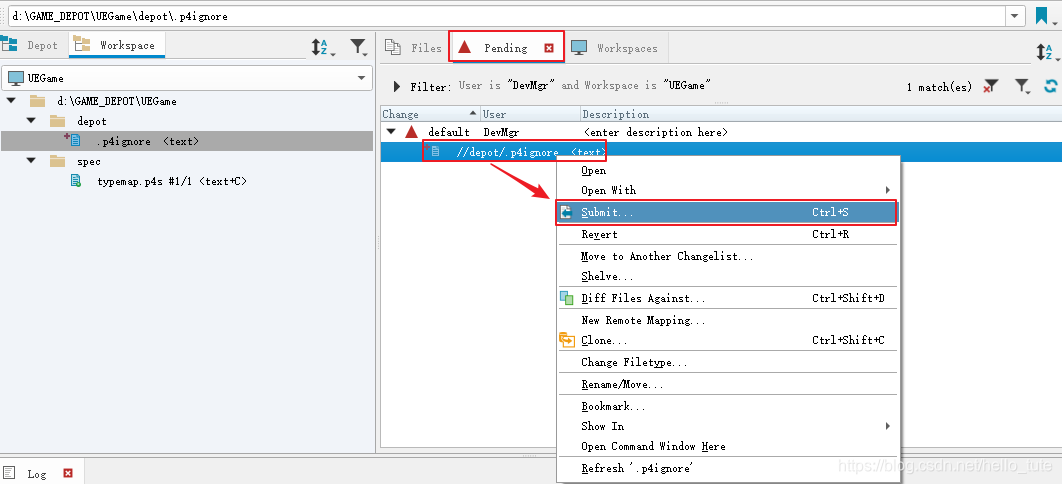

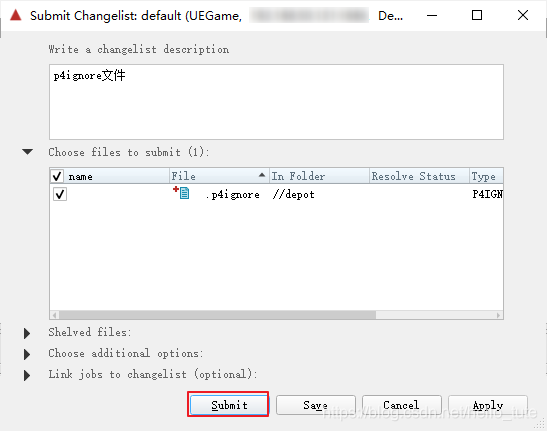

提交

添加虚幻工程

把整个虚幻工程拷贝到depot目录下即可

和刚才提交".p4ignore"的方法一样，把整个GameContent文件加也Mark For Add然后Submit

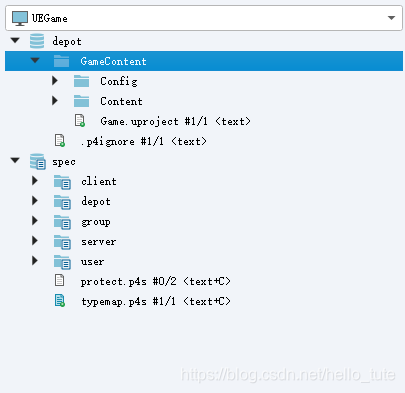

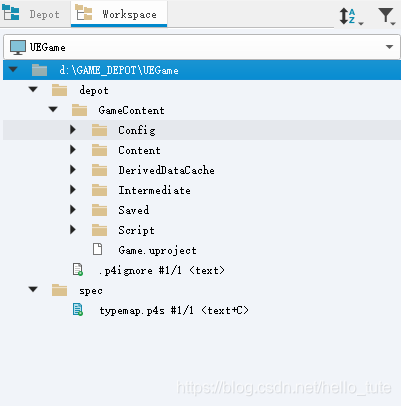

提交完毕后可以在Depot窗口看一下，我们可以看到文件已经全部提交到了服务器端

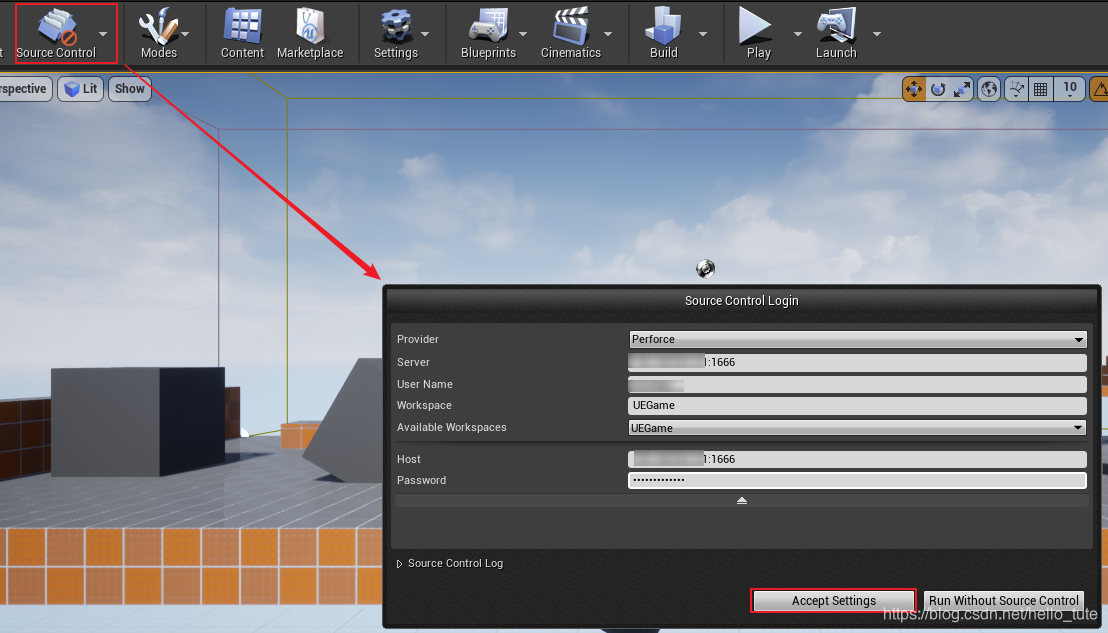

在虚幻编辑器中配置Perforce

双击*.uproject文件，打开虚幻编辑器

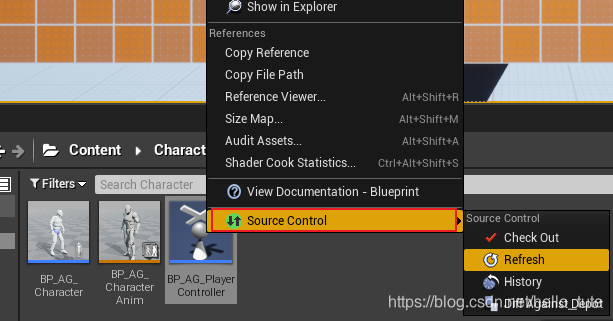

连接成功后Source Control的图标提示
