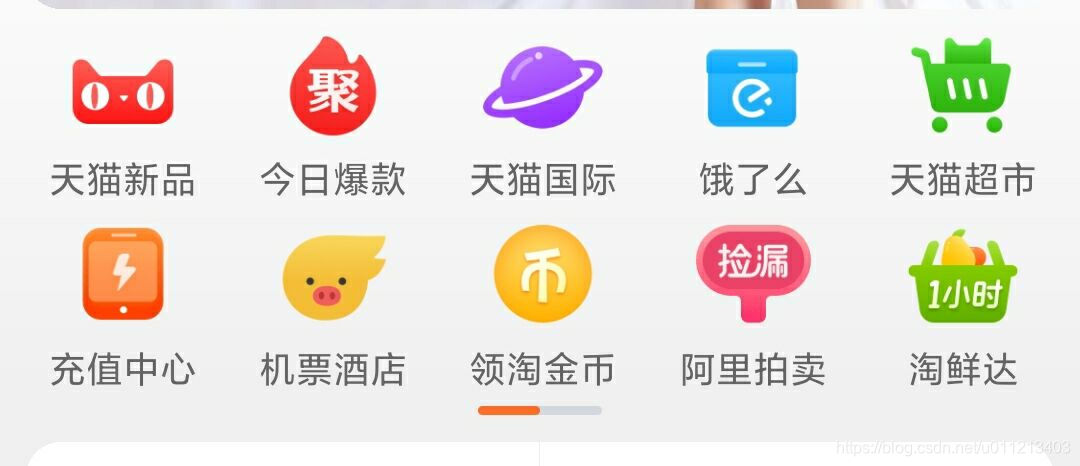

现在好多App首页都会有这样的条目
这种的实现方式要么是viewpager翻页滚动，要么就是recyclerView持续滚动。下面的指示器系统的太丑 ，所以就自定义了一个。下面是demo简单的效果图：
ViewPagerIndicator
因为嫌麻烦这里的指示器没有用Canvas进行绘制，用了布局文件代替：
指示器布局文件 view_indicator.xml
<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"android:id="@+id/root"android:layout_width="match_parent"android:layout_height="match_parent"android:background="#000000"><Viewandroid:id="@+id/ind_view"android:layout_width="wrap_content"android:layout_height="wrap_content"android:background="#ff0000"/></FrameLayout>
ViewPagerIndicator.java
public class ViewPagerIndicator extends FrameLayout {private View rootView;private View indView;public ViewPagerIndicator(@NonNull Context context) {this(context, null);}public ViewPagerIndicator(@NonNull Context context, @Nullable AttributeSet attrs) {this(context, attrs, 0);}public ViewPagerIndicator(@NonNull Context context, @Nullable AttributeSet attrs, int defStyleAttr) {super(context, attrs, defStyleAttr);View root = inflate(context, R.layout.app_viewpager_indicator, this);rootView = root.findViewById(R.id.root);indView = root.findViewById(R.id.ind_view);}int indViewWidth = 0;@Overridepublic void draw(Canvas canvas) {super.draw(canvas);}public void setWithViewPager(ViewPager viewPager) {//如果没有adapter，则隐藏不显示if (null == viewPager.getAdapter()) {setVisibility(GONE);Log.e(getClass().getSimpleName(), "no adapter");return;}//获取viewPager中fragment的数量final int count = viewPager.getAdapter().getCount();if (count == 0) {return;}//加载到window之后再进行view宽度的获取rootView.post(new Runnable() {@Overridepublic void run() {//获取当前滑块的宽度indViewWidth = getWidth() / count;FrameLayout.LayoutParams layoutParams = (FrameLayout.LayoutParams) indView.getLayoutParams();layoutParams.width = indViewWidth;indView.setLayoutParams(layoutParams);}});viewPager.addOnPageChangeListener(new ViewPager.OnPageChangeListener() {/**** @param position* @param positionOffset [0，1]中的值，指示在位置处与页面的偏移百分比。* @param positionOffsetPixels 以像素为单位的值，表示与位置的偏移量。*/@Overridepublic void onPageScrolled(int position, float positionOffset, int positionOffsetPixels) {//获取滑块距父布局左侧的距离int left = (int) (position * indViewWidth + positionOffset * indViewWidth);//重新布局滑块viewindView.layout(left, indView.getTop(), left + indViewWidth, indView.getBottom());}@Overridepublic void onPageSelected(int position) {}@Overridepublic void onPageScrollStateChanged(int state) {}});}
}步骤如下
1.计算出滑块的宽高
2.为viewPager添加滑动监听事件，监听滑动距离，计算出移动距离重新布局滑块
RecyclerViewIndicator
indicator 布局同上
RecyclerViewIndicator.java
public class RecyclerViewIndicator extends FrameLayout {private View rootView;private View indView;public RecyclerViewIndicator(@NonNull Context context) {this(context, null);}public RecyclerViewIndicator(@NonNull Context context, @Nullable AttributeSet attrs) {this(context, attrs, 0);}public RecyclerViewIndicator(@NonNull Context context, @Nullable AttributeSet attrs, int defStyleAttr) {super(context, attrs, defStyleAttr);View root = inflate(context, R.layout.app_viewpager_indicator, this);rootView = root.findViewById(R.id.root);indView = root.findViewById(R.id.ind_view);}int indViewWidth = 0;int indViewHeight = 0;float rate = 0f;/*** 绑定recyclerView* @param recyclerView* @param orientation 排列方向** 这里用到的recyclerView的三个方法* computeHorizontalScrollExtent/computeVerticalScrollExtent 当前显示在屏幕上的总长度* computeHorizontalScrollOffset/computeVerticalScrollOffset 当前滑动的总长度* computeHorizontalScrollRange/computeVerticalScrollRange recylerView内部的总长度*/public void setWithRecyclerView(final RecyclerView recyclerView, int orientation) {final boolean isHorizontal = orientation == RecyclerView.HORIZONTAL;rootView.post(new Runnable() {@Overridepublic void run() {float scrollRange = isHorizontal ? recyclerView.computeHorizontalScrollRange() : recyclerView.computeVerticalScrollRange();float scrollExtent = isHorizontal ? recyclerView.computeHorizontalScrollExtent() : recyclerView.computeVerticalScrollExtent();LayoutParams layoutParams = (LayoutParams) indView.getLayoutParams();if (isHorizontal) {//算出比例rate = (float) getWidth() / scrollRange;//由显示在屏幕上的总长度算出滑块长度indViewWidth = (int) (scrollExtent * rate);layoutParams.height = LayoutParams.MATCH_PARENT;layoutParams.width = indViewWidth;} else {rate = (float) getHeight() / scrollRange;layoutParams.width = LayoutParams.MATCH_PARENT;indViewHeight = (int) (scrollExtent * rate);layoutParams.height = indViewHeight;}indView.setLayoutParams(layoutParams);}});recyclerView.addOnScrollListener(new RecyclerView.OnScrollListener() {@Overridepublic void onScrolled(@NonNull RecyclerView recyclerView, int dx, int dy) {super.onScrolled(recyclerView, dx, dy);int scrollOffset = isHorizontal ? recyclerView.computeHorizontalScrollOffset() : recyclerView.computeVerticalScrollOffset();//由recyclerView滑动距离算出滑块移动距咯if (isHorizontal) {int left = (int) (scrollOffset * rate);indView.layout(left, indView.getTop(), left + indViewWidth, indView.getBottom());} else {int top = (int) (scrollOffset * rate);indView.layout(indView.getLeft(), top, indView.getRight(), top + indViewHeight);}}});}
}步骤基本上和recyclerView的实现步骤一致，
这里主要用到了recyclerView的三个方法进行计算
computeHorizontalScrollExtent/computeVerticalScrollExtent 当前显示在屏幕上的总长度
computeHorizontalScrollOffset/computeVerticalScrollOffset 当前滑动的总长度
computeHorizontalScrollRange/computeVerticalScrollRange recylerView内部的总长度
通过 orientation 来区分recyclrView 的排列方式
demo地址
demo只是做了实现的方式，界面有点丑，自己可以更改背景进行修改。也可以是用绘制的方式，添加自定义view的参数。
