[函数名称]
直方图均衡化函数HistogramEqualProcess(WriteableBitmap src)

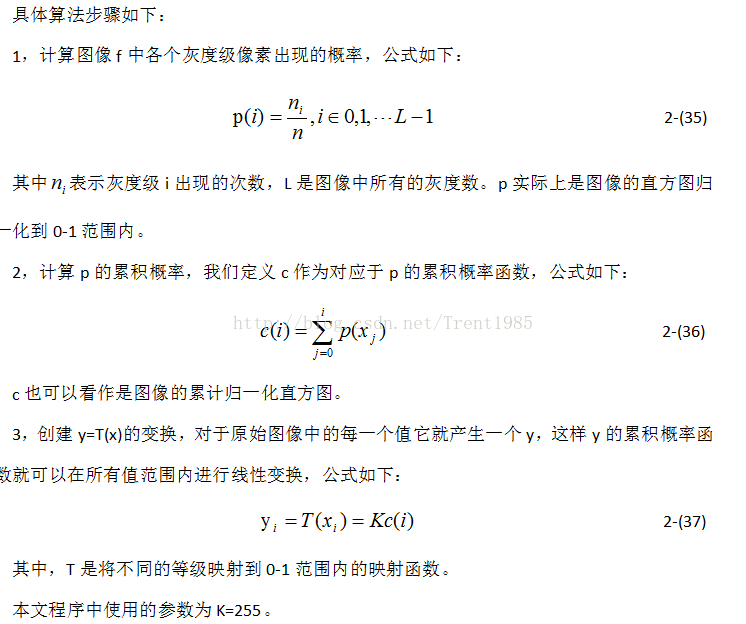

[算法说明]
直方图均衡化，又叫做直方图修平，是对图像进行非线性拉伸，重新分配图像像素值，把原始图像的灰度直方图从比较集中的某个灰度区间转换为全部灰度范围内的均匀分布，这样就增加了像素灰度值的动态范围，达到增强图像整体对比度的效果。
[函数代码]
/// <summary>
/// Histogram equalization process.
/// </summary>
/// <param name="src">The source image.</param>
/// <returns></returns>
public static WriteableBitmap HistogramEqualProcess(WriteableBitmap src)30图像直方图均衡化
{
if (src != null)
{
int w = src.PixelWidth;
int h = src.PixelHeight;
WriteableBitmap histogramEqualImage = new WriteableBitmap(w, h);
byte[] temp = src.PixelBuffer.ToArray();
byte gray;
int[] tempArray = new int[256];
int[] countPixel = new int[256];
byte[] pixelMap = new byte[256];
for (int i = 0; i < temp.Length; i += 4)
{
gray = (byte)(temp[i] * 0.114 + temp[i + 1] * 0.587 + temp[i + 2] * 0.299);
countPixel[gray]++;
}
for (int i = 0; i < 256; i++)
{
if (i != 0)
{
tempArray[i] = tempArray[i - 1] + countPixel[i];
}
else
{
tempArray[0] = countPixel[0];
}
pixelMap[i] = (byte)(255 * tempArray[i] * 4 / temp.Length + 0.5);
}
for (int i = 0; i < temp.Length; i+=4)
{
gray = temp[i];
temp[i] = pixelMap[gray];
gray = temp[i+1];
temp[i+1] = pixelMap[gray];
gray = temp[i+2];
temp[i+2] = pixelMap[gray];
}
Stream sTemp = histogramEqualImage.PixelBuffer.AsStream();
sTemp.Seek(0, SeekOrigin.Begin);
sTemp.Write(temp, 0, w * 4 * h);
return histogramEqualImage;
}
else
{
return null;
}
}
[图像效果]
