部署Harbor仓库

下面一步（用的1.8.0版本的harbor）

[root@kub-k8s-master ~]# wget https://storage.googleapis.com/harbor-releases/release-1.8.0/harbor-offline-installer-v1.8.0.tgz

[root@kub-k8s-master ~]# yum -y install  lrzsz

[root@kub-k8s-master ~]# curl -L https://github.com/docker/compose/releases/download/1.22.0/docker-compose-`uname -s`-`uname -m` -o /usr/local/bin/docker-compose

我是直接用的安装包
我们选择了上传这两个软件包，所以要更改名称，移动路径

[root@k8s-master ~]# mv docker-compose-Linux-x86_64 /usr/local/bin/docker-compose
[root@kub-k8s-master ~]# chmod +x /usr/local/bin/docker-compose[root@kub-k8s-master ~]# tar xf harbor-offline-installer-v1.8.0.tgz[root@kub-k8s-master ~]# cd harbor

http访问方式的配置：

[root@kub-k8s-master harbor]# vim harbor.yml #主机名要可以解析(需要部署dns服务器，用/etc/hosts文件没有用)，如果不可以解析，可以使用IP地址,需要修改的内容如下
hostname: 192.168.246.166

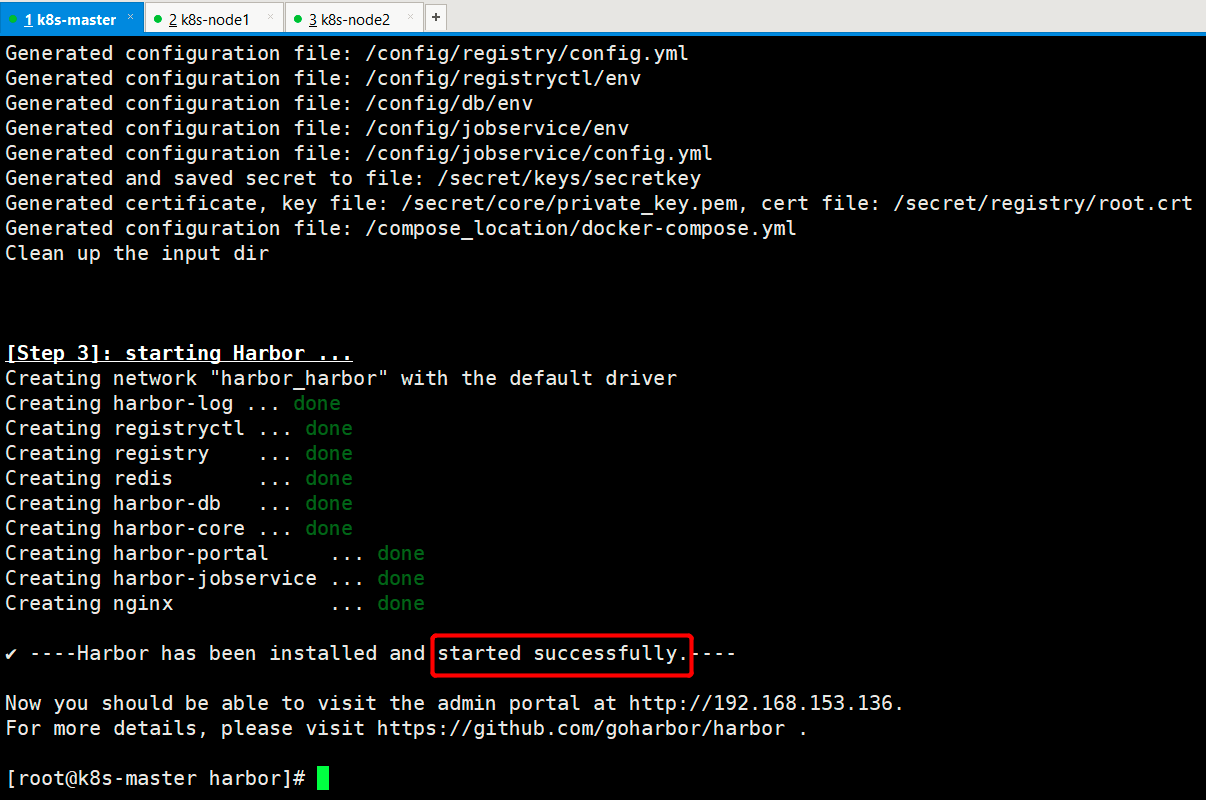

[root@kub-k8s-master harbor]# ./install.sh  #需要等待下载镜像
如果安装失败，重启docker服务，重新安装即可；

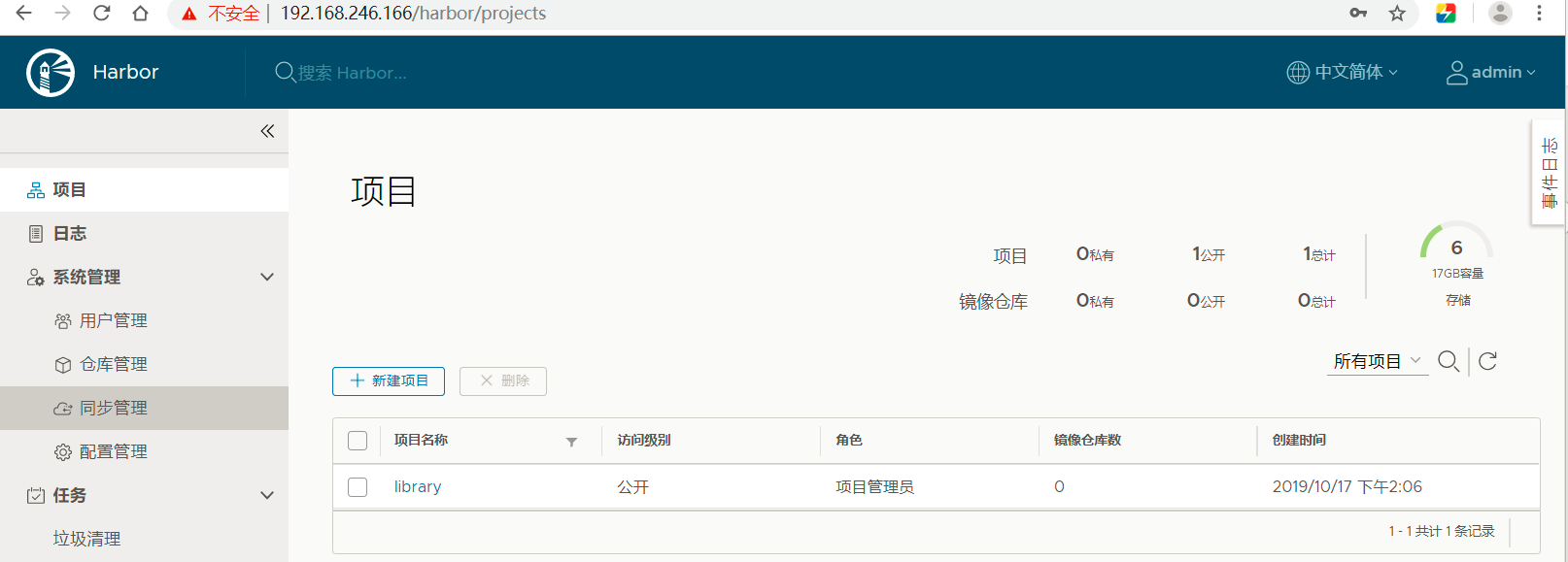

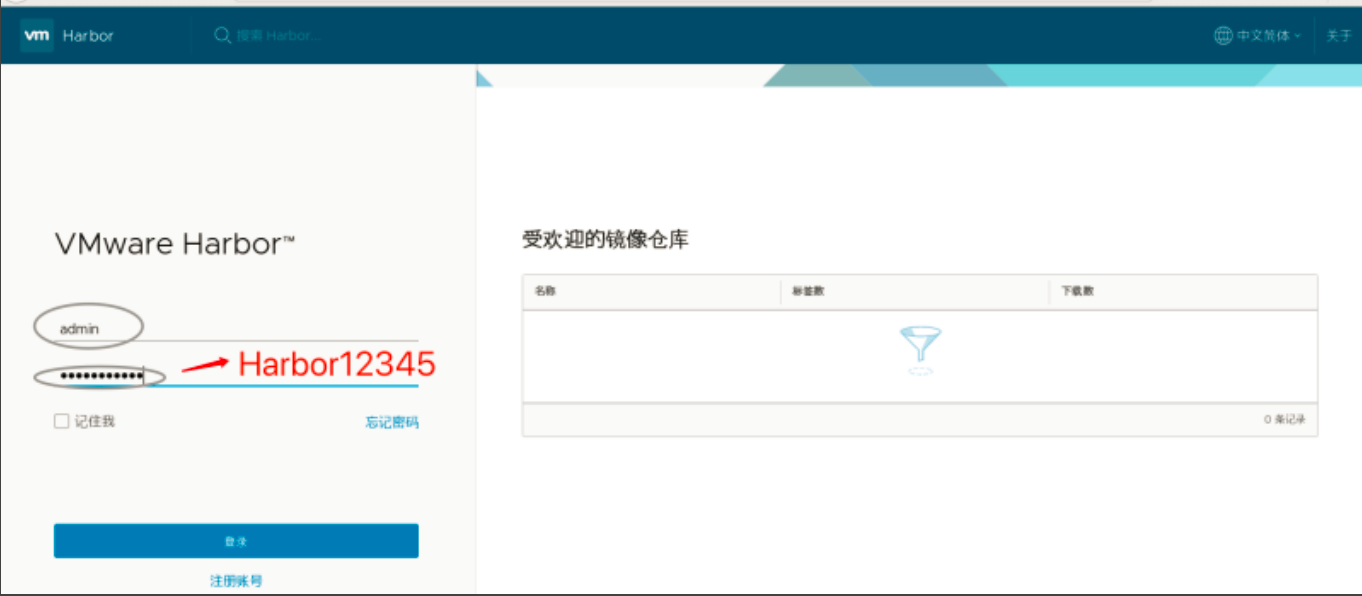

浏览器访问测试：
http://192.168.246.166

配置https访问

[root@kub-k8s-master ~]# mkdir -pv /data/cert/
[root@kub-k8s-master ~]# openssl genrsa -out /data/cert/server.key 2048
Generating RSA private key, 2048 bit long modulus
............................................+++

[root@kub-k8s-master ~]# openssl req -x509 -new -nodes -key /data/cert/server.key -subj "/CN=192.168.246.166" -days 3650 -out /data/cert/server.crt
[root@kub-k8s-master ~]# ll -a /data/cert
[root@kub-k8s-master ~]# cd harbor
[root@kub-k8s-master harbor]# vim harbor.yml   #编辑如下

重启

[root@kub-k8s-master harbor]# ./prepare

如果出错，重启Docker服务，再次执行./prepare

[root@kub-k8s-master harbor]# docker-compose down
Stopping nginx             ... done
Stopping harbor-portal     ... done
Stopping harbor-jobservice ... done
Stopping harbor-core       ... done
Stopping harbor-db         ... done
Stopping redis             ... done
Stopping registryctl       ... done
Stopping registry          ... done
Stopping harbor-log        ... done
Removing nginx             ... done
Removing harbor-portal     ... done
Removing harbor-jobservice ... done
Removing harbor-core       ... done
Removing harbor-db         ... done
Removing redis             ... done
Removing registryctl       ... done
Removing registry          ... done
Removing harbor-log        ... done
Removing network harbor_harbor
[root@kub-k8s-master harbor]# docker-compose up -d  #放后台

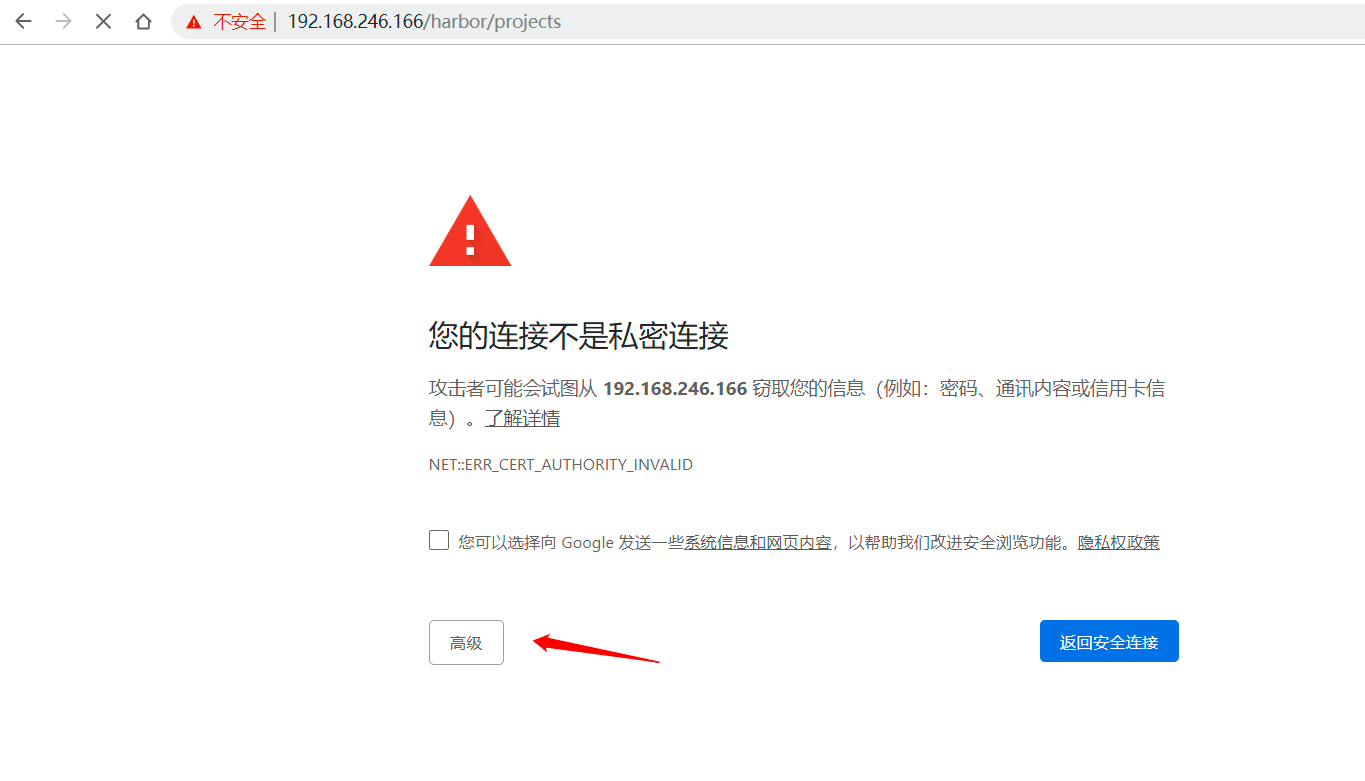

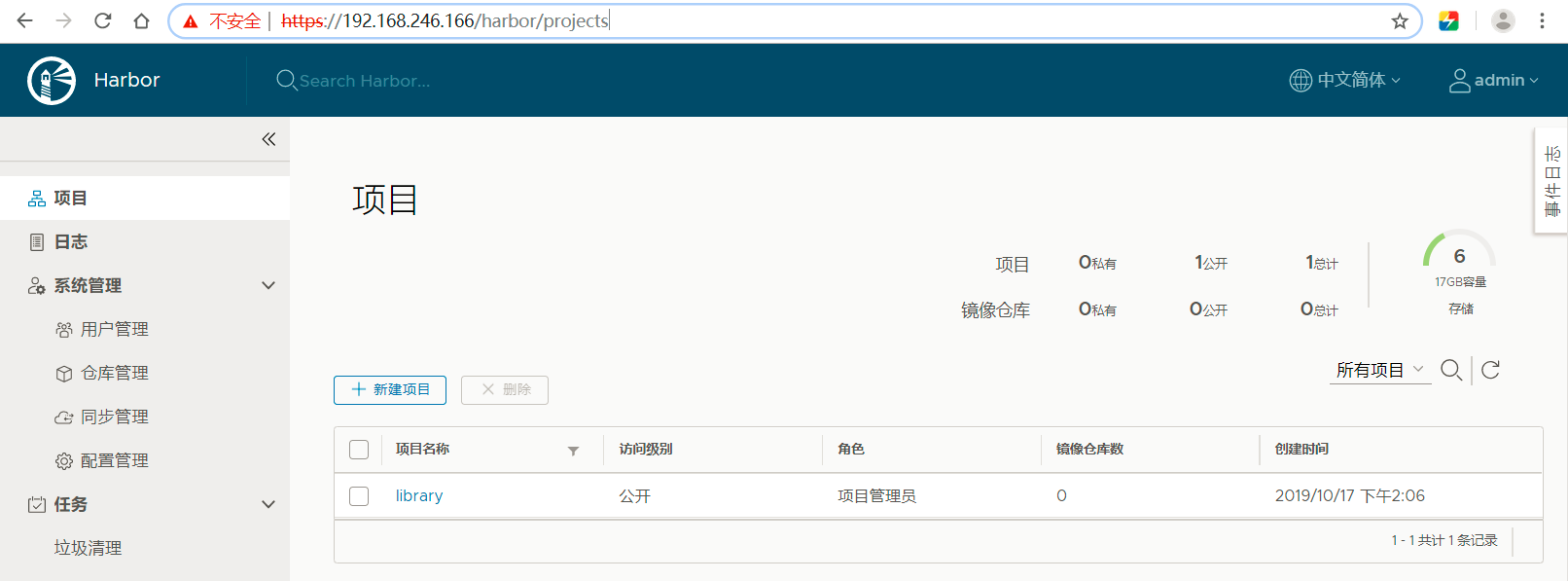

访问：

客户端配置(每个访问harbor的机器上都要配置)

在node上面操作：
[root@kub-k8s-node1 ~]# vim /etc/docker/daemon.json   #编辑文件
{
"insecure-registries": ["192.168.246.166"]   #该ip为部署仓库机器的ip
}
[root@kub-k8s-node1 ~]# systemctl restart docker

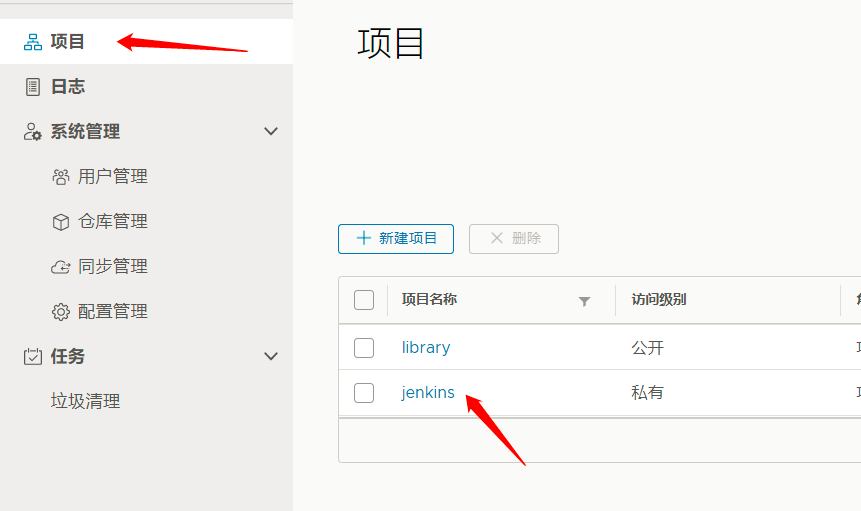

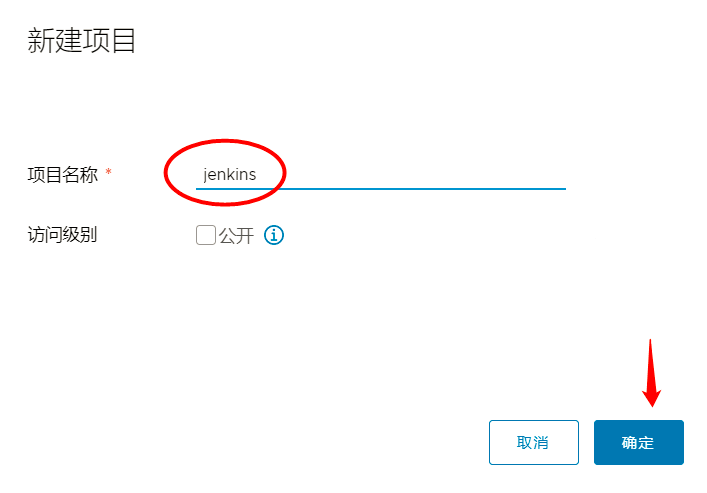

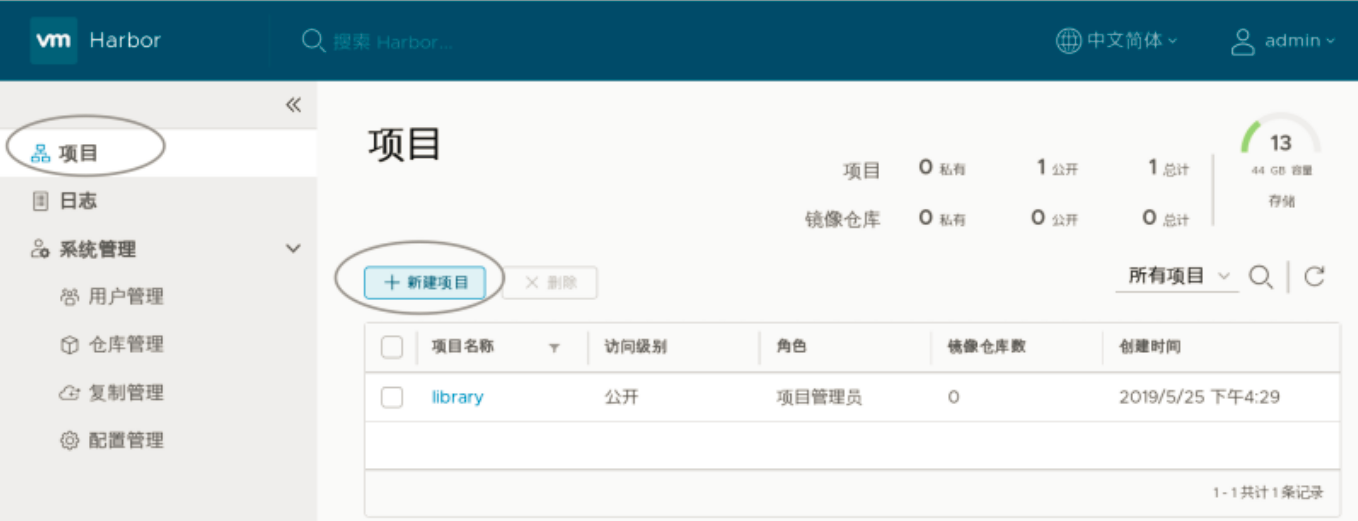

创建仓库

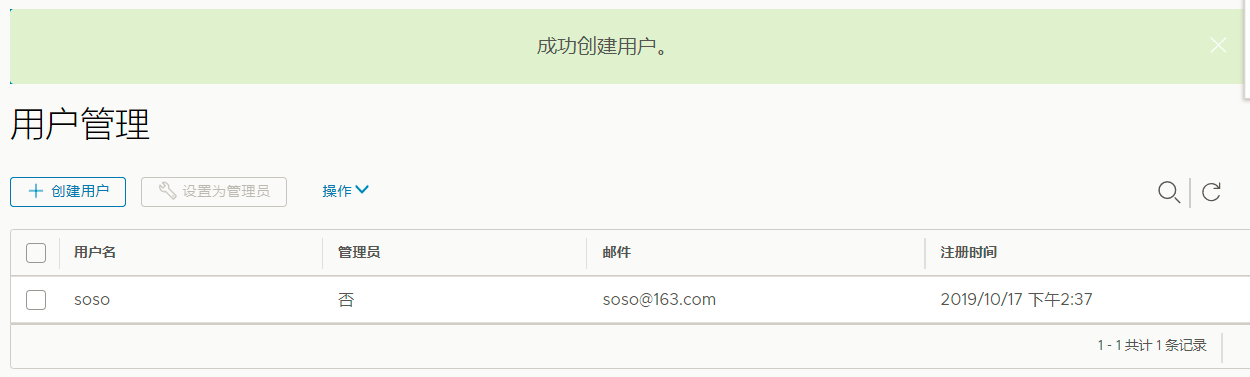

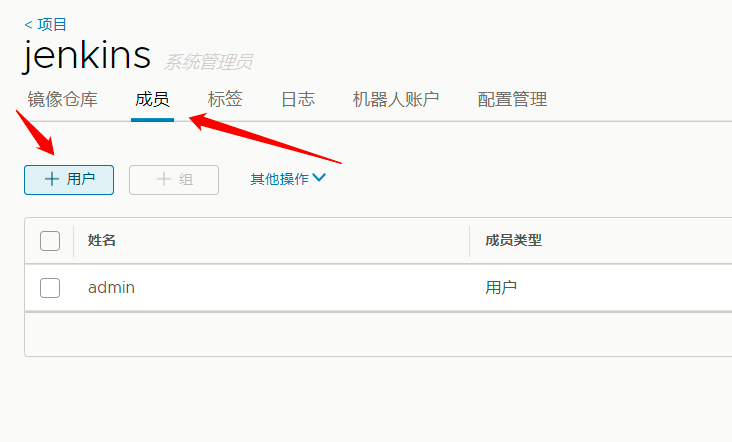

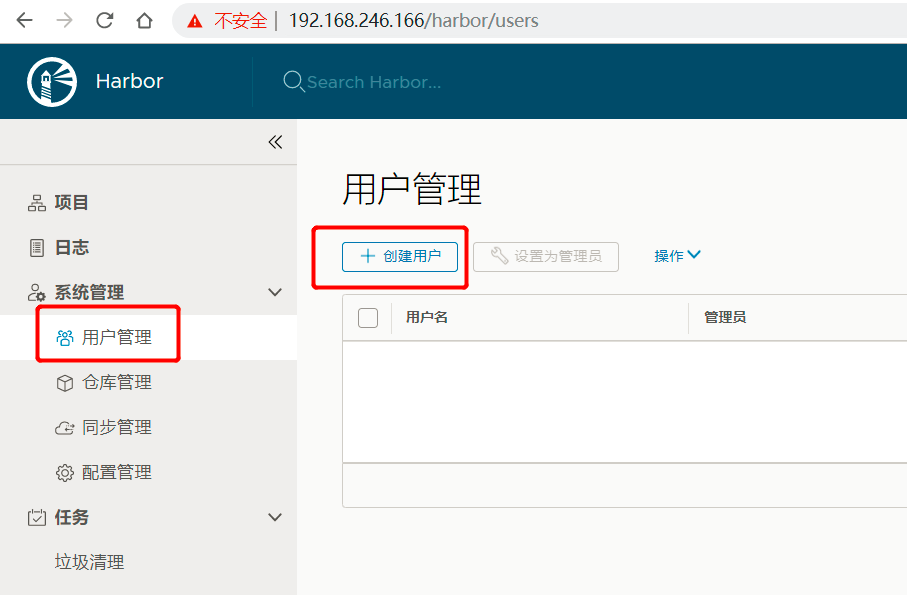

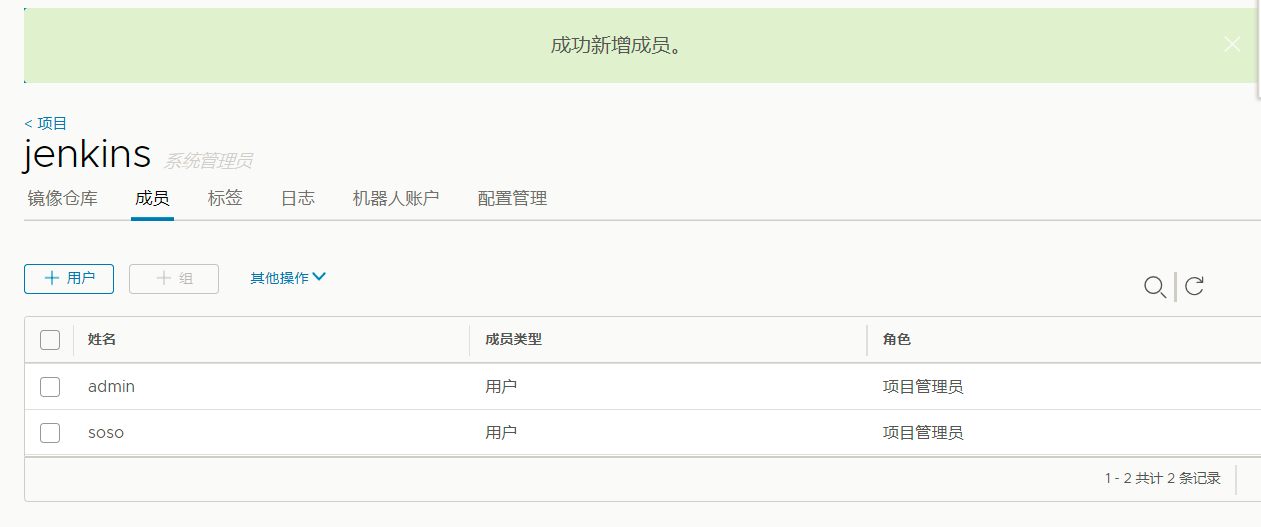

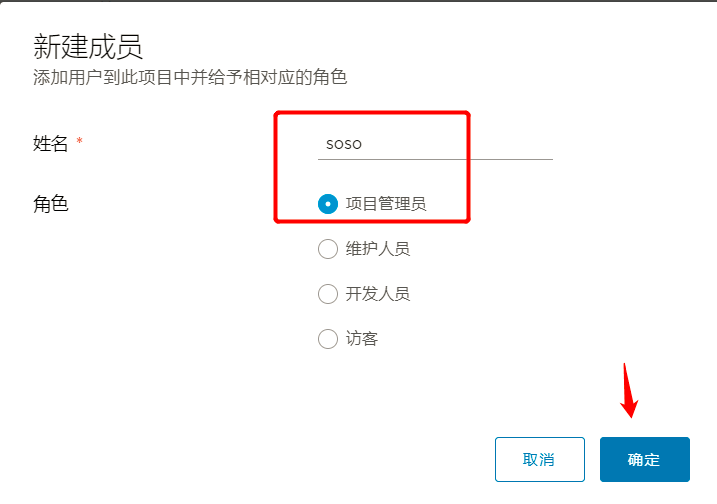

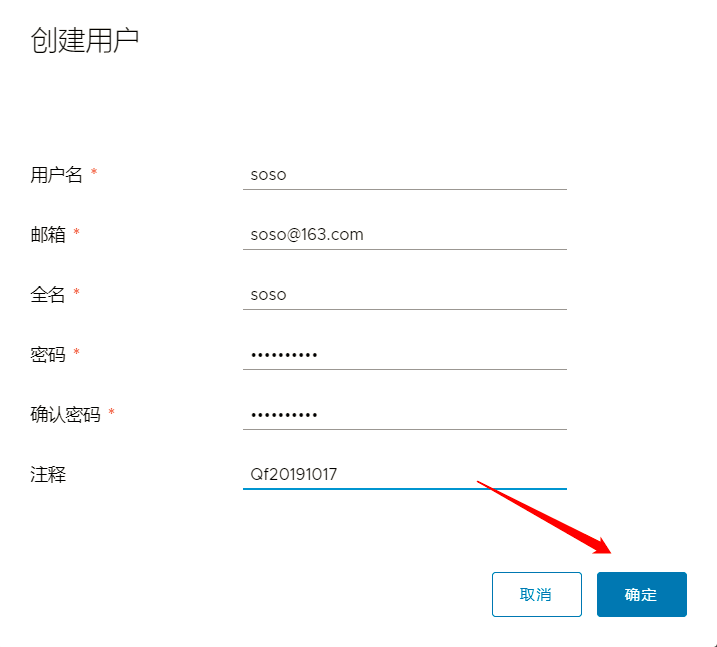

创建账号

测试

1.登录

[root@kub-k8s-node1 ~]# docker login 192.168.246.166
Username: soso
Password:
Login Succeeded

2.下载一个测试的镜像

[root@kub-k8s-node1 ~]# docker pull daocloud.io/library/nginx
3.查看
[root@kub-k8s-node1 ~]# docker images
REPOSITORY                     TAG       IMAGE ID            CREATED        SIZE
daocloud.io/library/nginx     latest   98ebf73aba75        3 months ago    109MB
4.打个tag
[root@kub-k8s-node1 ~]# docker tag daocloud.io/library/nginx:latest 192.168.246.166/jenkins/nginx

5.上传到仓库

[root@kub-k8s-node1 ~]# docker push 192.168.246.166/jenkins/nginx
The push refers to repository [192.168.246.166/jenkins/nginx]
589561a3ffb4: Pushed
ef7dbb0cfc81: Pushed
d56055da3352: Pushed
latest: digest: sha256:f83b2ffd963ac911f9e638184c8d580cc1f3139d5c8c33c87c3fb90aebdebf76 size: 948

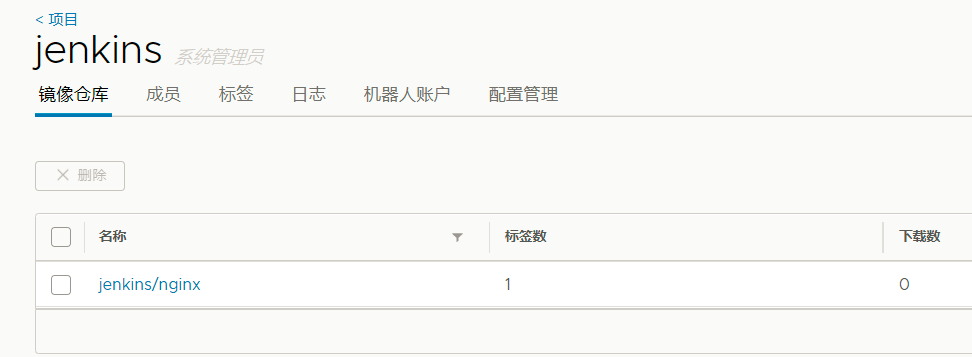

在web界面中查看镜像是否被上传到仓库中

拉取测试

来到node2

[root@k8s-node2 ~]# cat /etc/docker/daemon.json
{"insecure-registries": ["192.168.246.166"]
}
[root@k8s-node2 ~]# systemctl restart docker
[root@k8s-node2 ~]# docker login 192.168.246.166 --username='soso' --password='***'

[root@k8s-node2 ~]# docker pull 192.168.246.166/jenkins/nginx
