Android之TabLayout

本文主要是介绍Android之TabLayout，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

android中TabLayut到底是个什么鬼？今天我们来看一下，起初，我听见这个名字的时候我总觉得这不是五大布局里的表格布局嘛，现在想想真是有点可笑，下面我们来了解一下它吧！

在2015年的google大会上，google发布了新的Android Support Design库，TabLayout是属于Android Design Support Library中的一个控件，顶部或者底部水平的Tab布局，滑动或者点击切换的功能，今天我们简单讲解TabLayout的使用，重点讲解如何自定义TabLayout的item，也就是每一个tab。下面我们看一个列子：

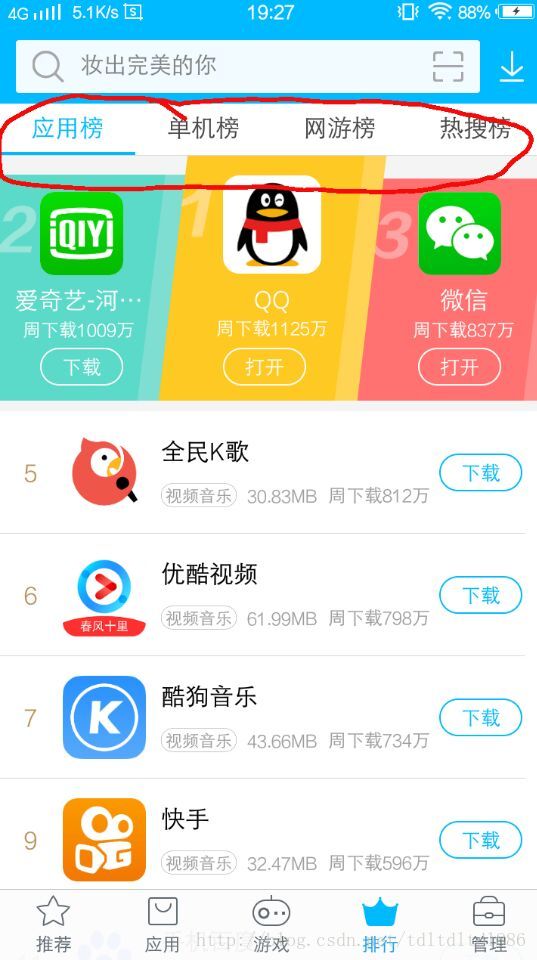

这里写图片描述

画圈的自然就是tablayout了，它一共是4个，既可以点击滑动，也可以直接滑动，下面我们就来写代码吧！

首先我们需要在build.gradle中加入compile ‘com.android.support:design:22.2.0’依赖即可。

我打算写3个tab所以先写一个ThirdActivity
代码如下：

ThirdActivity：
package com.example.mytablayoutdemo.activity;import android.app.Activity;
import android.os.Bundle;
import android.support.annotation.Nullable;
import android.support.design.widget.TabLayout;
import android.support.v4.app.FragmentActivity;
import android.support.v4.view.ViewPager;import com.example.mytablayoutdemo.R;
import com.example.mytablayoutdemo.adapter.SimpleFragmentPagerAdapter;/*** Created by 亮亮 on 2017/7/26.*/public class TActivity extends FragmentActivity {private SimpleFragmentPagerAdapter pagerAdapter;private ViewPager viewPager;private TabLayout tabLayout;@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_t);pagerAdapter = new SimpleFragmentPagerAdapter(getSupportFragmentManager(), this);viewPager = (ViewPager) findViewById(R.id.viewpager);viewPager.setAdapter(pagerAdapter);tabLayout = (TabLayout) findViewById(R.id.sliding_tabs);tabLayout.setupWithViewPager(viewPager);tabLayout.setTabMode(TabLayout.MODE_FIXED);}
}

activity_third布局代码：
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"xmlns:app="http://schemas.android.com/apk/res-auto"android:orientation="vertical"android:layout_width="match_parent"android:layout_height="match_parent"><android.support.design.widget.TabLayout
        android:id="@+id/sliding_tabs"android:layout_width="match_parent"android:layout_height="wrap_content"app:tabMode="scrollable"/><android.support.v4.view.ViewPager
        android:id="@+id/viewpager"android:layout_width="match_parent"android:layout_height="0px"android:layout_weight="1"android:background="@android:color/white"></android.support.v4.view.ViewPager>
</LinearLayout>

pageFragment代码：
package com.example.mytablayoutdemo.fragment;import android.os.Bundle;
import android.support.annotation.Nullable;
import android.support.v4.app.Fragment;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.TextView;import com.example.mytablayoutdemo.R;/*** Created by 亮亮 on 2017/7/26.*/public class PageFragment extends Fragment {public static final String ARG_PAGE = "ARG_PAGE";private int mPage;public static PageFragment newInstance(int page) {Bundle args = new Bundle();args.putInt(ARG_PAGE, page);PageFragment pageFragment = new PageFragment();pageFragment.setArguments(args);return pageFragment;}@Overridepublic void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);mPage = getArguments().getInt(ARG_PAGE);}@Nullable@Overridepublic View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {View view = inflater.inflate(R.layout.pager_fragment, container, false);TextView textView = (TextView) view;textView.setText("Fragment #" + mPage);return view;}
}

这里写代码片
page_fragment布局代码：
<?xml version="1.0" encoding="utf-8"?>
<TextView xmlns:android="http://schemas.android.com/apk/res/android"android:layout_width="match_parent"android:layout_height="match_parent"android:gravity="center"></TextView>

SimpleFragmentPagerAdapter适配器代码：
package com.example.mytablayoutdemo.adapter;import android.content.Context;
import android.support.v4.app.Fragment;
import android.support.v4.app.FragmentManager;
import android.support.v4.app.FragmentPagerAdapter;import com.example.mytablayoutdemo.fragment.PageFragment;/*** Created by 亮亮 on 2017/7/26.*/public class SimpleFragmentPagerAdapter extends FragmentPagerAdapter {final int PAGE_COUNT = 3;private String tabTitles[] = new String[]{"tab1","tab2","tab3"};private Context context;public SimpleFragmentPagerAdapter(FragmentManager fm, Context context) {super(fm);this.context = context;}@Overridepublic Fragment getItem(int position) {return PageFragment.newInstance(position + 1);}@Overridepublic int getCount() {return PAGE_COUNT;}@Overridepublic CharSequence getPageTitle(int position) {return tabTitles[position];}
}

需要在androidmanifest配置文件中注册下
<activity android:name=".activity.MainActivity"/><activity android:name=".activity.TActivity"><intent-filter><action android:name="android.intent.action.MAIN"/><category android:name="android.intent.category.LAUNCHER"/></intent-filter></activity>
