动手学深度学习学习笔记tf2.0版（5.10 批量归一化）

本文主要是介绍动手学深度学习学习笔记tf2.0版（5.10 批量归一化），希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

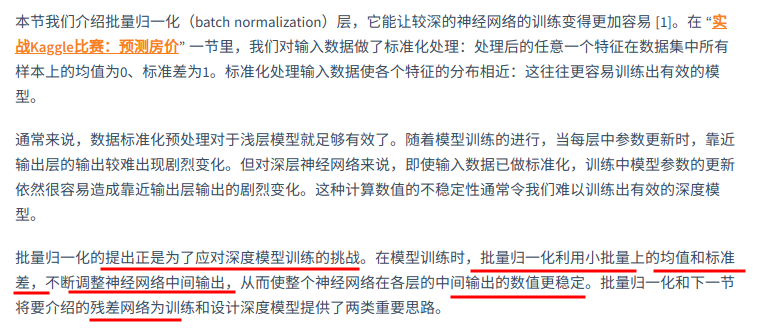

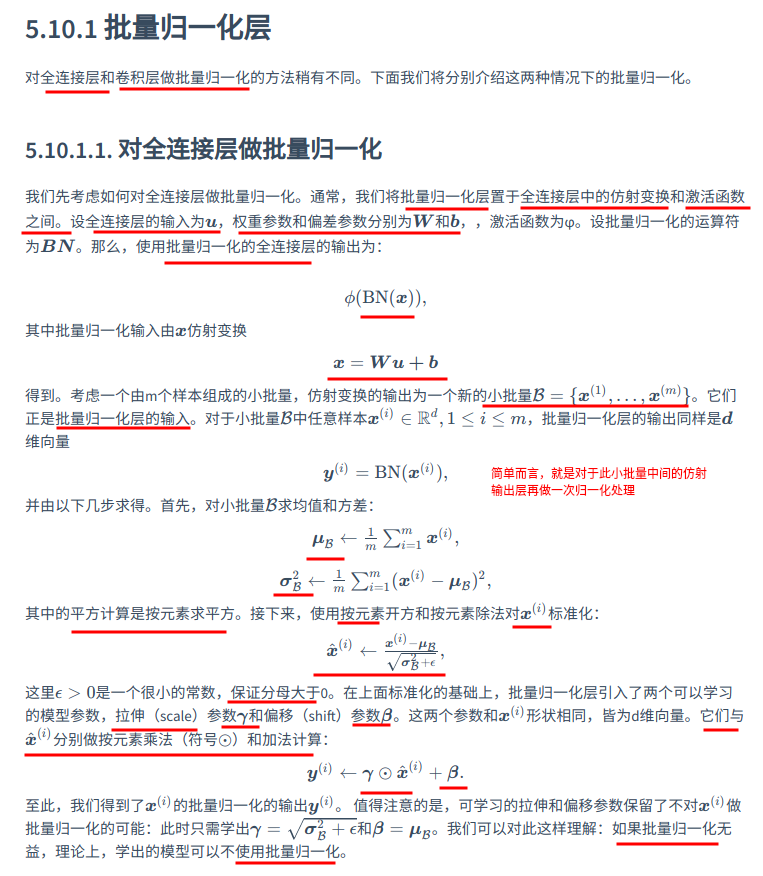

batch_normalization就是在batch方向上，做样本归一化

5.10.2. 从零开始实现
下面我们通过numpy中的ndarray来实现批量归一化层。

def batch_norm(is_training,X, gamma, beta, moving_mean, moving_var, eps, momentum):# 判断是当前模式是训练模式还是预测模式if not is_training:# 如果是在预测模式下，直接使用传入的移动平均所得的均值和方差X_hat = (X - moving_mean) / np.sqrt(moving_var + eps)else:assert len(X.shape) in (2, 4)if len(X.shape) == 2:# 使用全连接层的情况，计算特征维上的均值和方差mean = X.mean(axis=0)var = ((X - mean) ** 2).mean(axis=0)else:# 使用二维卷积层的情况，计算通道维上（axis=1）的均值和方差。这里我们需要保持# X的形状以便后面可以做广播运算mean = X.mean(axis=(0, 2, 3), keepdims=True)var = ((X - mean) ** 2).mean(axis=(0, 2, 3), keepdims=True)# 训练模式下用当前的均值和方差做标准化X_hat = (X - mean) / np.sqrt(var + eps)# 更新移动平均的均值和方差moving_mean = momentum * moving_mean + (1.0 - momentum) * meanmoving_var = momentum * moving_var + (1.0 - momentum) * varY = gamma * X_hat + beta  # 拉伸和偏移return Y, moving_mean, moving_var

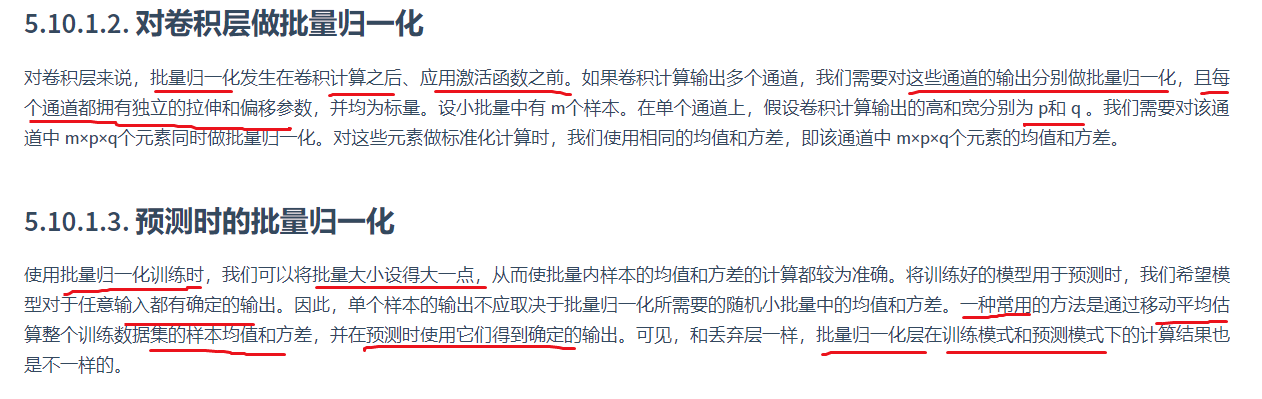

接下来，我们自定义一个BatchNorm层。它保存参与求梯度和迭代的拉伸参数gamma和偏移参数beta，同时也维护移动平均得到的均值和方差，以便能够在模型预测时被使用。BatchNorm实例所需指定的num_features参数对于全连接层来说应为输出个数，对于卷积层来说则为输出通道数。该实例所需指定的num_dims参数对于全连接层和卷积层来说分别为2和4。

class BatchNormalization(tf.keras.layers.Layer):def __init__(self, decay=0.9, epsilon=1e-5, **kwargs):self.decay = decayself.epsilon = epsilonsuper(BatchNormalization, self).__init__(**kwargs)def build(self, input_shape):self.gamma = self.add_weight(name='gamma',shape=[input_shape[-1], ],initializer=tf.initializers.ones,trainable=True)self.beta = self.add_weight(name='beta',shape=[input_shape[-1], ],initializer=tf.initializers.zeros,trainable=True)self.moving_mean = self.add_weight(name='moving_mean',shape=[input_shape[-1], ],initializer=tf.initializers.zeros,trainable=False)self.moving_variance = self.add_weight(name='moving_variance',shape=[input_shape[-1], ],initializer=tf.initializers.ones,trainable=False)super(BatchNormalization, self).build(input_shape)def assign_moving_average(self, variable, value):"""variable = variable * decay + value * (1 - decay)"""delta = variable * self.decay + value * (1 - self.decay)return variable.assign(delta)@tf.functiondef call(self, inputs, training):if training:batch_mean, batch_variance = tf.nn.moments(inputs, list(range(len(inputs.shape) - 1)))mean_update = self.assign_moving_average(self.moving_mean, batch_mean)variance_update = self.assign_moving_average(self.moving_variance, batch_variance)self.add_update(mean_update)self.add_update(variance_update)mean, variance = batch_mean, batch_varianceelse:mean, variance = self.moving_mean, self.moving_varianceoutput = tf.nn.batch_normalization(inputs,mean=mean,variance=variance,offset=self.beta,scale=self.gamma,variance_epsilon=self.epsilon)return outputdef compute_output_shape(self, input_shape):return input_shape

使用批量归一化层的LeNet
下面我们修改“卷积神经网络（LeNet）”这一节介绍的LeNet模型，从而应用批量归一化层。我们在所有的卷积层或全连接层之后、激活层之前加入批量归一化层。

net = tf.keras.models.Sequential([tf.keras.layers.Conv2D(filters=6,kernel_size=5),BatchNormalization(),tf.keras.layers.Activation('sigmoid'),tf.keras.layers.MaxPool2D(pool_size=2, strides=2),tf.keras.layers.Conv2D(filters=16,kernel_size=5),BatchNormalization(),tf.keras.layers.Activation('sigmoid'),tf.keras.layers.MaxPool2D(pool_size=2, strides=2),tf.keras.layers.Flatten(),tf.keras.layers.Dense(120),BatchNormalization(),tf.keras.layers.Activation('sigmoid'),tf.keras.layers.Dense(84),BatchNormalization(),tf.keras.layers.Activation('sigmoid'),tf.keras.layers.Dense(10,activation='sigmoid')]
)

简洁实现
与我们刚刚自己定义的BatchNorm类相比，keras中layers模块定义的BatchNorm类使用起来更加简单。它不需要指定自己定义的BatchNorm类中所需的num_features和num_dims参数值。在keras中，这些参数值都将通过延后初始化而自动获取。下面我们用keras实现使用批量归一化的LeNet。

net = tf.keras.models.Sequential()
net.add(tf.keras.layers.Conv2D(filters=6,kernel_size=5))
net.add(tf.keras.layers.BatchNormalization())
net.add(tf.keras.layers.Activation('sigmoid'))
net.add(tf.keras.layers.MaxPool2D(pool_size=2, strides=2))
net.add(tf.keras.layers.Conv2D(filters=16,kernel_size=5))
net.add(tf.keras.layers.BatchNormalization())
net.add(tf.keras.layers.Activation('sigmoid'))
net.add(tf.keras.layers.MaxPool2D(pool_size=2, strides=2))
net.add(tf.keras.layers.Flatten())
net.add(tf.keras.layers.Dense(120))
net.add(tf.keras.layers.BatchNormalization())
net.add(tf.keras.layers.Activation('sigmoid'))
net.add(tf.keras.layers.Dense(84))
net.add(tf.keras.layers.BatchNormalization())
net.add(tf.keras.layers.Activation('sigmoid'))
net.add(tf.keras.layers.Dense(10,activation='sigmoid'))

# 获取数据
from tensorflow.keras.datasets import fashion_mnist
import matplotlib.pyplot as plt(x_train, y_train), (x_test, y_test) = fashion_mnist.load_data()# 数据预处理
def data_scale(x, y):x = tf.cast(x, tf.float32)x = x / 255.0x = tf.reshape(x, (x.shape[0], x.shape[1], 1))x = tf.image.resize_with_pad(image=x, target_height=224,target_width=224)return x, y
# 由于笔记本训练太慢了，使用1000条数据，跑一下先,算力够的可以直接使用全部数据更加明显
train_db = tf.data.Dataset.from_tensor_slices((x_train,y_train)).shuffle(20).map(data_scale).batch(128)
test_db = tf.data.Dataset.from_tensor_slices((x_test,y_test)).shuffle(20).map(data_scale).batch(128)

# 定义优化器和损失函数
optimizer = tf.keras.optimizers.SGD(lr=1e-2)
loss = tf.keras.losses.sparse_categorical_crossentropy

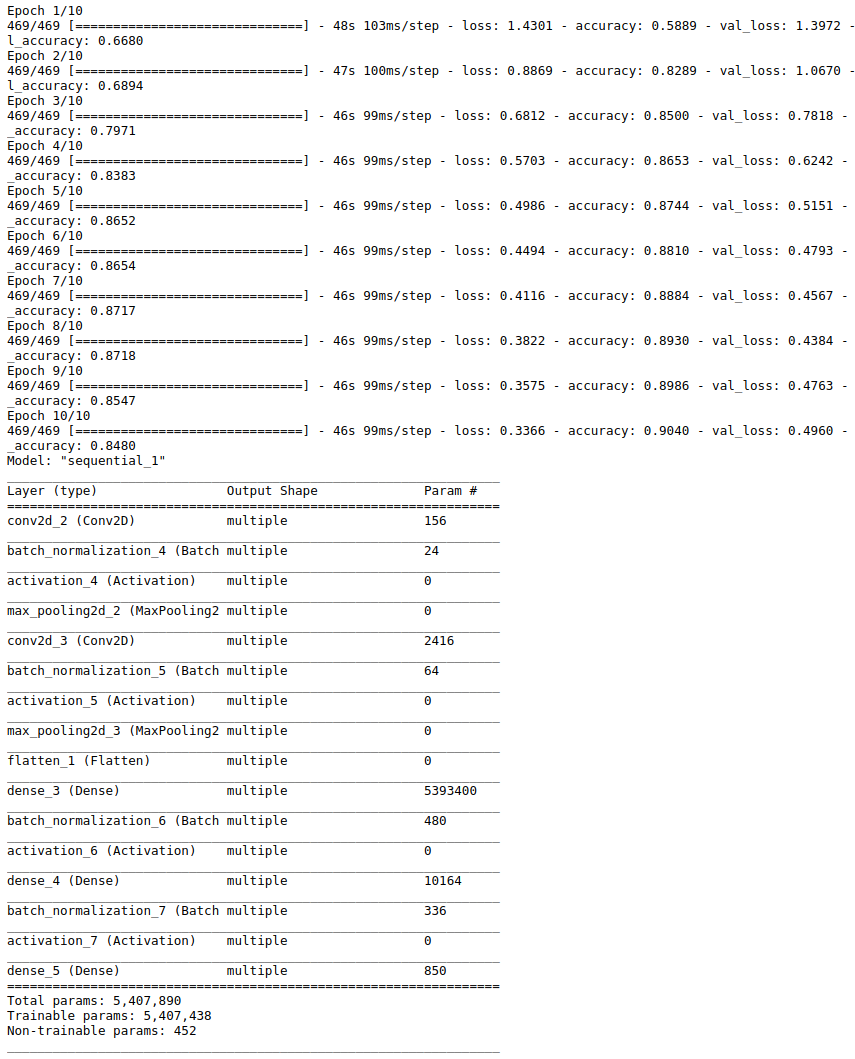

net.compile(optimizer=optimizer, loss=loss, metrics=['accuracy'])net.fit_generator(train_db, epochs=10, validation_data=test_db)    # 这里就不跑太多轮了，有机器可以自己调参跑个好的结果
net.summary()

# 展示其中的前八层的特征图
X = next(iter(train_db))[0][0]def show(X, k,i, name):print(X.shape)X = tf.expand_dims(X, axis=-1)# 将每个图转换为 200 * 200的像素，但这个不是图大小X = tf.image.resize(X,  [200,200], method='bilinear')X_ = tf.squeeze(X)t = plt.subplot(8, 4,  4*k + i + 1)t.title.set_text('layer %s:'%k + name + '-' + str(i))plt.imshow(X_)X = tf.expand_dims(X, axis=0)# 设置图纸大小
plt.figure(figsize=(15, 15))
# 打印前 8 层的部分特征图
for k,blk in enumerate(net.layers[0:8]):print(blk.name,'itput shape:\t',X.shape)
#     show(X[0,:,:,0])X = blk(X)print(blk.name, 'output shape:\t', X.shape)# 选择其中的四个通道for i in range(4):show(X[0,:,:,i], k, i, blk.name)
# 调整子图的间隔
left  = 0.125  # the left side of the subplots of the figure
right = 0.9    # the right side of the subplots of the figure
bottom = 0.1   # the bottom of the subplots of the figure
top = 0.9      # the top of the subplots of the figure
wspace = 0.2   # the amount of width reserved for blank space between subplots,# expressed as a fraction of the average axis width
hspace = 0.6   # the amount of height reserved for white space between subplots,# expressed as a fraction of the average axis heightplt.subplots_adjust(left=left, bottom=bottom, right=right, top=top,wspace=wspace, hspace=hspace)plt.show()
