ELK EFK日志搜索平台 filebeat kafka logstash elasticsearch(es) kibana

介绍

ELK是当前比较主流的分布式日志收集处理工具。
常用日志采集方式： Filebeat→Kafka集群→Logstash→ES→Kibana
Grafana（可视化监控工具）上配置连接ES数据库 进行实时监控

实施步骤：
Filebeat部署在应用服务器上（只负责Logstash的读取和转发，降低CPU负载消耗，确保不会抢占应用资源），Logstash、ES、Kibana在一台服务器上（此处的Logstash负责日志的过滤，会消耗一定的CPU负载，可以考虑如何优化过滤的语法步骤来达到降低负载）。

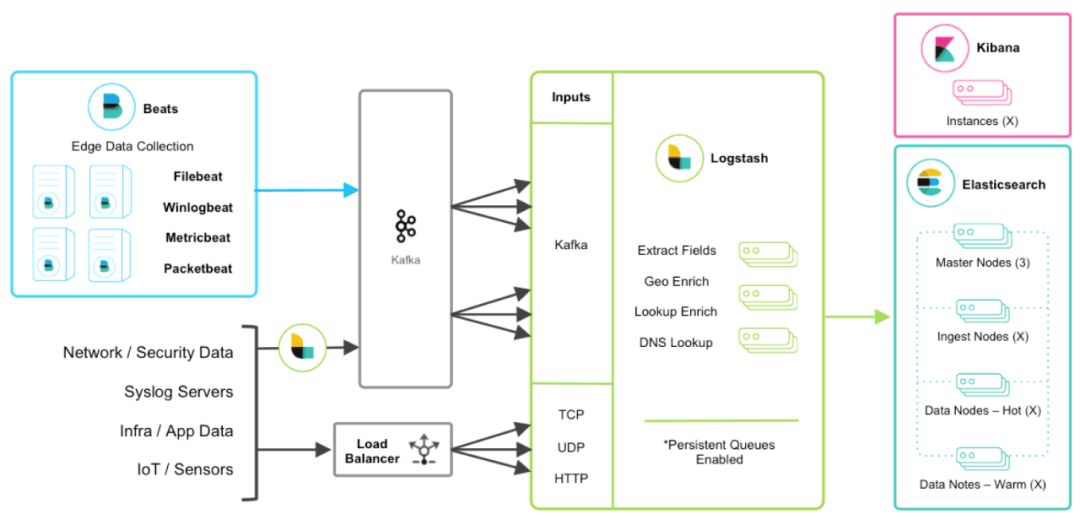

架构图：

主流架构

一、Filebeat+Elasticsearch+Kibana

filebeat 直接输出到 es，kibana做搜索展示

二、Filebeat+Kafka+Logstash+Elasticsearch+kibana

filebeat n台 输出到 kafka集群
logstash 1~3台 接收kafka日志 输出到 es集群，logstash挂1台不影响kafka日志接收。
kibana做搜索展示

通过增加消息队列中间件，来避免数据的丢失。当Logstash出现故障，日志还是存在中间件中，当Logstash再次启动，则会读取中间件中积压的日志

filebeat

docker 部署filebeat 直接到 es

注意 filebeat版本一定要和es 版本一致
logback.xml里日志格式为json

docker run --privileged --name filebeat --net=host -d -m 1000M \--log-driver json-file --log-opt max-size=1024m \-v /data0/filebeat/filebeat.yml:/usr/share/filebeat/filebeat.yml \-v /data0/filebeat/logs:/root \-v /data0/filebeat/data:/data \-v /data0:/home/logs \registry.api.ww.com/bop_ci/filebeat:6.6.0

vi filebeat.yml

filebeat.inputs:
- type: logeabled: truepaths:- /home/logs/bop-fms-account-info/logs/*.log- /home/logs/bop-fms-advertiser-info/logs/*.log- /home/logs/bop-fms-agent-web/logs/*.log- /home/logs/bop-fms-api/logs/*.log- /home/logs/bop-fms-config/logs/*.log- /home/logs/bop-fms-vip-api/logs/*.logignore_older: 12hclean_inactive: 14htags: ["fms-log"]- type: logeabled: truepaths:- /home/logs/bop-cmc-strategy/logs/*.log- /home/logs/qualification/logs/*.log- /home/logs/bop-cmc-customer/logs/*.log- /home/logs/bop-mdm-cmc-diplomat/logs/*.log- /home/logs/bop-asm-api/logs/*.log- /home/logs/bop-asm-message/logs/*.log- /home/logs/bop-asm-notice/logs/*.logignore_older: 12hclean_inactive: 14htags: ["others-log"]json.keys_under_root: true
json.overwrite_keys: truesetup.ilm.enabled: false
setup.template.name: "bop-log"
setup.template.pattern: "bop-log-*"
setup.template.enabled: false
setup.template.overwrite: true
setup.template.settings:index.number_of_shards: 1index.number_of_replicas: 0index.codec: best_compressionoutput.elasticsearch:hosts: ["10.13.177.206:9201"]#index: "bop-log-%{+yyyy.MM.dd}"pipeline: "test-news-server-online"indices:- index: "bop-log-fms-%{+yyyy.MM.dd}"when.contains:tags: "fms-log"- index: "bop-log-others-%{+yyyy.MM.dd}"when.contains:tags: "others-log"processors:- decode_json_fields:fields: ["message"]target: ""overwrite_keys: true- rename:fields:- from: "error"to: "run_error"- drop_fields:fields: ["input_type", "log.offset","log.file.path","beat.version","prospector.type","beat.name", "host.name", "input.type", "agent.hostname"]#ignore_missing: false

到 es 示例2：

# 输出到es
output.elasticsearch:#username: "elastic"#password: "xxxxxxxxxxx"#worker: 1#bulk_max_size: 1500#pipeline: "timestamp-pipeline-id" #@timestamp处理hosts: ["elasticsearch1:9200"]index: "pb-%{[fields.index_name]}-*"indices:- index: "pb-nginx-%{+yyyy.MM.dd}"when.equals:fields.index_name: "nginx_log"- index: "pb-log4j-%{+yyyy.MM.dd}"when.equals:fields.index_name: "log4j_log"- index: "pb-biz-%{+yyyy.MM.dd}"when.equals:fields.index_name: "biz_log"

多行合并

异常堆栈的多行合并问题
在 -type下面增加属性：
multiline:# pattern for error log, if start with space or cause by pattern: '^[[:space:]]+(at|\.{3})\b|^Caused by:'negate:  falsematch:   after

支持es 自定义索引字段的索引类型

setup.template.json.enabled: true
setup.template.json.path: "/usr/share/filebeat/logs_template.json"
setup.template.json.name: "logs_template"

docker 启动命令增加参数
-v /data0/filebeat/logs_template.json:/usr/share/filebeat/logs_template.json
新建logs_template.json

{"index_patterns": ["bop-log-*"],"mappings": {"doc": {"dynamic_templates": [{"strings_as_keyword": {"mapping": {"type": "text","analyzer": "standard","fields": {"keyword": {"type": "keyword"}}},"match_mapping_type": "string","match": "*"}}],"properties": {"httpmethod": {"type": "text","fields": {"keyword": {"ignore_above": 256,"type": "keyword"}}},"responseheader": {"type": "text","fields": {"keyword": {"ignore_above": 256,"type": "keyword"}}},"function": {"type": "text","fields": {"keyword": {"ignore_above": 256,"type": "keyword"}}},"servicename": {"type": "text","fields": {"keyword": {"ignore_above": 256,"type": "keyword"}}},"serviceuri": {"type": "text","fields": {"keyword": {"ignore_above": 256,"type": "keyword"}}},"serviceurl": {"type": "text","fields": {"keyword": {"ignore_above": 256,"type": "keyword"}}},"responsebody": {"type": "text","fields": {"keyword": {"ignore_above": 256,"type": "keyword"}}},"args": {"type": "text","fields": {"keyword": {"ignore_above": 256,"type": "keyword"}}},"requestheader": {"type": "text","fields": {"keyword": {"ignore_above": 256,"type": "keyword"}}}}}}
}

filebeat @timestamp日期处理

在Kibana Management Advanced Settings 搜索Date format 格式化设置成：yyyy-MM-dd HH:mm:ss.SSS
或者
在 Kibana 中的 Devtools 界面中编写如下 pipeline 并执行
查询 GET _ingest/pipeline/timestamp-pipeline-id

PUT _ingest/pipeline/timestamp-pipeline-id
{"description": "timestamp-pipeline-id","processors": [{"grok": {"field": "message","patterns": ["%{TIMESTAMP_ISO8601:timestamp}"],"ignore_failure": true},"date": {"field": "timestamp","timezone": "Asia/Shanghai","formats": ["yyyy-MM-dd HH:mm:ss.SSS"],"ignore_failure": true}}]
}

使用filebeat采集文件到es

docker部署filebeat到es

filebeat采集日志到ES

filebeat7.7.0相关详细配置预览

filebeat7.7.0相关详细配置预览- processors

filebeat采集docker日志

docker部署filebeat到kafka

filebeat采集多个日志（推送给ES或者logstash）

Filebeat+Elasticsearch收集整洁的业务日志

logstash

docker 部署logstash

mkdir /data0/logstash/log -p
cd /data0/logstash

vi logstash.conf

input {kafka {topics => "kafkaTopic"  #kafka的topicbootstrap_servers => ["192.168.1.100:9092"]  #服务器地址codec => "json"  #以Json格式取数据   }
}
output {elasticsearch {hosts => ["192.168.1.110:9009"]  #ES地址index => "errorlog"    #ES index，必须使用小写字母     user => "elastic"      #这里建议使用  elastic 用户password => "**********"}
}

vi logstash.yml

http.host: "0.0.0.0"
#ES地址
xpack.monitoring.elasticsearch.hosts: ["http://192.168.1.110:9009"]
xpack.monitoring.enabled: true
#ES中的内置账户和密码，在ES中配置
xpack.monitoring.elasticsearch.username: logstash_system
xpack.monitoring.elasticsearch.password: *****************

docker pull logstash:6.7.0docker run  --name logstash --privileged=true -p 9007:9600  -d -v /data/logstash/logstash.conf:/usr/share/logstash/pipeline/logstash.conf -v /data/logstash/log/:/home/public/  -v /data/logstash/logstash.yml:/usr/share/logstash/config/logstash.yml logstash:8.1.3

kibana

docker 部署kibana

注意，kibana要和es的版本一致，否则版本不兼容

cd /data0
mkdir kibana
cd kibanadocker run --name kibana  -p 5601:5601 -d kibana:6.6.0
docker cp kibana:/usr/share/kibana/config/kibana.yml .

将如下内容写到kibana.yml中，然后保存退出：:wq

server.name: kibana
server.host: "0"
#elasticsearch.hosts: [ "http://elasticsearch:9200" ]
elasticsearch.hosts: [ "http://自己的elasticsearch的IP:9200" ]
xpack.monitoring.ui.container.elasticsearch.enabled: true
#设置kibana中文显示
i18n.locale: zh-CN

重新启动

docker rm -f kibana
docker run --name kibana -p 5601:5601 -d -v /data0/kibana/kibana.yml:/usr/share/kibana/config/kibana.yml kibana:6.6.0

kibana自动关联es索引

vi auto_add_index.sh

#!/bin/bash
today=`date +%Y.%m.%d`
yestoday=`date -d "1 days ago" +%Y-%m-%d`
pattern='bop-log-'${today}
old_pattern='bop-log-'${yestoday}
index='bop-log-'${today}
echo ${pattern} ${old_pattern}#新增
curl -f -XPOST -H 'Content-Type: application/json' -H 'kbn-xsrf: anything' \"http://localhost:5601/api/saved_objects/index-pattern/${pattern}" -d"{\"attributes\":{\"title\":\"${index}\",\"timeFieldName\":\"@timestamp\"}}"#设置默认索引
curl -f -XPOST -H 'Content-Type: application/json' -H 'kbn-xsrf: anything' http://localhost:5601/api/kibana/settings/defaultIndex -d "{\"value\":\"${pattern}\"}"#删除
curl -XDELETE "http://localhost:5601/api/saved_objects/index-pattern/${old_pattern}" -H 'kbn-xsrf: true'

定时删除索引

kibana DevTools执行
30天后删除

PUT _ilm/policy/logs_policy
{"policy": {"phases": {"delete": {"min_age": "30d","actions": {"delete": {}}}}}
}

kibana 自动创建索引模式

Kibana自动关联ES索引

ELK系列(2) - Kibana怎么修改日期格式Date format

iLogtail

iLogtail用户手册

ilogtail -> kafka -> logstash -> elasticsearch
