UICollectionView详解二:UICollectionViewFlowLayout

2023-12-21 12:58

本文主要是介绍UICollectionView详解二:UICollectionViewFlowLayout,希望对大家解决编程问题提供一定的参考价值,需要的开发者们随着小编来一起学习吧!

本人录制技术视频地址:https://edu.csdn.net/lecturer/1899 欢迎观看。

UICollectionViewFlowLayout是一个具体的layout对象,用来把item布局在网格中,并且可选页眉和页脚。在collection view中的items,可以从一行或者一列flow至下一行或者下一列(行或者列取决于滚动的方向)。每行都会根据情况,包含尽可能多的Cells。Cells可以是相同的尺寸,也可以是不同的尺寸。

页眉页脚的属性如下图


当垂直的时候,需要设置Height,如下图


 当水平的时候,需要设置Width,如下图


Section Inset : 我们先通过两个图来看看Sections Insets是怎么回事





 从上面的两个图中,我们大概知道了,Section Inset就是某个section中cell的边界范围。

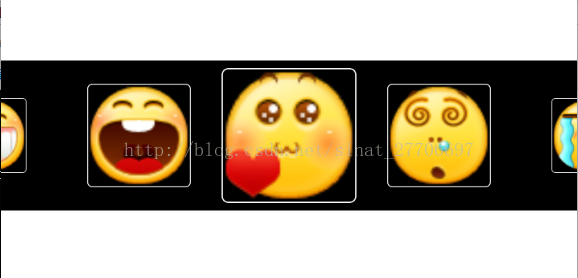

本节中得Demo,就是针对一行进行设计的。效果图如下:



一行显示很多的Icon,并且距中心点越近的Icon,尺寸越大;距离中心点越远的Icon,尺寸逐渐变小。而且在滚动过程中,也是这种效果。

1. 主界面的代码如下(如有不明白的,请参考我上一节讲解的内容,请点击这里):

@interface ViewController ()<UICollectionViewDataSource,UICollectionViewDelegate>
@property (nonatomic,strong) NSMutableArray *images;
@property (nonatomic,weak) UICollectionView *collectionView;
@endstatic NSString *const identifer = @"ImageCell";@implementation ViewController-(NSMutableArray *)images {if (!_images) {_images = [NSMutableArray array];for (int i=1;i<=20;i++) {[_images addObject:[NSString stringWithFormat:@"%d.jpg",i]];}}return _images;
}- (void)viewDidLoad {[super viewDidLoad];CGRect rect = CGRectMake(0, 250, self.view.frame.size.width,200);UICollectionView *collectionView = [[UICollectionView alloc] initWithFrame:rect collectionViewLayout:[[LFFlowLayout alloc] init]];collectionView.dataSource = self;collectionView.delegate = self;// 注册collectionView(因为是从xib中加载cell的,所以registerNib)[collectionView registerNib:[UINib nibWithNibName:@"ImageCell" bundle:nil] forCellWithReuseIdentifier:identifer];[self.view addSubview:collectionView];self.collectionView = collectionView;
}#pragma mark - 点击屏幕空白处,切换布局模式
//- (void)touchesBegan:(NSSet *)touches withEvent:(UIEvent *)event {
//    if ([self.collectionView.collectionViewLayout isKindOfClass:[LFFlowLayout class]]) {
//        [self.collectionView setCollectionViewLayout:[[LFNormalLayout alloc] init] animated:YES];
//    }
//    else{
//        [self.collectionView setCollectionViewLayout:[[LFFlowLayout alloc] init] animated:YES];
//    }
//
//}#pragma mark - delegate
- (NSInteger)collectionView:(UICollectionView *)collectionView numberOfItemsInSection:(NSInteger)section {return  self.images.count;
}- (UICollectionViewCell *)collectionView:(UICollectionView *)collectionView cellForItemAtIndexPath:(NSIndexPath *)indexPath {ImageCell *cell = [collectionView dequeueReusableCellWithReuseIdentifier:identifer forIndexPath:indexPath];cell.iconName = self.images[indexPath.item];return cell;
}- (void)collectionView:(UICollectionView *)collectionView didSelectItemAtIndexPath:(NSIndexPath *)indexPath {// 1. 删除模型数据[self.images removeObjectAtIndex:indexPath.item];// 2. 删除UI元素[collectionView deleteItemsAtIndexPaths:@[indexPath]];
}

2. 自定义一个类,继承自UICollectionViewFlowLayout

@interface LFFlowLayout : UICollectionViewFlowLayout@end

3. 控制布局的主要代码如下,有以下几点,我进行说明:

1) prepareLayout 方法可以对布局中得内容进行初始化工作。如果init方法中执行的代码不起作用,可以放在prepareLayout中。

- (void)prepareLayout {[super prepareLayout];...
}
2)   允许CollectionView Bounds发生变化时,重新进行布局, 要实现下面的方法

- (BOOL)shouldInvalidateLayoutForBoundsChange:(CGRect)newBounds {return YES;
}

3) 流式处理中最关键的方法如下,用来获取CollectionView的所有Item项的layout,进行相印的处理。

-(NSArray *)layoutAttributesForElementsInRect:(CGRect)rect {...
}
4) 对于Item的细节计算,可以调用下面的方法,完成定位处理。

- (CGPoint)targetContentOffsetForProposedContentOffset:(CGPoint)proposedContentOffset withScrollingVelocity:(CGPoint)velocity {...
}


完整的实现代码如下:

#define kItemWidth 100#import "LFFlowLayout.h"@implementation LFFlowLayout-(instancetype)init
{if(self=[super init]){}return self;
}- (void)prepareLayout {[super prepareLayout];// 设置为水平滚动self.scrollDirection = UICollectionViewScrollDirectionHorizontal;// 设置每个Item之间的距离self.minimumLineSpacing = 100;// 重新设置Item的尺寸,不然的话,有等比例缩小的可能self.itemSize = CGSizeMake(kItemWidth, kItemWidth);
}#pragma mark - 重写父类的方法
- (BOOL)shouldInvalidateLayoutForBoundsChange:(CGRect)newBounds {return YES;
}// 获取CollectionView的所有Item项,进行相印的处理(移动过程中,控制各个Item的缩放比例)
-(NSArray *)layoutAttributesForElementsInRect:(CGRect)rect {NSArray *array = [super layoutAttributesForElementsInRect:rect];CGFloat inset = (self.collectionView.frame.size.width - kItemWidth) * 0.5;// 设置第一个和最后一个默认居中显示self.collectionView.contentInset = UIEdgeInsetsMake(0, inset, 0, inset);CGRect visibleRect;visibleRect.origin =self.collectionView.contentOffset;visibleRect.size = self.collectionView.frame.size;CGFloat collectionViewCenterX = self.collectionView.contentOffset.x + self.collectionView.frame.size.width * 0.5;for (UICollectionViewLayoutAttributes *attrs in array) {// 只处理正在界面上面显示的Itemif(!CGRectIntersectsRect(visibleRect, attrs.frame)) continue;// 计算各个Item的缩放比例(距离中线越近,缩放比例就越大)CGFloat scale;// 防止突变的情况(当Item的中心与collectionView中心的距离大于等于collectionView宽度的一半时,Item不缩放,平稳过度)if(ABS(attrs.center.x - collectionViewCenterX) >= self.collectionView.frame.size.width * 0.5){scale = 1;}else{scale = 1 + 0.8 * (1 - ABS(attrs.center.x - collectionViewCenterX) / (self.collectionView.frame.size.width * 0.5));}attrs.transform3D = CATransform3DMakeScale(scale, scale, 1);}return array;
}// 当UICollectionView停止的那一刻ContentOffset的值(控制UICollectionView停止时,有一个Item一定居中显示)
// 1.proposedContentOffset默认的ContentOffset
- (CGPoint)targetContentOffsetForProposedContentOffset:(CGPoint)proposedContentOffset withScrollingVelocity:(CGPoint)velocity {//1. 获取UICollectionView停止的时候的可视范围CGRect contentFrame;contentFrame.size = self.collectionView.frame.size;contentFrame.origin = proposedContentOffset;NSArray *array = [self layoutAttributesForElementsInRect:contentFrame];//2. 计算在可视范围的距离中心线最近的ItemCGFloat minCenterX = CGFLOAT_MAX;CGFloat collectionViewCenterX = proposedContentOffset.x + self.collectionView.frame.size.width * 0.5;for (UICollectionViewLayoutAttributes *attrs in array) {if(ABS(attrs.center.x - collectionViewCenterX) < ABS(minCenterX)){minCenterX = attrs.center.x - collectionViewCenterX;}}//3. 补回ContentOffset,则正好将Item居中显示return CGPointMake(proposedContentOffset.x + minCenterX, proposedContentOffset.y);
}@end


这篇关于UICollectionView详解二:UICollectionViewFlowLayout的文章就介绍到这儿,希望我们推荐的文章对编程师们有所帮助!
