Kaggle--桑坦德客户交易预测比赛总结（初始版本，0.900）

本文主要是介绍Kaggle--桑坦德客户交易预测比赛总结（初始版本，0.900），希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

桑坦德客户交易预测

赛题描述：给定200000个训练样本和200000个测试样本，总共200个特征，进行二元分类，需要输出的时属于1（正类）的概率，评价指标是ROC曲线下的面积
roc解释可以参考本篇博文
数据集下载连接

首先，进行初始化，对数据进行探索性分析

from sklearn.model_selection import train_test_split
from sklearn.model_selection import StratifiedKFold
from sklearn.ensemble import RandomForestClassifier
from sklearn.tree import DecisionTreeClassifier
from catboost import CatBoostClassifier,Pool
from IPython.display import display
from sklearn.metrics import roc_auc_score, roc_curve
import matplotlib.patches as patch
import matplotlib.pyplot as plt
from sklearn.svm import NuSVR
from scipy.stats import norm
from sklearn import svm
import lightgbm as lgb
import xgboost as xgb
import seaborn as sns
import pandas as pd
import numpy as np
import warnings
import time
import glob
import sys
import os
import gc

# 初始化
fold_n=4
# 分层采样，确保训练集，测试集中各类别样本的比例与原始数据集中相同。
folds = StratifiedKFold(n_splits=fold_n, shuffle=True, random_state=30)#可以直接在你的python console里面生成图像s
%matplotlib inline
%precision 4
warnings.filterwarnings('ignore')  #忽略警告
plt.style.use('ggplot')  #设置绘图格式
np.set_printoptions(suppress=True)  #设置小数的输出格式
pd.set_option("display.precision", 15)   # 设置最大打印列数，15列

print('pandas: {}'.format(pd.__version__))
print('numpy: {}'.format(np.__version__))
print('Python: {}'.format(sys.version))

pandas: 0.23.4
numpy: 1.15.1
Python: 3.7.0 (default, Jun 28 2018, 08:04:48) [MSC v.1912 64 bit (AMD64)]

# 查看此目录下有多少文件
print(os.listdir(r"D:/study/Python/Kaggle/SCTP/"))

['.ipynb_checkpoints', 'catboost_info', 'sample_submission.csv', 'SCTP-linear.py', 'SCTP-SVM.py', 'SCTP.py', 'SCTP_1.ipynb', 'test.csv', 'test.py', 'train.csv']

# 加载数据
train= pd.read_csv(r"D:/study/Python/Kaggle/SCTP/train.csv")
test = pd.read_csv(r"D:/study/Python/Kaggle/SCTP/test.csv")

# 查看提交样本示例
sample_submission = pd.read_csv(r"D:/study/Python/Kaggle/SCTP/sample_submission.csv")
print(sample_submission.head())

 ID_code  target
0  test_0       0
1  test_1       0
2  test_2       0
3  test_3       0
4  test_4       0

# 查看数据集的大小
train.shape, test.shape, sample_submission.shape

((200000, 202), (200000, 201), (200000, 2))

# 查看数据
train.head(5)

	ID_code	target	var_0	var_1	var_2	var_3	var_4	var_5	var_6	var_7	...	var_190	var_191	var_192	var_193	var_194	var_195	var_196	var_197	var_198	var_199
0	train_0	0	8.925500000000000	-6.7863	11.908099999999999	5.093000000000000	11.460699999999999	-9.2834	5.1187	18.626600000000000	...	4.4354	3.9642	3.1364	1.691000000000000	18.522700000000000	-2.3978	7.8784	8.563499999999999	12.780300000000000	-1.091400000000000
1	train_1	0	11.500600000000000	-4.1473	13.858800000000000	5.388999999999999	12.362200000000000	7.0433	5.6208	16.533799999999999	...	7.6421	7.7214	2.5837	10.951599999999999	15.430500000000000	2.0339	8.1267	8.788900000000000	18.355999999999998	1.951800000000000
2	train_2	0	8.609299999999999	-2.7457	12.080500000000001	7.892800000000000	10.582500000000000	-9.0837	6.9427	14.615500000000001	...	2.9057	9.7905	1.6704	1.685800000000000	21.604199999999999	3.1417	-6.5213	8.267500000000000	14.722200000000001	0.396500000000000
3	train_3	0	11.060400000000000	-2.1518	8.952199999999999	7.195700000000000	12.584600000000000	-1.8361	5.8428	14.925000000000001	...	4.4666	4.7433	0.7178	1.421400000000000	23.034700000000001	-1.2706	-2.9275	10.292199999999999	17.969700000000000	-8.999599999999999
4	train_4	0	9.836900000000000	-1.4834	12.874599999999999	6.637500000000000	12.277200000000001	2.4486	5.9405	19.251400000000000	...	-1.4905	9.5214	-0.1508	9.194200000000000	13.287599999999999	-1.5121	3.9267	9.503100000000000	17.997399999999999	-8.810400000000000

train.columns

Index(['ID_code', 'target', 'var_0', 'var_1', 'var_2', 'var_3', 'var_4','var_5', 'var_6', 'var_7',...'var_190', 'var_191', 'var_192', 'var_193', 'var_194', 'var_195','var_196', 'var_197', 'var_198', 'var_199'],dtype='object', length=202)

# 数值描述
train.describe()

	target	var_0	var_1	var_2	var_3	var_4	var_5	var_6	var_7	var_8	...	var_190	var_191	var_192	var_193	var_194	var_195	var_196	var_197	var_198	var_199
count	200000.000000000000000	200000.000000000000000	200000.000000000000000	200000.000000000000000	200000.000000000000000	200000.000000000000000	200000.000000000000000	200000.000000000000000	200000.000000000000000	200000.000000000000000	...	200000.000000000000000	200000.000000000000000	200000.00000000000000	200000.000000000000000	200000.000000000000000	200000.000000000000000	200000.000000000000000	200000.000000000000000	200000.000000000000000	200000.000000000000000
mean	0.100490000000000	10.679914252000151	-1.627621689499992	10.715191851000073	6.796529157000018	11.078333240500118	-5.065317493499968	5.408948681499958	16.545849889500108	0.284161849999996	...	3.234439775999965	7.438408337000044	1.92783851400003	3.331773684500021	17.993784182999992	-0.142088433500005	2.303335243500019	8.908157683499990	15.870720248000522	-3.326536900499999
std	0.300652975806355	3.040050870668801	4.050044189955011	2.640894191799927	2.043319016359718	1.623149533936866	7.863266683476754	0.866607266216908	3.418075578937139	3.332633536717585	...	4.559921679910722	3.023271794723963	1.47842289233660	3.992030367901846	3.135161996426620	1.429372364408401	5.454369250069321	0.921625484493855	3.010945491221765	10.438015107352546
min	0.000000000000000	0.408400000000000	-15.043400000000000	2.117100000000000	-0.040200000000000	5.074800000000000	-32.562600000000003	2.347300000000000	5.349700000000000	-10.505500000000000	...	-14.093299999999999	-2.691700000000000	-3.81450000000000	-11.783400000000000	8.694400000000000	-5.261000000000000	-14.209600000000000	5.960600000000000	6.299300000000000	-38.852800000000002
25%	0.000000000000000	8.453850000000001	-4.740025000000000	8.722474999999999	5.254075000000000	9.883175000000000	-11.200350000000000	4.767700000000000	13.943800000000000	-2.317800000000000	...	-0.058825000000000	5.157400000000000	0.88977500000000	0.584600000000000	15.629799999999999	-1.170700000000000	-1.946925000000000	8.252800000000001	13.829700000000001	-11.208475000000000
50%	0.000000000000000	10.524750000000001	-1.608050000000000	10.580000000000000	6.825000000000000	11.108250000000000	-4.833150000000000	5.385100000000000	16.456800000000001	0.393700000000000	...	3.203600000000000	7.347750000000000	1.90130000000000	3.396350000000000	17.957949999999997	-0.172700000000000	2.408900000000000	8.888199999999999	15.934050000000001	-2.819550000000000
75%	0.000000000000000	12.758200000000000	1.358625000000000	12.516700000000000	8.324100000000000	12.261125000000002	0.924800000000000	6.002999999999999	19.102900000000002	2.937900000000000	...	6.406200000000000	9.512525000000000	2.94950000000000	6.205800000000000	20.396524999999997	0.829600000000000	6.556725000000000	9.593299999999999	18.064724999999999	4.836800000000000
max	1.000000000000000	20.315000000000001	10.376799999999999	19.352999999999998	13.188300000000000	16.671399999999998	17.251600000000000	8.447699999999999	27.691800000000001	10.151300000000001	...	18.440899999999999	16.716500000000000	8.40240000000000	18.281800000000000	27.928799999999999	4.272900000000000	18.321500000000000	12.000400000000001	26.079100000000000	28.500699999999998

# 可视化
train['target'].value_counts().plot.bar()

在这里插入图片描述

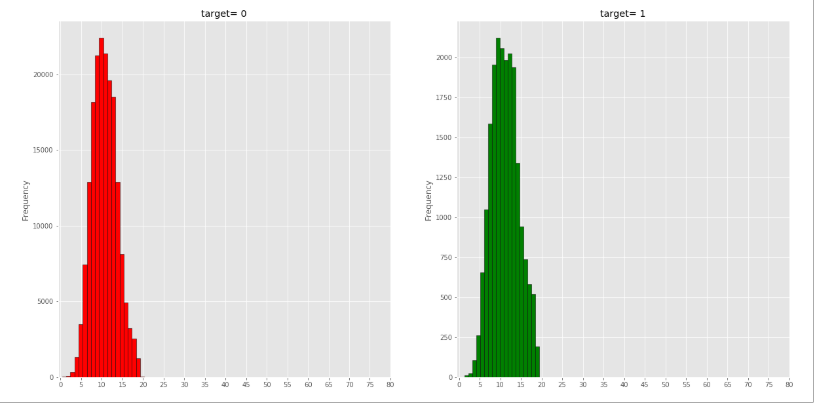

# 通过改变var_0/1/2.。。。。的值，查看各个特征的分布情况，基本都属正态分布
f,ax=plt.subplots(1,2,figsize=(20,10))
train[train['target']==0].var_0.plot.hist(ax=ax[0],bins=20,edgecolor='black',color='red')
ax[0].set_title('target= 0')
x1=list(range(0,85,5))
ax[0].set_xticks(x1)
train[train['target']==1].var_0.plot.hist(ax=ax[1],color='green',bins=20,edgecolor='black')
ax[1].set_title('target= 1')
x2=list(range(0,85,5))
ax[1].set_xticks(x2)
plt.show()

在这里插入图片描述

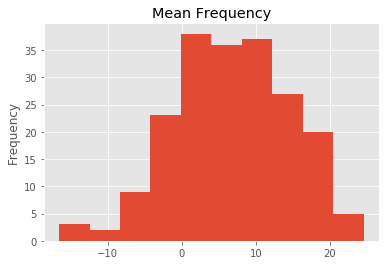

# 查看每一列的均值的分布
train[train.columns[2:]].mean().plot('hist')
plt.title('Mean Frequency')
# print(train.columns[2:])
# print(train[train.columns[2:]])
# print(train[train.columns[2:]].mean())

在这里插入图片描述

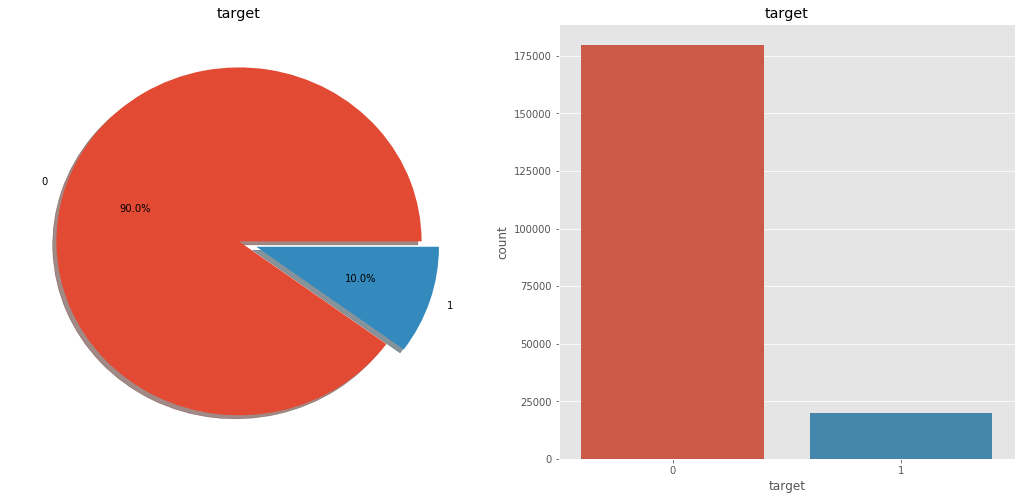

# 画饼图和柱状图
f,ax=plt.subplots(1,2,figsize=(18,8))
train['target'].value_counts().plot.pie(explode=[0,0.1],autopct='%1.1f%%',ax=ax[0],shadow=True)
ax[0].set_title('target')
ax[0].set_ylabel('')
sns.countplot('target',data=train,ax=ax[1])
ax[1].set_title('target')
plt.show()

在这里插入图片描述

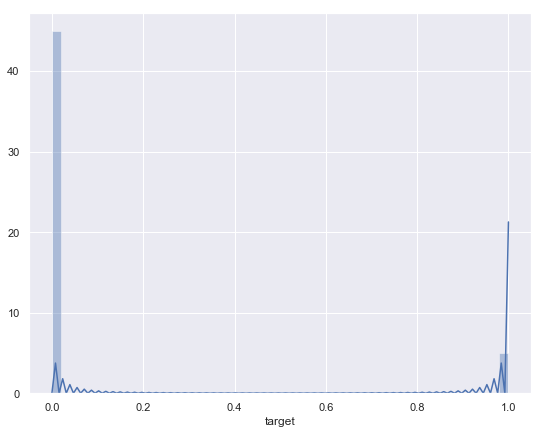

# 数据分布不均衡
sns.set(rc={'figure.figsize':(9,7)})
sns.distplot(train['target']);

在这里插入图片描述

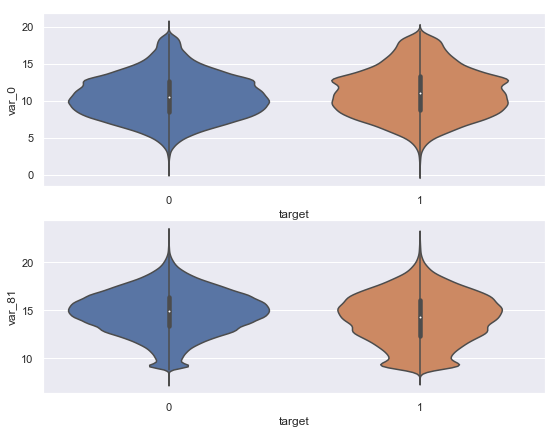

plt.subplot(2,1,1)
sns.violinplot(data=train,x="target", y="var_0")
plt.subplot(2,1,2)
sns.violinplot(data=train,x="target", y="var_81")

在这里插入图片描述

# 检查是否有缺失值
def check_missing_data(df):flag=df.isna().sum().any()if flag==True:total = df.isnull().sum()percent = (df.isnull().sum())/(df.isnull().count()*100)output = pd.concat([total, percent], axis=1, keys=['Total', 'Percent'])data_type = []# written by MJ Bahmanifor col in df.columns:dtype = str(df[col].dtype)data_type.append(dtype)output['Types'] = data_typereturn(np.transpose(output))else:return(False)print(check_missing_data(train))
print(check_missing_data(test))

没有缺失值

False
False

train['target'].unique()

array([0, 1], dtype=int64)

# 数据不平衡时，应该怎么办
# 一般的方法是进行上采样或下采样，但是在本次比赛中，均无效
train['target'].value_counts()

0    179902
1     20098
Name: target, dtype: int64

# 很明显，0非常多，1非常少
# 统计0，1占的百分比
# 数据不平衡的解决方案就是过采样或者下采样
def check_balance(df,target):check=[]# written by MJ Bahmani for binary targetprint('size of data is:',df.shape[0] )for i in [0,1]:print('for target  {} ='.format(i))print(df[target].value_counts()[i]/df.shape[0]*100,'%')

check_balance(train,'target')

size of data is: 200000
for target  0 =89.95100000000001 %
for target  1 =10.049 %

# 偏度和峰度
print("Skewness: %f" % train['target'].skew())
print("Kurtosis: %f" % train['target'].kurt())

Skewness: 2.657642
Kurtosis: 5.063112

X = train.drop(["target","ID_code"],axis = 1)
y = train['target']
X_test = test.drop('ID_code',axis = 1)train_X, val_X, train_y, val_y = train_test_split(X, y, random_state=1)
rfc_model = RandomForestClassifier(random_state=0).fit(train_X, train_y)

# 用eli5库计算特征的重要性，最上边的时最重要的
import eli5
from eli5.sklearn import PermutationImportanceperm = PermutationImportance(rfc_model, random_state=1).fit(val_X, val_y)
eli5.show_weights(perm, feature_names = val_X.columns.tolist())

Weight	Feature
0.0002 ± 0.0002	var_110
0.0001 ± 0.0001	var_157
0.0001 ± 0.0001	var_162
0.0001 ± 0.0001	var_42
0.0001 ± 0.0002	var_170
0.0001 ± 0.0002	var_174
0.0001 ± 0.0001	var_188
0.0001 ± 0.0001	var_147
0.0001 ± 0.0001	var_197
0.0001 ± 0.0001	var_47
0.0001 ± 0.0001	var_95
0.0001 ± 0.0002	var_148
0.0001 ± 0.0001	var_93
0.0001 ± 0.0001	var_184
0.0001 ± 0.0001	var_133
0.0001 ± 0.0001	var_185
0.0001 ± 0.0001	var_183
0.0001 ± 0.0000	var_158
0.0001 ± 0.0001	var_150
0.0001 ± 0.0002	var_6
… 180 more …

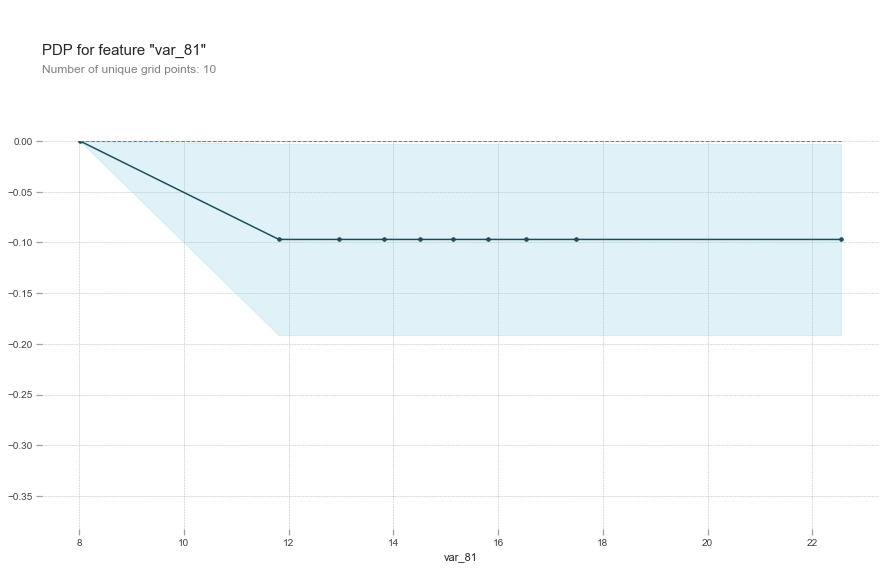

# 部分依赖图，显示特征如何影响预测
train_X, val_X, train_y, val_y = train_test_split(X, y, random_state=1)
tree_model = DecisionTreeClassifier(random_state=0, max_depth=5, min_samples_split=5).fit(train_X, train_y)

features = [c for c in train.columns if c not in ['ID_code','target']]

from matplotlib import pyplot as plt
from pdpbox import pdp, get_dataset, info_plots# Create the data that we will plot
pdp_goals = pdp.pdp_isolate(model=tree_model, dataset=val_X, model_features=features, feature='var_81')# plot it
pdp.pdp_plot(pdp_goals, 'var_81')
plt.show()

在这里插入图片描述

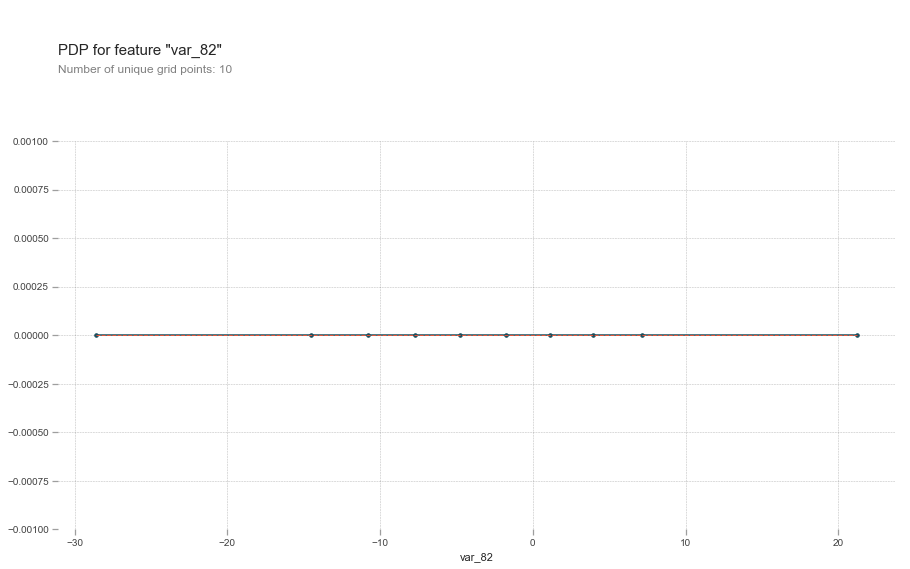

# Create the data that we will plot
pdp_goals = pdp.pdp_isolate(model=tree_model, dataset=val_X, model_features=features, feature='var_82')# plot it
pdp.pdp_plot(pdp_goals, 'var_82')
plt.show()

在这里插入图片描述

# Create the data that we will plot
pdp_goals = pdp.pdp_isolate(model=tree_model, dataset=val_X, model_features=features, feature='var_139')# plot it
pdp.pdp_plot(pdp_goals, 'var_139')
plt.show()

在这里插入图片描述

from sklearn import tree
import graphviz
# shape 用于预测每个特征对结果的贡献程度
row_to_show = 5
data_for_prediction = val_X.iloc[row_to_show]  # use 1 row of data here. Could use multiple rows if desired
data_for_prediction_array = data_for_prediction.values.reshape(1, -1)rfc_model.predict_proba(data_for_prediction_array);

# 以下程序在本人电脑上报错
# from sklearn import tree
# import graphviz
# import numpy as np
# import shap  # package used to calculate Shap values# # Create object that can calculate shap values
# explainer = shap.TreeExplainer(rfc_model)# # Calculate Shap values
# shap_values = explainer.shap_values(data_for_prediction)

# X = train.drop(["target","ID_code"],axis = 1)
# y = train['target']
# train_X, val_X, train_y, val_y = train_test_split(X, y, random_state=1)

以上是进行探索性数据分析，以下是使用模型进行预测

第一步，导入相应的库和对数据进行预处理

from sklearn.model_selection import train_test_split
from sklearn.model_selection import StratifiedKFold
from sklearn.ensemble import RandomForestClassifier
from sklearn.tree import DecisionTreeClassifier
from sklearn.metrics import roc_auc_score, roc_curve
from catboost import CatBoostClassifier,Pool
from sklearn import metrics
from catboost import CatBoostClassifier,Pool
from IPython.display import display
import matplotlib.patches as patch
import matplotlib.pyplot as plt
from sklearn.svm import NuSVR
from scipy.stats import norm
from sklearn import svm
import lightgbm as lgb
import xgboost as xgb
import seaborn as sns
import pandas as pd
import numpy as np
import warnings
import time
import glob
import sys
import os
import gc# 初始化
warnings.filterwarnings('ignore')  #忽略警告
plt.style.use('ggplot')  #设置绘图格式
np.set_printoptions(suppress=True)  #设置小数的输出格式
pd.set_option("display.precision", 15)   # 设置最大打印列数，15列# 使用原始数据，进行分层采样，即使正负样本数量差别很大，按照比例进行分层，交叉验证。def loadData():# 加载数据train= pd.read_csv(r"D:/study/Python/Kaggle/SCTP/train.csv")test = pd.read_csv(r"D:/study/Python/Kaggle/SCTP/test.csv")# 查看提交样本示例# sample_submission = pd.read_csv(r"D:/study/Python/Kaggle/SCTP/sample_submission.csv")# print(sample_submission.head())X = train.drop(["target","ID_code"],axis = 1)y = train['target']X_test = test.drop('ID_code',axis = 1)X = round(X,3)x_test = round(X_test,3)train_X, val_X, train_y, val_y = train_test_split(X, y, random_state=1)return (X,y,train_X, val_X, train_y, val_y,X_test)
X,y,train_X, val_X, train_y, val_y,X_test = loadData()
print(X.head())

                var_0  var_1               var_2  var_3               var_4  \
0   8.926000000000000 -6.786  11.907999999999999  5.093  11.461000000000000
1  11.500999999999999 -4.147  13.859000000000000  5.389  12.362000000000000
2   8.609000000000000 -2.746  12.080000000000000  7.893  10.582000000000001
3  11.060000000000000 -2.152   8.952000000000000  7.196  12.585000000000001
4   9.837000000000000 -1.483  12.875000000000000  6.638  12.276999999999999   var_5  var_6               var_7  var_8              var_9  \
0 -9.282999999999999  5.119  18.626999999999999 -4.920  5.747000000000000
1  7.043000000000000  5.621  16.533999999999999  3.147  8.085000000000001
2 -9.084000000000000  6.943  14.616000000000000 -4.919  5.952000000000000
3 -1.836000000000000  5.843  14.925000000000001 -5.861  8.244999999999999
4  2.449000000000000  5.940  19.251000000000001  6.265  7.678000000000000   ...     var_190            var_191  var_192             var_193  \
0   ...       4.435  3.964000000000000    3.136   1.691000000000000
1   ...       7.642  7.721000000000000    2.584  10.952000000000000
2   ...       2.906  9.789999999999999    1.670   1.686000000000000
3   ...       4.467  4.743000000000000    0.718   1.421000000000000
4   ...      -1.490  9.521000000000001   -0.151   9.194000000000001   var_194  var_195            var_196             var_197  \
0  18.523000000000000   -2.398  7.878000000000000   8.564000000000000
1  15.430000000000000    2.034  8.127000000000001   8.789000000000000
2  21.603999999999999    3.142 -6.521000000000000   8.268000000000001
3  23.035000000000000   -1.271 -2.928000000000000  10.292000000000000
4  13.288000000000000   -1.512  3.927000000000000   9.503000000000000   var_198  var_199
0  12.779999999999999   -1.091
1  18.356000000000002    1.952
2  14.722000000000000    0.396
3  17.969999999999999   -9.000
4  17.997000000000000   -8.810  [5 rows x 200 columns]
1
def lgbModel(X,y,train_X, val_X, train_y, val_y,X_test):
23fold_n=5

第二步：构建相应的模型

def lgbModel(X,y,train_X, val_X, train_y, val_y,X_test):fold_n=5# 分层采样，确保训练集，测试集中各类别样本的比例与原始数据集中相同。folds = StratifiedKFold(n_splits=fold_n, shuffle=True, random_state=30)# 用lgb模型进行预测params = {'num_leaves': 13,'min_data_in_leaf': 42,'objective': 'binary','max_depth': 16,'learning_rate': 0.0123,'boosting': 'gbdt','bagging_freq': 5,'bagging_fraction': 0.8,'feature_fraction': 0.8201,'bagging_seed': 11,'reg_alpha': 1.728910519108444,'reg_lambda': 4.9847051755586085,'random_state': 42,'metric': 'auc','verbosity': -1,'subsample': 0.81,'min_gain_to_split': 0.01077313523861969,'min_child_weight': 19.428902804238373,'num_threads': 28}prediction_lgb = np.zeros((len(X_test),5))for fold_n, (train_index, valid_index) in enumerate(folds.split(X,y)):print('Fold', fold_n, 'started at', time.ctime())X_train, X_valid = X.iloc[train_index], X.iloc[valid_index]y_train, y_valid = y.iloc[train_index], y.iloc[valid_index]train_data = lgb.Dataset(X_train, label=y_train)valid_data = lgb.Dataset(X_valid, label=y_valid)model = lgb.train(params,train_data,num_boost_round=20000,valid_sets = [train_data, valid_data],verbose_eval=300,early_stopping_rounds = 100)#y_pred_valid = model.predict(X_valid)prediction_lgb[:,fold_n] = model.predict(X_test, num_iteration=model.best_iteration)return prediction_lgb

def catBC(X,y,train_X, val_X, train_y, val_y,X_test):auc_catBC = []prediction_catBC = np.zeros((len(X_test),4))fold_n=4# 分层采样，确保训练集，测试集中各类别样本的比例与原始数据集中相同。folds = StratifiedKFold(n_splits=fold_n, shuffle=True, random_state=30)m = CatBoostClassifier(loss_function="Logloss",eval_metric="AUC",task_type="GPU",learning_rate=0.01,iterations=10000,random_seed=42,od_type="Iter",depth=10,early_stopping_rounds=500)for fold_n, (train_index, valid_index) in enumerate(folds.split(X,y)):print('Fold', fold_n, 'started at', time.ctime())X_train, X_valid = X.iloc[train_index], X.iloc[valid_index]y_train, y_valid = y.iloc[train_index], y.iloc[valid_index]train_pool = Pool(X_train,y_train)valid_pool = Pool(X_valid,y_valid)m.fit(train_pool,eval_set=valid_pool,use_best_model=True,verbose=200, plot=True)y_pred_1 = m.predict_proba(X_valid)  #有两列，一列是0的概率，一列是1的概率auc1 = metrics.roc_auc_score(y_valid, y_pred_1[:,1])print('第',str(fold_n),'次,交叉验证集上auc为：',auc1)auc_catBC.append(auc1)prediction_catBC[:,fold_n] = m.predict_proba(X_test)[:,1]return auc_catBC,prediction_catBC

def xgbModel(X,y,train_X, val_X, train_y, val_y,X_test):auc_xgb = []prediction_xgb = np.zeros((len(X_test),4))fold_n=4# 分层采样，确保训练集，测试集中各类别样本的比例与原始数据集中相同。folds = StratifiedKFold(n_splits=fold_n, shuffle=True, random_state=30)model = xgb.XGBClassifier(max_depth=2,n_estimators=15000,colsample_bytree=0.3,learning_rate=0.02,objective='binary:logistic', eval_metric = 'auc',n_jobs=-1)for fold_n, (train_index, valid_index) in enumerate(folds.split(X,y)): print('Fold', fold_n, 'started at', time.ctime())X_train, X_valid = X.iloc[train_index], X.iloc[valid_index]y_train, y_valid = y.iloc[train_index], y.iloc[valid_index]model.fit(X_train, y_train, eval_set=[(X_valid, y_valid)], verbose=200, early_stopping_rounds=500)y_pred_1 = model.predict_proba(X_valid)auc1 = metrics.roc_auc_score(y_valid, y_pred_1[:,1])print('第',str(fold_n),'次,交叉验证集上auc为：',auc1)auc_xgb.append(auc1)prediction_xgb[:,fold_n] = model.predict_proba(X_test)[:,1]return auc_xgb,prediction_xgb

第三步，进行预测

X,y,train_X, val_X, train_y, val_y,X_test = loadData()prediction_lgb = lgbModel(X,y,train_X, val_X, train_y, val_y,X_test)auc,prediction_catBC = catBC(X,y,train_X, val_X, train_y, val_y,X_test)auc,prediction_xgb = xgbModel(X,y,train_X, val_X, train_y, val_y,X_test)
