【逻辑学习笔记】MIG中各种时钟的含义和如何设置

目录

MIG整体介绍

MIG的时钟架构

MIG配置过程中时钟的含义和设置

Clock Period

PHY to Controller Clock Ratio

VCCAUX_IO

Input Clock Period

System Clock

Reference Clock

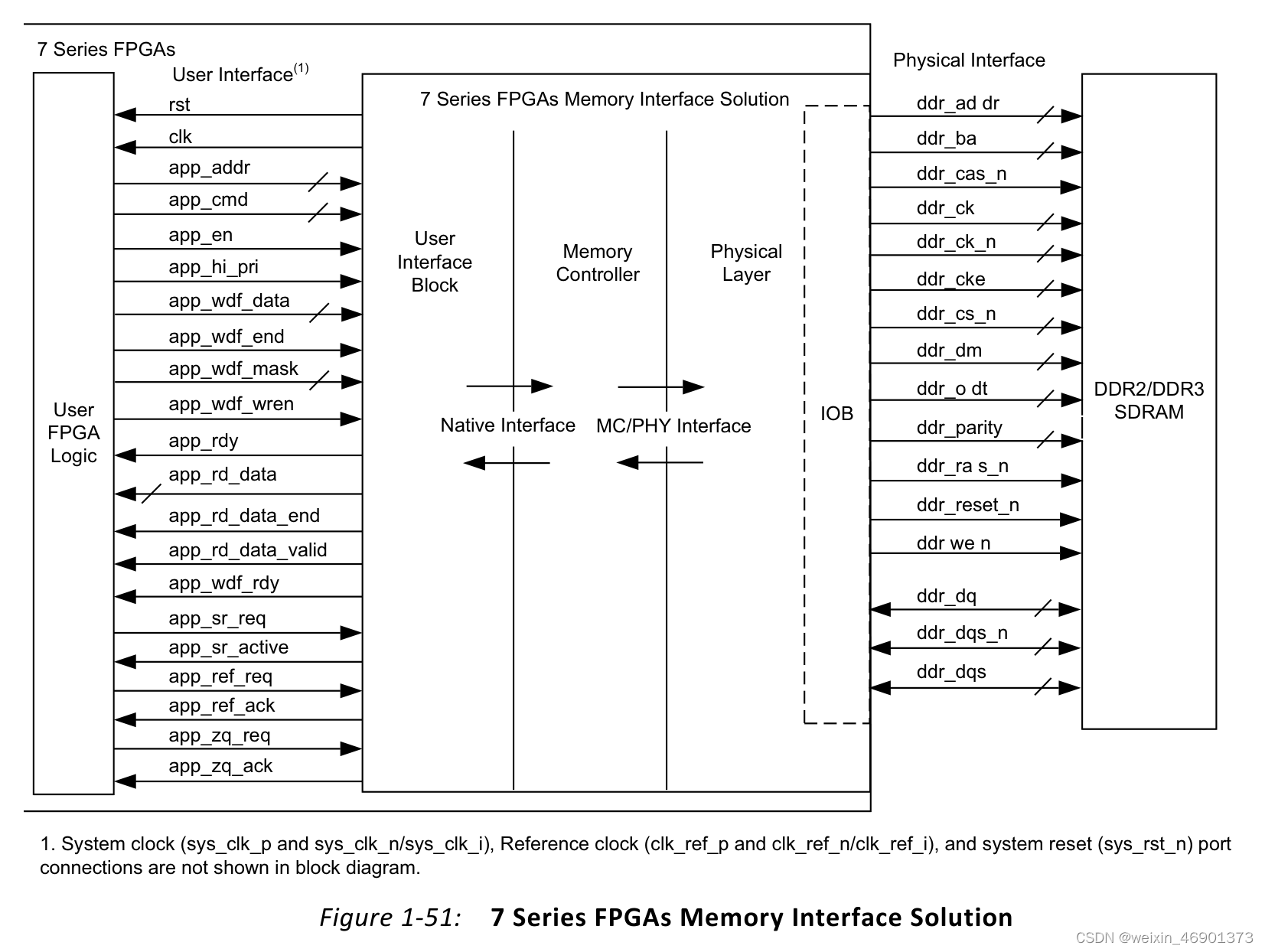

MIG整体介绍

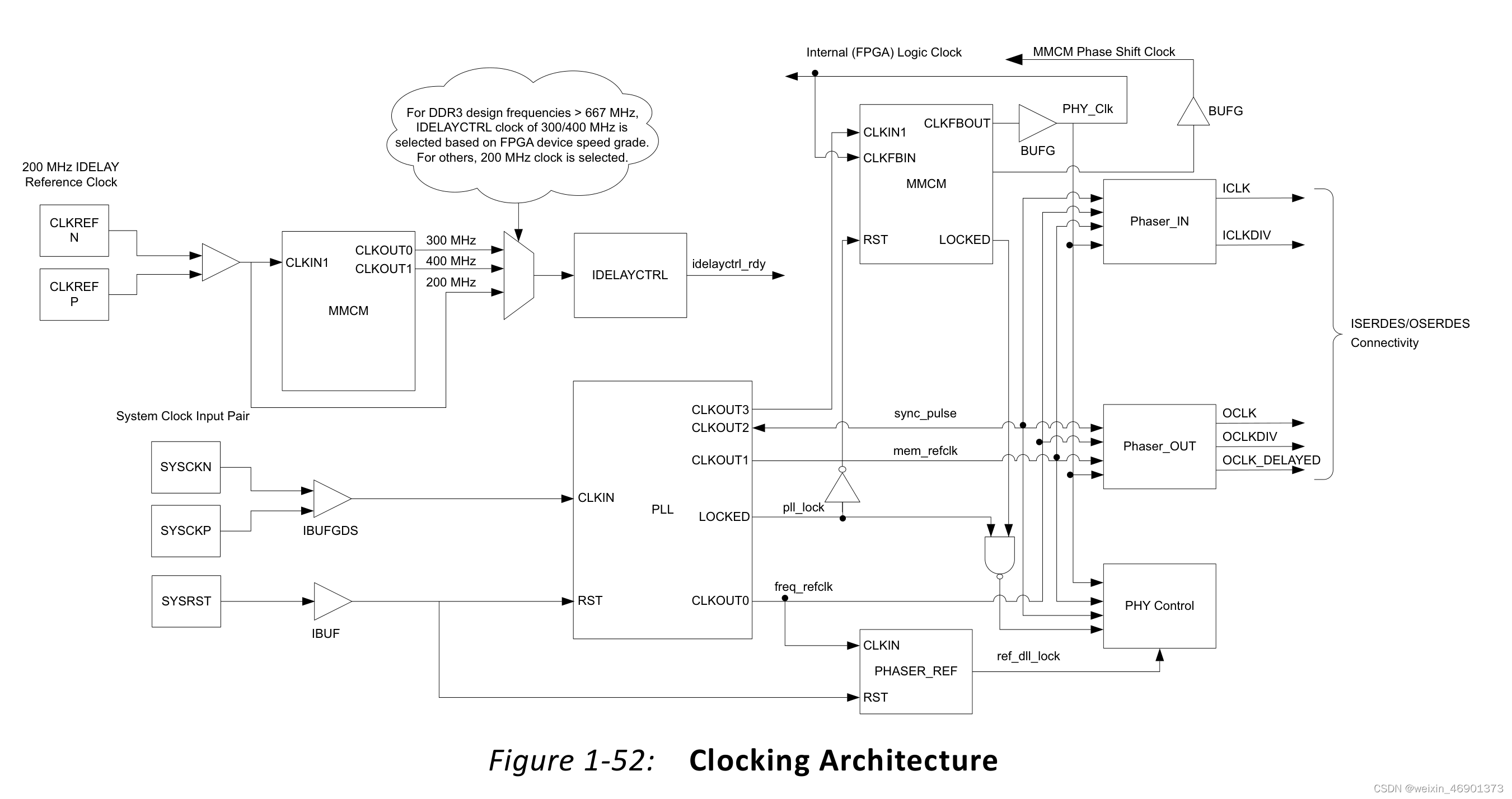

MIG的时钟架构

从上面的时钟架构中，可以看出，有以下几种时钟：

MIG配置过程中时钟的含义和设置

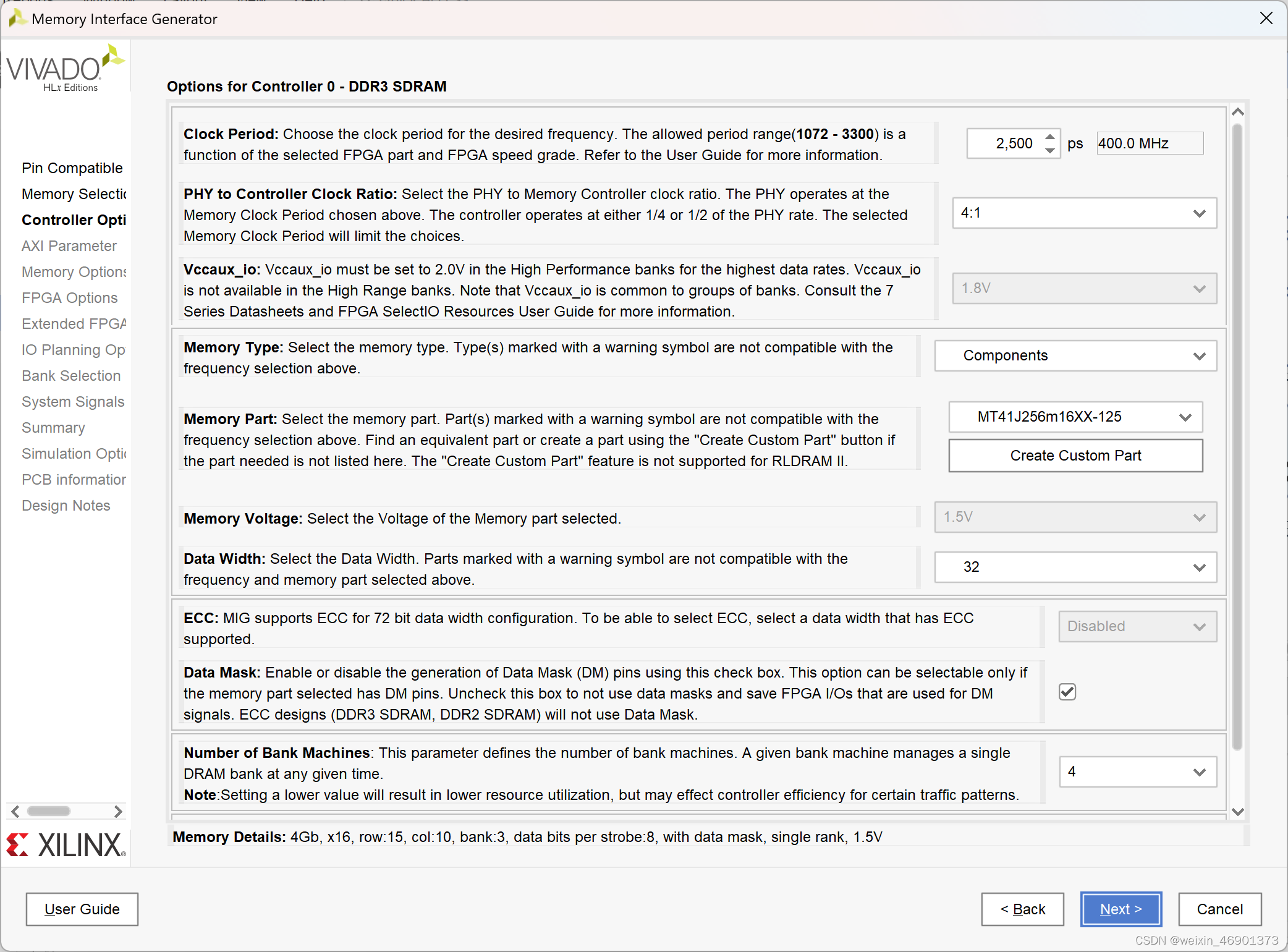

Clock Period

operating frequency for all of the controllers，指控制器controller与DDR之间的数据访问时钟，X2就是数据速率

PHY to Controller Clock Ratio

• the ratio of the physical layer (memory) clock frequency to the controller and user interface clock frequency。比如下图中，4:1，对应控制器controller的时钟是400MHz，用户接口ui的时钟是100MHz
• The 2:1 ratio has lower latency. The 4:1 ratio is necessary for the highest data rates

VCCAUX_IO

• 2.0V is required at the highest frequency settings in the High Performance column
• Either 1.8 or 2.0V can be used at lower frequencies

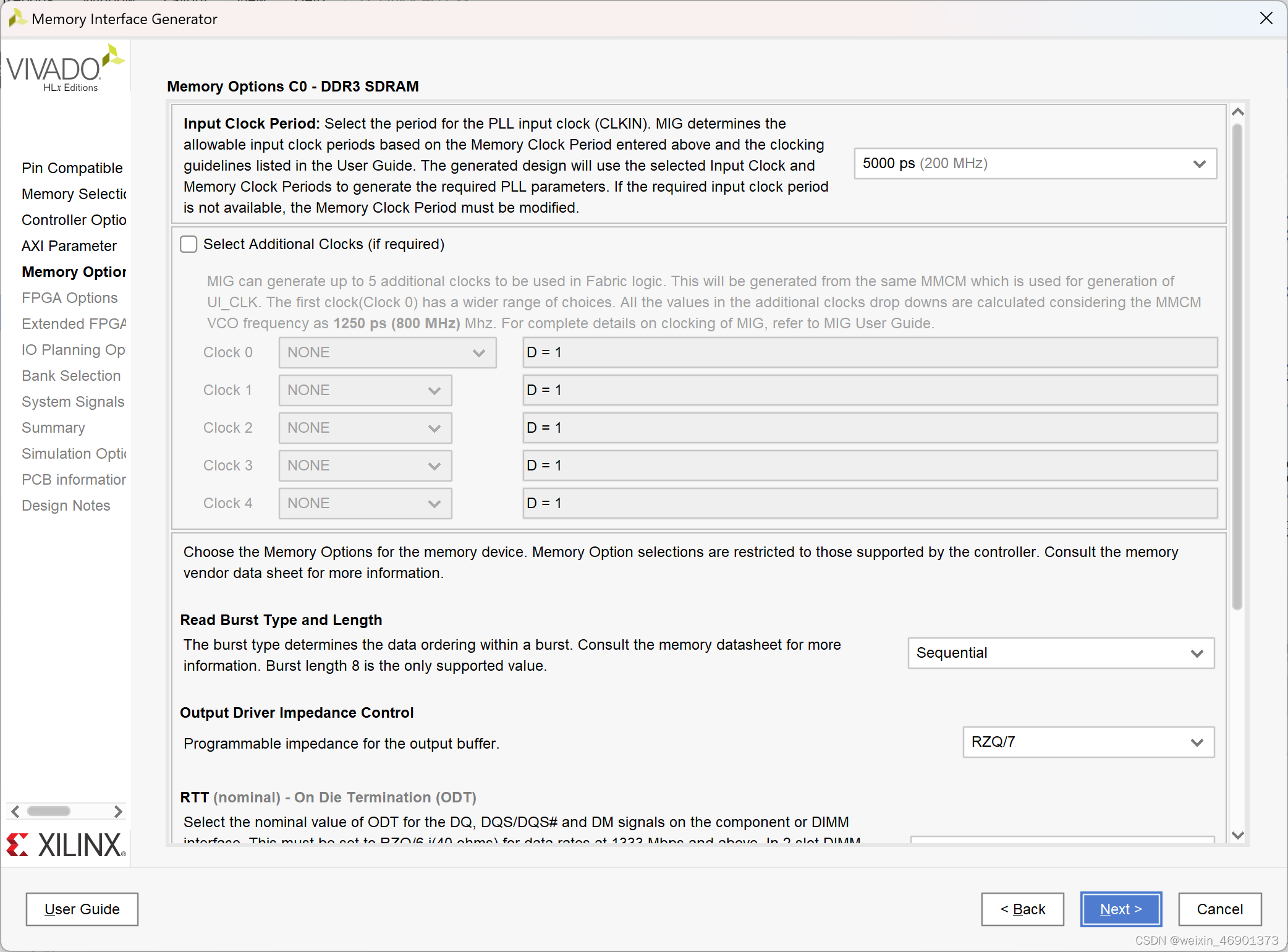

Input Clock Period

The desired input clock period is selected from the list. These values are determined by the memory clock period chosen and the allowable limits of the parameters

指的就是时钟架构种的系统时钟sys_clk，对于mig来说就是input clock

System Clock

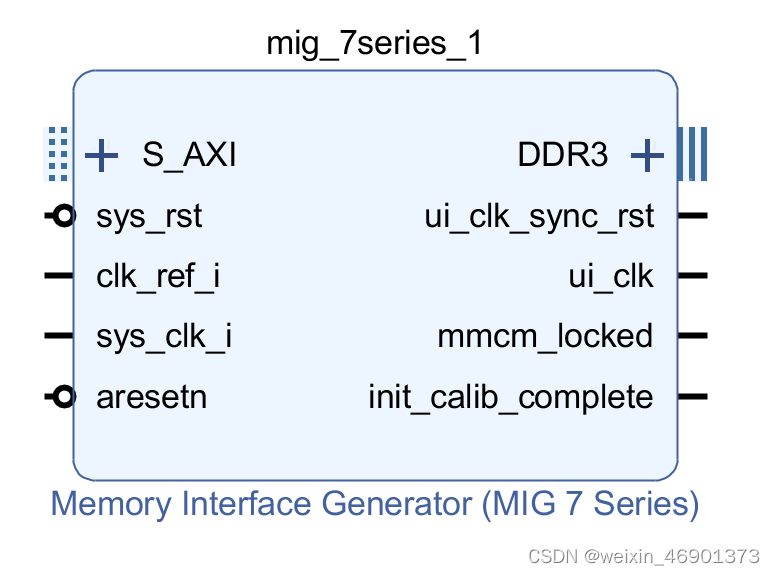

• No Buffer scenarios, sys_clk_i signal needs to be connected to an internal clock
• 在block design的设计中，因为sys_clk使用内部时钟（即clk_wiz倍频出），所以使用no buffer
• 这里和上一页的Input Clock Period其实是指的一个时钟，上一页选择频率，这一页选择输入方式，可以外部提供（single-end，differential），也可以内部提供（no buffer）。

Reference Clock

• The Use System Clock option appears when the input frequency is between 199 and 201 MHz (that is, the Input Clock Period is between 5,025 ps (199 MHz) and 4,975 ps (201 MHz)。
• 即系统时钟200MHz时，可以选择use system clock
