MIL视觉基础加载和保存图像20220301

目录

一、MIL视觉常用五大对象

二、加载和保存图像的方法

三、程序代码

一、MIL视觉常用五大对象

MIL视觉常用五大对象

二、加载和保存图像的方法

三、程序代码

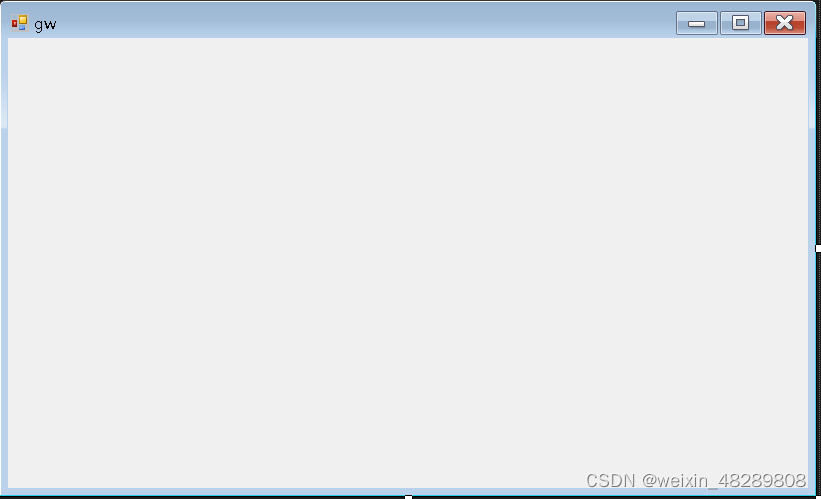

 WinForm界面

Form代码

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;//引用MIL库
using Matrox.MatroxImagingLibrary;namespace Showpic_20220301
{public partial class Form1 : Form{MIL_ID milapplication = MIL.M_NULL;     //程序标识符MIL_ID milsystem = MIL.M_NULL;          //系统标识符MIL_ID mildisplay = MIL.M_NULL;         //显示标识符MIL_ID milimage = MIL.M_NULL;           //图像缓存区标识符public Form1(){//窗体初始化InitializeComponent();//分配默认应用MIL.MappAllocDefault(MIL.M_DEFAULT, ref milapplication, ref milsystem, MIL.M_NULL, MIL.M_NULL, MIL.M_NULL);//加载图像showpic();}/// <summary>/// 加载并显示图像/// </summary>public void showpic(){//从本地读取一张图像分配于缓存中MIL.MbufRestore("C:/Users/Asus/Desktop/guowei.jpg", milsystem, ref milimage);//MIL.MbufImport("C:/Users/Asus/Desktop/guowei.jpg", MIL.M_DEFAULT, MIL.M_RESTORE, milsystem, ref milimage);//分配显示displayif (mildisplay != MIL.M_NULL){MIL.MdispFree(mildisplay);}MIL.MdispAlloc(milsystem, MIL.M_DEFAULT, "m_default", MIL.M_WINDOWED, ref mildisplay);//选择窗口显示图像MIL.MdispSelectWindow(mildisplay, milimage, this.Handle);//图像居中且自适应窗口MIL.MdispControl(mildisplay, MIL.M_SCALE_DISPLAY, MIL.M_ENABLE);}/// <summary>/// 关闭窗口时释放缓存/// </summary>/// <param name="sender"></param>/// <param name="e"></param>private void forml_close(object sender, EventArgs e){MIL.MbufFree(milimage);MIL.MdispFree(mildisplay);MIL.MappFreeDefault(milapplication, milsystem, MIL.M_NULL, MIL.M_NULL, MIL.M_NULL);}/// <summary>/// 自适应窗口大小/// </summary>/// <param name="sender"></param>/// <param name="e"></param>private void forml_sizechanged(object sender, EventArgs e){this.Refresh();}}
}

Form1.Desinger代码

namespace Showpic_20220301
{partial class Form1{/// <summary>/// 必需的设计器变量。/// </summary>private System.ComponentModel.IContainer components = null;/// <summary>/// 清理所有正在使用的资源。/// </summary>/// <param name="disposing">如果应释放托管资源，为 true；否则为 false。</param>protected override void Dispose(bool disposing){if (disposing && (components != null)){components.Dispose();}base.Dispose(disposing);}#region Windows 窗体设计器生成的代码/// <summary>/// 设计器支持所需的方法 - 不要修改/// 使用代码编辑器修改此方法的内容。/// </summary>private void InitializeComponent(){this.SuspendLayout();// // Form1// this.AutoScaleDimensions = new System.Drawing.SizeF(8F, 15F);this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;this.ClientSize = new System.Drawing.Size(800, 450);this.Name = "Form1";this.Text = "gw";this.FormClosed += new System.Windows.Forms.FormClosedEventHandler(this.forml_close);this.SizeChanged += new System.EventHandler(this.forml_sizechanged);this.ResumeLayout(false);}#endregion}
}

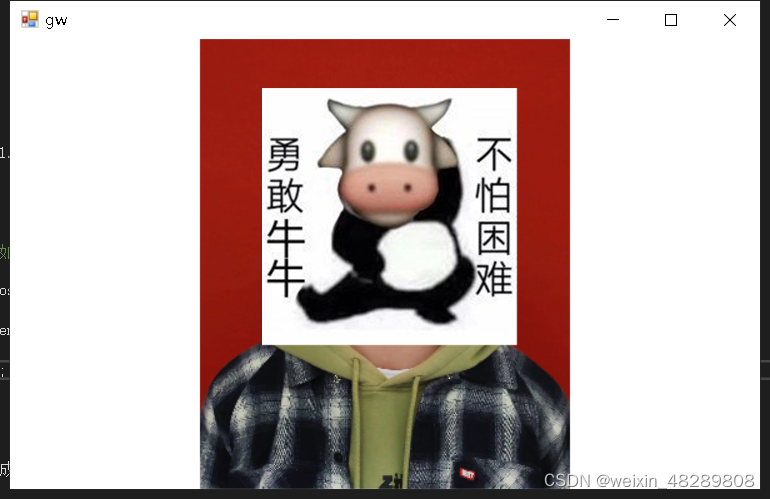

程序运行结果

参考原文MIL教程_文洲的专栏-CSDN博客https://blog.csdn.net/wenzhou1219/category_9262307.html
