threejs实现贴花效果

引用：官方源码
在官方给出的源码中采用的模型格式是tfgl格式，查看源码可知新建DecalGeometry对象时，传入的参数为mesh, position, orientation, size，因此对obj文件不可以直接操作，需要遍历obj中的children，在这里采用drc格式（drc为使用Draco压缩后的格式）的模型实现贴花效果。
DecalGeometry源码中传入的参数：

function DecalGeometry( mesh, position, orientation, size )｛...｝

实现贴花效果，需要借助DecalGeometry.js，因此要其进行引入：

<script src="js/geometries/DecalGeometry.js"></script>

接着新建贴花时需要的参数，raycaster用于拾取鼠标点击的对象，intersection中有intersect、point、normal，intersect为boolean用于判断鼠标点击的位置是否属于模型表面，point与normal用于存储鼠标点击模型时的point与normal。

var mouse=new THREE.Vector2();
var moved;//
var line;//跟随鼠标
var raycaster;//拾取射线
var intersection;//相交线
var decalPosition;//贴花位置
var decalOrientation;//贴花方向
var decalMaterial;//贴花材质
var decals;//贴花数组
var decalSize;//贴花数组
var mouseHelper;

对参数进行初始化，首先在场景中添加line，若物体表面出现线条，则表明当前位置允许进行贴花操作，通过textureLoader加载所需要的贴花纹理：

function initDecalData(){let geometry=new THREE.BufferGeometry();geometry.setFromPoints([new THREE.Vector3(),new THREE.Vector3()]);line=new THREE.Line(geometry,new THREE.LineBasicMaterial({color:0xff0000}));scene.add(line);decalSize=new THREE.Vector3( 10, 10, 10 );decalPosition=new THREE.Vector3();decalOrientation=new THREE.Euler();decals=[];mouseHelper = new THREE.Mesh( new THREE.BoxBufferGeometry( 1, 1, 10 ), new THREE.MeshNormalMaterial() );mouseHelper.visible = false;scene.add( mouseHelper );//let textureLoader=new THREE.TextureLoader();let decalDiffuse=textureLoader.load( 'textures/decal/decal-diffuse.png' );//贴花 let decalNormal=textureLoader.load( 'textures/decal/decal-normal.jpg' );decalMaterial=new THREE.MeshLambertMaterial( {pecular: 0x444444,map: decalDiffuse,//贴花图normalMap: decalNormal,//法向量纹理normalScale: new THREE.Vector2( 1, 1 ),shininess: 30,transparent: true,//透明度depthTest: true,depthWrite: false,polygonOffset: true,polygonOffsetFactor: - 4,wireframe: false} );intersection={//相交线intersects:false,point:new THREE.Vector3(),normal:new THREE.Vector3()};}

通过拾取射线对选取的贴花的位置进行判断，是否位于模型表面。当位于模型表面时，获取点击模型时的point：

function checkIntersection(){if(!model) return;raycaster=new THREE.Raycaster();//拾取射线raycaster.setFromCamera(mouse,camera);let intersects=raycaster.intersectObjects([model]);//console.log(intersects);if(intersects.length>0){//在模型表面let modelPoint=intersects[0].point;//获取模型的pointmouseHelper.position.copy(modelPoint);intersection.point.copy(modelPoint);let modelNormal=intersects[0].face.normal;//.clone();modelNormal.transformDirection(model.matrixWorld);modelNormal.multiplyScalar(10);modelNormal.add(modelPoint);intersection.normal.copy(modelNormal);mouseHelper.lookAt(modelNormal);let decalPosition=line.geometry.attributes.position;decalPosition.setXYZ(0,modelPoint.x,modelPoint.y,modelPoint.z);decalPosition.setXYZ(1,modelNormal.x,modelNormal.y,modelNormal.z);decalPosition.needsUpdate=true;intersection.intersects=true;//在模型表面 则贴花}else{intersection.intersects=false;}
}

将需要进行贴花操作的模型、获取的point即decalPosition等传入DecalGeometry中，进行贴花操作：

function shoot() {//实现贴花decalPosition.copy( intersection.point );decalOrientation.copy( mouseHelper.rotation );// if ( params.rotate ) orientation.z = Math.random() * 2 * Math.PI;//params为GUI组件// var scale = params.minScale + Math.random() * ( params.maxScale - params.minScale );// size.set( scale, scale, scale );var material = decalMaterial.clone();//克隆贴花材质material.color.setHex( Math.random() * 0xffffff );var m = new THREE.Mesh( new THREE.DecalGeometry( model, decalPosition, decalOrientation, decalSize ), material );decals.push( m );//放入数组中，为了后续的清除操作scene.add( m );//场景中添加贴花console.log(decals);
}

事件监听部分，需要将鼠标点击的二维坐标转换为三维坐标：

			window.addEventListener( 'mousedown', function () {moved = false;}, false );window.addEventListener( 'mouseup', function () {//鼠标抬起checkIntersection();//判断是否为合理的位置if ( ! moved && intersection.intersects ) shoot();//进行贴花} );window.addEventListener( 'mousemove', onTouchMove );window.addEventListener( 'touchmove', onTouchMove );function onTouchMove( event ) {//获取三维场景的坐标var x, y;if ( event.changedTouches ) {x = event.changedTouches[ 0 ].pageX;y = event.changedTouches[ 0 ].pageY;} else {x = event.clientX;y = event.clientY;}mouse.x = ( x / window.innerWidth ) * 2 - 1;mouse.y = - ( y / window.innerHeight ) * 2 + 1;//console.log(mouse.x+","+mouse.y);checkIntersection();//合理的位置内线条始终跟着鼠标}

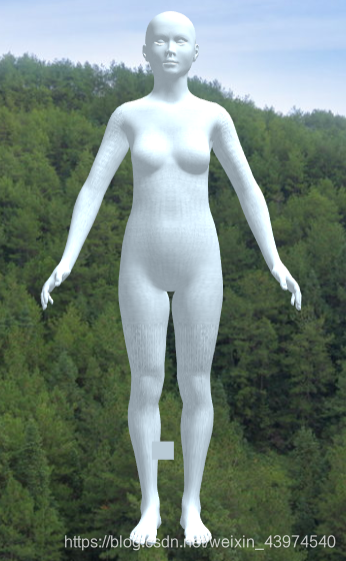

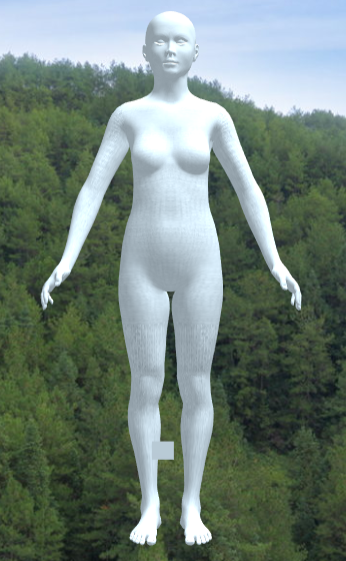

运行代码后，点击模型中的任意位置，都可以实现贴花效果，实现如下：

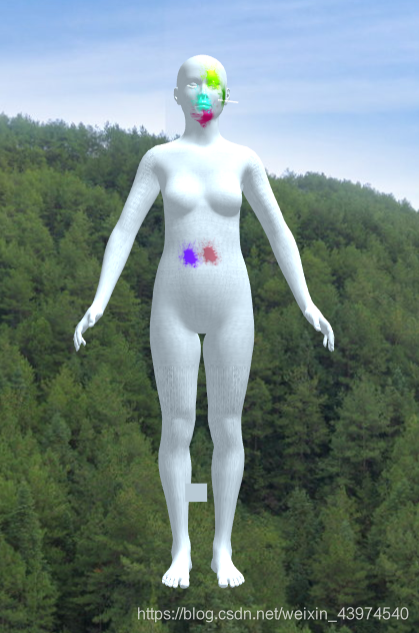

点击后：

完整代码：
HTML部分：

<!DOCTYPE html>
<html>
<head><meta charset="utf-8"><title>贴花</title><script type="text/javascript" src="build/three.js"></script><script type="text/javascript" src="js/loaders/DRACOLoader.js"></script><script type="text/javascript" src="js/loaders/OBJLoader.js"></script><script type="text/javascript" src="js/loaders/MTLLoader.js"></script><script type="text/javascript" src="js/geometries/DecalGeometry.js"></script><script type="text/javascript" src="js/controls/OrbitControls.js"></script>
</head>
<body><div id="webgl-out"></div><script type="text/javascript"  src="drcDecals.js"></script>
</body>
</html>

JS部分：

var scene;
var camera;
var renderer;
var ambientLight,spotLight;
var orbitControls;
var model;
var box;var mouse=new THREE.Vector2();
var moved;//
var line;//跟随鼠标
var raycaster;//拾取射线
var intersection;//相交线
var decalPosition;//贴花位置
var decalOrientation;//贴花方向
var decalMaterial;//贴花材质
var decals;//贴花数组
var decalSize;//贴花数组
var mouseHelper;init();
animate();function init(){moved = false;initScene();initRenderer();initCamera();addOrbitControls();addLight();initDecalData();addModeldrc({//添加模型 drcPath:"obj/OM132326单150dpi_OM132326/",drcName:"OM132326单150dpi_OM132326_outside.drc",texturePath:"obj/OM132326单150dpi_OM132326/OM132326单150dpi_OM132326-textures/",textureName:"outside_tex_3a1887db.png"});document.getElementById("webgl-out").appendChild(renderer.domElement);window.addEventListener("resize",onWindowResize,false);orbitControls.addEventListener( 'change', function () {		moved = true;} );window.addEventListener( 'mousedown', function () {moved = false;}, false );window.addEventListener( 'mouseup', function () {//鼠标抬起checkIntersection();//判断是否为合理的位置if ( ! moved && intersection.intersects ) shoot();//进行贴花} );window.addEventListener( 'mousemove', onTouchMove );window.addEventListener( 'touchmove', onTouchMove );function onTouchMove( event ) {//获取三维场景的坐标var x, y;if ( event.changedTouches ) {x = event.changedTouches[ 0 ].pageX;y = event.changedTouches[ 0 ].pageY;} else {x = event.clientX;y = event.clientY;}mouse.x = ( x / window.innerWidth ) * 2 - 1;mouse.y = - ( y / window.innerHeight ) * 2 + 1;//console.log(mouse.x+","+mouse.y);checkIntersection();//合理位置内线条始终跟着鼠标}
}
function initScene(){scene=new THREE.Scene();}
function initRenderer(){renderer=new THREE.WebGLRenderer({antialias:true});//抗锯齿renderer.setSize(window.innerWidth,window.innerHeight);renderer.setPixelRatio( window.devicePixelRatio );renderer.setClearColor(new THREE.Color(0x4f6cca));}
function initCamera(){camera=new THREE.PerspectiveCamera( 45, window.innerWidth/window.innerHeight, 1, 1000 );camera.position.set(0,0,500);scene.add(camera);
}
function addOrbitControls(){orbitControls=new THREE.OrbitControls(camera,renderer.domElement);orbitControls.autoRotate=false;orbitControls.zoomSpeed=1.2;orbitControls.rotateSpeed=0.5;orbitControls.stopAutoRotateWhenTuch=true;orbitControls.enableDamping=false;orbitControls.minDistance=60;orbitControls.maxDistance=900;orbitControls.intensity=0.1;//灵敏度orbitControls.enablePan=true;//启用右键}
function addLight(){ambientLight=new THREE.AmbientLight( {color:0x0fffff} );scene.add(ambientLight);spotLight=new THREE.SpotLight({color:0xffffff});spotLight.position.set(100,300,1300);scene.add(spotLight);
}
function addModeldrc(drcDef){//加载drc文件var material;var textureLoader=new THREE.TextureLoader();var dracoLoader=new THREE.DRACOLoader();THREE.DRACOLoader.setDecoderConfig( { type: 'js' } );//js类型//dracoLoader.setPath("obj/OM132326单150dpi_OM132326/");dracoLoader.setPath(drcDef.drcPath);//dracoLoader.load("OM132326单150dpi_OM132326.drc",function(mesh){dracoLoader.load(drcDef.drcName,function(mesh){//var texture=new THREE.ImageUtils.loadTexture(texturePath+"outside_tex_3a1887db.png");var texture=new THREE.ImageUtils.loadTexture(drcDef.texturePath+drcDef.textureName);material=new THREE.MeshLambertMaterial();//material.side=THREE.FrontSide;material.side=THREE.BreakSide;material.map=texture;material.needsUpdate=true;model=new THREE.Mesh(mesh,material);setModelPosition(model);scene.add(model);},onProgress, onError);var onProgress = function ( xhr ) {if ( xhr.lengthComputable ) {var percentComplete = xhr.loaded / xhr.total * 100;console.log( Math.round(percentComplete, 2) + '% downloaded' );}};var onError = function ( xhr ) { alert("错误了") ;};}
function setModelPosition(model){box=new THREE.Box3().setFromObject(model);var scaleNum=1;var modelMax=box.max;var modelMin=box.min;var modelWidth=modelMax.x-modelMin.x;var modelHeight=modelMax.y-modelMin.y;if(modelWidth>window.innerWidth/10){scaleNum=window.innerWidth/(10*modelWidth);model.scale.set(scaleNum,scaleNum,scaleNum);//设置模型的缩放大小}if(modelHeight>window.innerHeight/3){if(scaleNum>window.innerHeight/(3*modelHeight)){scaleNum=window.innerHeight/(3*modelHeight);model.scale.set(scaleNum,scaleNum,scaleNum);//设置模型的缩放大小}}console.log(scaleNum);box.max.x*=scaleNum;//重置包围盒的大小box.max.y*=scaleNum;box.max.z*=scaleNum;box.min.x*=scaleNum;box.min.y*=scaleNum;box.min.z*=scaleNum;console.log(box);console.log(model.position);box.getCenter(model.position);model.position.multiplyScalar(-1);
}
function initDecalData(){let geometry=new THREE.BufferGeometry();geometry.setFromPoints([new THREE.Vector3(),new THREE.Vector3()]);line=new THREE.Line(geometry,new THREE.LineBasicMaterial({color:0xff0000}));scene.add(line);decalSize=new THREE.Vector3( 10, 10, 10 );decalPosition=new THREE.Vector3();decalOrientation=new THREE.Euler();decals=[];mouseHelper = new THREE.Mesh( new THREE.BoxBufferGeometry( 1, 1, 10 ), new THREE.MeshNormalMaterial() );mouseHelper.visible = false;scene.add( mouseHelper );//let textureLoader=new THREE.TextureLoader();let decalDiffuse=textureLoader.load( 'textures/decal/decal-diffuse.png' );//贴花 let decalNormal=textureLoader.load( 'textures/decal/decal-normal.jpg' );decalMaterial=new THREE.MeshLambertMaterial( {pecular: 0x444444,map: decalDiffuse,//贴花图normalMap: decalNormal,//法向量纹理normalScale: new THREE.Vector2( 1, 1 ),shininess: 30,transparent: true,//透明度depthTest: true,depthWrite: false,polygonOffset: true,polygonOffsetFactor: - 4,wireframe: false} );intersection={//相交线intersects:false,point:new THREE.Vector3(),normal:new THREE.Vector3()};}
function checkIntersection(){if(!model) return;raycaster=new THREE.Raycaster();//拾取射线raycaster.setFromCamera(mouse,camera);let intersects=raycaster.intersectObjects([model]);//console.log(intersects);if(intersects.length>0){//在模型表面let modelPoint=intersects[0].point;//获取模型的pointmouseHelper.position.copy(modelPoint);intersection.point.copy(modelPoint);let modelNormal=intersects[0].face.normal;//.clone();modelNormal.transformDirection(model.matrixWorld);modelNormal.multiplyScalar(10);modelNormal.add(modelPoint);intersection.normal.copy(modelNormal);mouseHelper.lookAt(modelNormal);let decalPosition=line.geometry.attributes.position;decalPosition.setXYZ(0,modelPoint.x,modelPoint.y,modelPoint.z);decalPosition.setXYZ(1,modelNormal.x,modelNormal.y,modelNormal.z);decalPosition.needsUpdate=true;intersection.intersects=true;//在模型表面 则贴花}else{intersection.intersects=false;}
}
function shoot() {//实现贴花decalPosition.copy( intersection.point );decalOrientation.copy( mouseHelper.rotation );// if ( params.rotate ) orientation.z = Math.random() * 2 * Math.PI;//params为GUI组件// var scale = params.minScale + Math.random() * ( params.maxScale - params.minScale );// size.set( scale, scale, scale );var material = decalMaterial.clone();//克隆贴花材质material.color.setHex( Math.random() * 0xffffff );var m = new THREE.Mesh( new THREE.DecalGeometry( model, decalPosition, decalOrientation, decalSize ), material );decals.push( m );//放入数组中，为了后续的清除操作scene.add( m );//场景中添加贴花console.log(decals);
}
function onWindowResize(){camera.aspect=window.innerWidth/window.innerHeight;camera.updateProjectionMatrix();renderer.setSize(window.innerWidth,window.innerHeight);
}
function animate(){requestAnimationFrame(animate);render();}
function render(){renderer.render(scene,camera);
}
