google 响应式编程 agera 试用

google 在本月也发布了一个响应式框架:agera[超级不好发音] 关于响应式编程 可以参考我的博客RxJava与RxAndroid,这里不再赘述;

目前google这个agera框架还是测试版 不建议拉入正式项目 适合预研！

第一步:添加依赖

   https://github.com/google/agera



  compile 'com.google.android.agera:agera:1.0.0-rc2'

  在她基础上google又扩展了几个框架:

   android.content 例如 广播和sharedPrefrence:             compile 'com.google.android.agera:content:1.0.0-rc2'

   database                                                                             compile 'com.google.android.agera:database:1.0.0-rc2'

   网络                                  compile 'com.google.android.agera:net:1.0.0-rc2'

 recyclerView的RxAdapter               compile 'com.google.android.agera:rvadapter:1.0.0-rc2'



第二步:当然是看官方例咯:

public class AgeraActivity extends Activityimplements Receiver<Bitmap>, Updatable {private static final ExecutorService NETWORK_EXECUTOR =newSingleThreadExecutor();private static final ExecutorService DECODE_EXECUTOR =newSingleThreadExecutor();private static final String BACKGROUND_BASE_URL ="http://www.gravatar.com/avatar/4df6f4fe5976df17deeea19443d4429d?s=";private Repository<Result<Bitmap>> background;private ImageView backgroundView;@Overrideprotected void onCreate(final Bundle savedInstanceState) {super.onCreate(savedInstanceState);// Set the content viewsetContentView(R.layout.activity_main);// Find the background viewbackgroundView = (ImageView) findViewById(R.id.background);// Create a repository containing the result of a bitmap request. Initially// absent, but configured to fetch the bitmap over the network based on// display size.background = repositoryWithInitialValue(Result.<Bitmap>absent()).observe() // Optionally refresh the bitmap on events. In this case never.onUpdatesPerLoop() // Refresh per Looper thread loop. In this case never.getFrom(new Supplier<HttpRequest>() {@NonNull@Overridepublic HttpRequest get() {DisplayMetrics displayMetrics = getResources().getDisplayMetrics();int size = Math.max(displayMetrics.heightPixels,displayMetrics.widthPixels);return httpGetRequest(BACKGROUND_BASE_URL + size).compile();}}) // Supply an HttpRequest based on the display size.goTo(NETWORK_EXECUTOR) // Change execution to the network executor.attemptTransform(httpFunction()).orSkip() // Make the actual http request, skip on failure.goTo(DECODE_EXECUTOR) // Change execution to the decode executor.thenTransform(new Function<HttpResponse, Result<Bitmap>>() {@NonNull@Overridepublic Result<Bitmap> apply(@NonNull HttpResponse response) {byte[] body = response.getBody();return absentIfNull(decodeByteArray(body, 0, body.length));}}) // Decode the response to the result of a bitmap, absent on failure.onDeactivation(SEND_INTERRUPT) // Interrupt thread on deactivation.compile(); // Create the repository}@Overrideprotected void onResume() {super.onResume();// Start listening to the repository, triggering the flowbackground.addUpdatable(this);}@Overrideprotected void onPause() {super.onPause();// Stop listening to the repository, deactivating itbackground.removeUpdatable(this);}@Overridepublic void update() {// Called as the repository is updated// If containing a valid bitmap, send to accept belowbackground.get().ifSucceededSendTo(this);}@Overridepublic void accept(@NonNull Bitmap background) {// Set the background bitmap to the background viewbackgroundView.setImageBitmap(background);}
}

接下来 将解析google官方的例子 也就是用法demo:

agera 是基于java观察者设计模式而搭建的框架 在agera中有两个基本组件 Observable和Updatable

/** Copyright 2015 Google Inc. All Rights Reserved.** Licensed under the Apache License, Version 2.0 (the "License");* you may not use this file except in compliance with the License.* You may obtain a copy of the License at**     http://www.apache.org/licenses/LICENSE-2.0** Unless required by applicable law or agreed to in writing, software* distributed under the License is distributed on an "AS IS" BASIS,* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.* See the License for the specific language governing permissions and* limitations under the License.*/
package com.google.android.agera;import android.support.annotation.NonNull;/*** Notifies added {@link Updatable}s when something happens.** <p>Addition and removal of {@link Updatable}s has to be balanced. Multiple add of the same* {@link Updatable} is not allowed and shall result in an {@link IllegalStateException}. Removing* non-added {@link Updatable}s shall also result in an {@link IllegalStateException}.* Forgetting to remove an {@link Updatable} may result in memory/resource leaks.** <p>Without any {@link Updatable}s added an {@code Observable} may temporarily be* <i>inactive</i>. {@code Observable} implementations that provide values, perhaps through a* {@link Supplier}, do not guarantee an up to date value when <i>inactive</i>. In order to ensure* that the {@code Observable} is <i>active</i>, add an {@link Updatable}.** <p>Added {@link Updatable}s shall be called back on the same thread they were added from.*/
public interface Observable {/*** Adds {@code updatable} to the {@code Observable}.** @throws IllegalStateException if the {@link Updatable} was already added or if it was called* from a non-Looper thread*/void addUpdatable(@NonNull Updatable updatable);/*** Removes {@code updatable} from the {@code Observable}.** @throws IllegalStateException if the {@link Updatable} was not added*/void removeUpdatable(@NonNull Updatable updatable);
}

/** Copyright 2015 Google Inc. All Rights Reserved.** Licensed under the Apache License, Version 2.0 (the "License");* you may not use this file except in compliance with the License.* You may obtain a copy of the License at**     http://www.apache.org/licenses/LICENSE-2.0** Unless required by applicable law or agreed to in writing, software* distributed under the License is distributed on an "AS IS" BASIS,* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.* See the License for the specific language governing permissions and* limitations under the License.*/
package com.google.android.agera;/*** Called when when an event has occurred. Can be added to {@link Observable}s to be notified* of {@link Observable} events.*/
public interface Updatable {/*** Called when an event has occurred.*/void update();
}

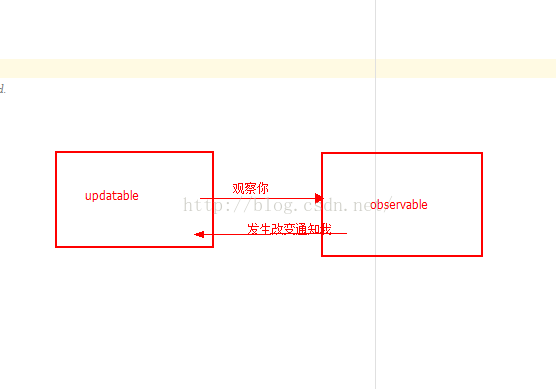

Updatable 就是观察者模式的观察者 而Observable就是观察者模式中的被观察者

Observable去通知Updatable更新 当Observable调用addUpdatable()时将会注册到Observable中 可以在Observable的addUpdatable方法中使用update()方法去更新:

package com.xuan.agera;import android.app.Activity;
import android.os.Bundle;
import android.os.SystemClock;
import android.support.annotation.NonNull;
import android.view.View;import com.google.android.agera.Observable;
import com.google.android.agera.Updatable;/*** @author xuanyouwu* @email xuanyouwu@163.com* @time 2016-04-27 14:14*/
public class MainActivity extends Activity {private Observable observable = new Observable() {@Overridepublic void addUpdatable(@NonNull Updatable updatable) {LogUtils.d("--------->addUpdatable:" + updatable);updatable.update();}@Overridepublic void removeUpdatable(@NonNull Updatable updatable) {LogUtils.d("--------->removeUpdatable:" + updatable);}};private Updatable updatable = new Updatable() {@Overridepublic void update() {LogUtils.d("------>更新了:" + SystemClock.elapsedRealtime());}};@Overrideprotected void onPause() {super.onPause();observable.removeUpdatable(updatable);}@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_main);findViewById(R.id.btn_0).setOnClickListener(new View.OnClickListener() {@Overridepublic void onClick(View v) {observable.addUpdatable(updatable);}});}
}

点击按钮后关闭页面的结果:

04-27 14:50:06.633 30298-30298/com.xuan.agera D/----->log:: --------->addUpdatable:com.xuan.agera.MainActivity$2@41835ef0
04-27 14:50:06.633 30298-30298/com.xuan.agera D/----->log:: ------>更新了:105528968
04-27 14:51:07.083 30298-30298/com.xuan.agera D/----->log:: --------->removeUpdatable:com.xuan.agera.MainActivity$2@41835ef0

可以看到 更新了updatable 在activity退出的时候移除了updatable

当然这你发现这只是简单的接口调用 其实你就错了

请看:

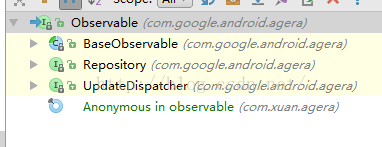

他们有许多的实现类,不仅如此:还可以传递数据

public interface Repository<T> extends Observable, Supplier<T> {}

姑且理解为仓库  这个仓库又继承了提供者Supplier

/*** A supplier of data. Semantically, this could be a factory, generator, builder, or something else* entirely. No guarantees are implied by this interface.*/
public interface Supplier<T> {/*** Returns an instance of the appropriate type. The returned object may or may not be a new* instance, depending on the implementation.*/@NonNullT get();
}

这就能传递数据了,哈哈哈  哈哈哈

package com.xuan.agera;import android.app.Activity;
import android.os.Bundle;
import android.os.SystemClock;
import android.support.annotation.NonNull;
import android.view.View;import com.google.android.agera.Observable;
import com.google.android.agera.Repositories;
import com.google.android.agera.Repository;
import com.google.android.agera.Supplier;
import com.google.android.agera.Updatable;/*** @author xuanyouwu* @email xuanyouwu@163.com* @time 2016-04-27 14:14*/
public class MainActivity extends Activity {final Supplier<Long> supplier = new Supplier<Long>() {@NonNull@Overridepublic Long get() {return SystemClock.elapsedRealtime();}};final Repository<Long> repository = Repositories.repositoryWithInitialValue(1L).observe().onUpdatesPerLoop().thenGetFrom(supplier).compile();@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_main);final Updatable updatable1 = new Updatable() {@Overridepublic void update() {LogUtils.d("------>更新了:" + repository.get());}};findViewById(R.id.btn_1).setOnClickListener(new View.OnClickListener() {@Overridepublic void onClick(View v) {try {repository.removeUpdatable(updatable1);} catch (IllegalStateException e) {}repository.addUpdatable(updatable1);}});}
}

点击button:

04-27 15:10:07.633 15599-15599/com.xuan.agera D/----->log:: ------>更新了:106729959
04-27 15:10:08.403 15599-15599/com.xuan.agera D/----->log:: ------>更新了:106730734
04-27 15:10:09.143 15599-15599/com.xuan.agera D/----->log:: ------>更新了:106731455
04-27 15:10:10.153 15599-15599/com.xuan.agera D/----->log:: ------>更新了:106732480
04-27 15:10:10.753 15599-15599/com.xuan.agera D/----->log:: ------>更新了:106733070
04-27 15:10:11.273 15599-15599/com.xuan.agera D/----->log:: ------>更新了:106733589

从仓库中添加数据然后自动调用update方法 然后又重仓库中获取到对应的数据  感觉有点l   一种不好说的感觉

先来学习一下这些组件吧:

Observable  agera中的被观察者,可以通知观察者进行更新

Updatable   agera中的观察者,观察Obserable

Supplier      agera中的数据仓库的车间

Repository  仓库 就行流一样 将suppelier放在上面 又可以同个get方法来获取

简直一头雾水,没有RxJava好,google必须得承认，原谅这是rc版本,毕竟RxJava已经相当成熟与丰富
