Pytorch之经典神经网络语义分割(3.2) —— ASPP 空洞空间金字塔池化(atrous spatial pyramid pooling )

      ASPP是基于空洞卷积(Dilatd/Atrous Convolution)和SPP(空间金字塔池化)的。用空洞卷积代替了单纯的adaptivepooling. ASPP对所给定的输入以不同采样率的空洞卷积并行采样，相当于以多个比例捕捉图像的上下文。



      ASPP实际上是空间金字塔池的一个版本，其中的概念已经在SPPNet中描述。在ASPP中，在输入特征映射中应用不同速率的并行空洞卷积，并融合在一起。由于同一类的物体在图像中可能有不同的比例，ASPP有助于考虑不同的物体比例，这可以提高准确性。

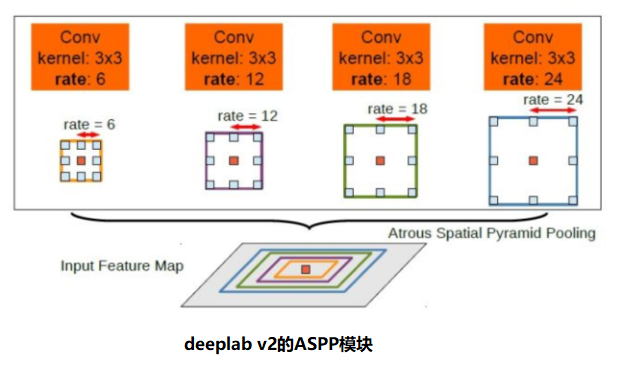

      DeepLab v2中就有用到ASPP模块

      这里设计了几种不同采样率的空洞卷积来捕捉多尺度信息，但我们要明白采样率（dilation rate）并不是越大越好，因为采样率太大，会导致滤波器有的会跑到padding上，产生无意义的权重，因此要选择合适的采样率。

Pytorch实现

import torch
from torch import nn
import torch.nn.functional as Fclass ASPP(nn.Module):def __init__(self, num_classes):super(ASPP, self).__init__()self.conv_1x1_1 = nn.Conv2d(2048, 256, kernel_size=1)self.bn_conv_1x1_1 = nn.BatchNorm2d(256)self.conv_3x3_6 = nn.Conv2d(2048, 256, kernel_size=3, stride=1, padding=6, dilation=6)self.bn_conv_3x3_6 = nn.BatchNorm2d(256)self.conv_3x3_12 = nn.Conv2d(2048, 256, kernel_size=3, stride=1, padding=12, dilation=12)self.bn_conv_3x3_12 = nn.BatchNorm2d(256)self.conv_3x3_18 = nn.Conv2d(2048, 256, kernel_size=3, stride=1, padding=18, dilation=18)self.bn_conv_3x3_18 = nn.BatchNorm2d(256)self.avg_pool = nn.AdaptiveAvgPool2d(1)self.conv_1x1_2 = nn.Conv2d(2048, 256, kernel_size=1)self.bn_conv_1x1_2 = nn.BatchNorm2d(256)self.conv_1x1_3 = nn.Conv2d(1280, 256, kernel_size=1) # (1280 = 5*256)self.bn_conv_1x1_3 = nn.BatchNorm2d(256)self.conv_1x1_4 = nn.Conv2d(256, num_classes, kernel_size=1)def forward(self, feature_map):# (feature_map has shape (batch_size, 2048, h/8, w/8))feature_map_h = feature_map.size()[2] # (h/8)feature_map_w = feature_map.size()[3] # (w/8)out_1x1 = F.relu(self.bn_conv_1x1_1(self.conv_1x1_1(feature_map))) # (shape: (batch_size, 256, h/8, w/8)) 对应图中 Eout_3x3_1 = F.relu(self.bn_conv_3x3_6(self.conv_3x3_6(feature_map))) # (shape: (batch_size, 256, h/8, w/8)) 对应图中 Dout_3x3_2 = F.relu(self.bn_conv_3x3_12(self.conv_3x3_12(feature_map))) # (shape: (batch_size, 256, h/8, w/8)) 对应图中 Cout_3x3_3 = F.relu(self.bn_conv_3x3_18(self.conv_3x3_18(feature_map))) # (shape: (batch_size, 256, h/8, w/8)) 对应图中 B#out_1x1,out_3x3_1,out_3x3_2,out_3x3_3 的shape都一样out_img = self.avg_pool(feature_map) # (shape: (batch_size, 512, 1, 1))对应图中 ImagePoolingout_img = F.relu(self.bn_conv_1x1_2(self.conv_1x1_2(out_img))) # (shape: (batch_size, 256, 1, 1)) out_img = F.upsample(out_img, size=(feature_map_h, feature_map_w), mode="bilinear") # (shape: (batch_size, 256, h/8, w/8))对应图中 Aout = torch.cat([out_1x1, out_3x3_1, out_3x3_2, out_3x3_3, out_img], dim=1) # (shape: (batch_size, 1280, h/8, w/8)) cat对应图中 F out = F.relu(self.bn_conv_1x1_3(self.conv_1x1_3(out))) # (shape: (batch_size, 256, h/8, w/8)) bn_conv_1x1_3对应图中 H  out 对应图中Iout = self.conv_1x1_4(out) # (shape: (batch_size, num_classes, h/8, w/8))out 对应图中Upsample by 4return outif __name__ == '__main__':x = torch.rand(4,2048,28,28) #[b,c,h,w]aspp = ASPP(num_classes=10)out = aspp(x) #[b,num_class,h,w]
