ISP 图像信号处理器软件框架

本文主要是介绍ISP 图像信号处理器软件框架，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

zynqmp_cam_isp_demo_linux

ZynqMP-ISP 图像信号处理器数字IP实现的linux软件项目
待更新

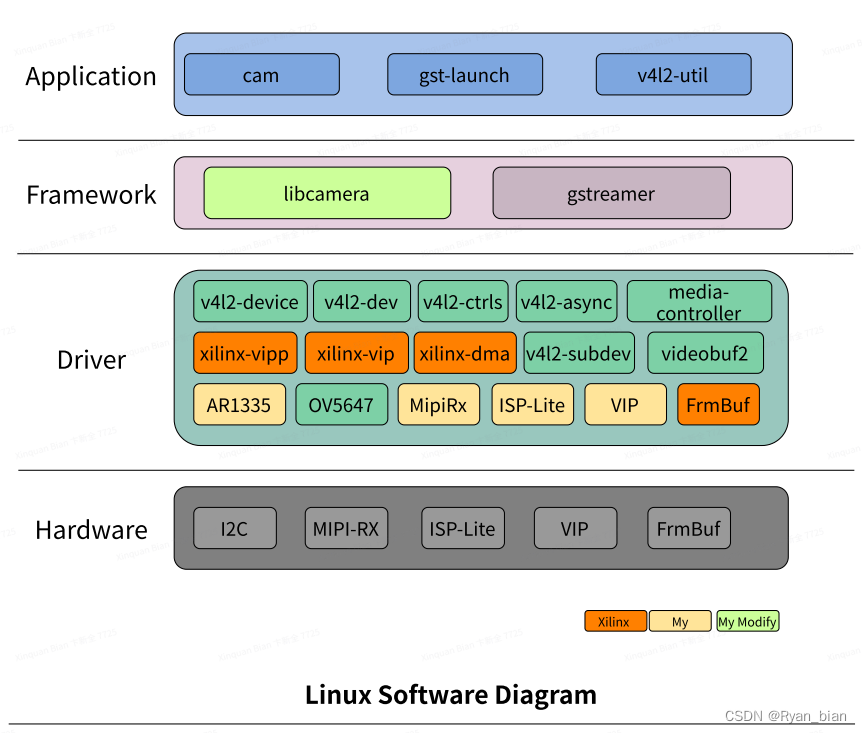

在这里插入图片描述

#u-boot 配置nfsroot, tftp下载kernel和dtb, 启动kernel
setenv bootargs 'earlycon console=ttyPS1,115200 clk_ignore_unused root=/dev/nfs rw nfsroot=192.168.1.10:/tftpboot/zynqmp/rootfs,nolock,nfsvers=3 ip=dhcp cma=1000M '
setenv ipaddr 192.168.137.123; setenv netmask 255.255.255.0; setenv gatewayip 192.168.137.1; setenv serverip 192.168.1.10
tftpboot 0x00200000 zynqmp/Image; tftpboot 0x00100000 zynqmp/system.dtb
booti 0x00200000 - 0x00100000

#加载PL及其dtbo
mkdir -p /configfs
mount -t configfs configfs /configfs
echo 0 > /sys/class/fpga_manager/fpga0/flags
mkdir /configfs/device-tree/overlays/full
echo -n "pl.dtbo" > /configfs/device-tree/overlays/full/path

#配置AR1335,MIPI-RX格式
media-ctl --set-v4l2 '"ar1335 3-0036":0[fmt:SGRBG10_1X10/2048x1536 field:none]'
media-ctl --set-v4l2 '"a0030000.mipi_rx_to_video":0[fmt:SGRBG10_1X10/2048x1536 field:none]'
media-ctl --set-v4l2 '"a0030000.mipi_rx_to_video":1[fmt:SGRBG10_1X10/2048x1536 field:none]'
media-ctl --set-v4l2 '"axi:camif_ias1_axis_subsetconv":0[fmt:SGRBG10_1X10/2048x1536 field:none]'
media-ctl --set-v4l2 '"axi:camif_ias1_axis_subsetconv":1[fmt:Y10_1X10/2048x1536]'

#配置ISP,VIP格式
media-ctl -d /dev/media1 --set-v4l2 '"a0070000.xil_isp_lite":0[fmt:Y10_1X10/2048x1536 field:none]'
media-ctl -d /dev/media1 --set-v4l2 '"a00a0000.xil_vip":1[fmt:UYVY8_1X16/1920x1080 field:none]'
v4l2-ctl -d /dev/video2 -c low_latency_controls=2

#配置libcamera运行时环境
export LIBCAMERA_IPA_MODULE_PATH=/usr/lib/libcamera
export LIBCAMERA_IPA_PROXY_PATH=/usr/libexec/libcamera
export LIBCAMERA_IPA_CONFIG_PATH=/usr/share/libcamera/ipa

#libcamera-cam测试
cam -c 1 -s width=1920,height=1080,pixelformat=YUYV,role=video,colorspace=rec709 --capture=10 --file

#gst-lanuch显示测试
gst-launch-1.0 libcamerasrc camera-name="/base/axi/i2c@a0010000/camera@36" ! video/x-raw,format=YUY2,width=1920,height=1080,framerate=30/1 ! kmssink bus-id=fd4a0000.display fullscreen-overlay=1 async=false

V4L2设备拓扑

root@zynqmp-common-20221:~# media-ctl -d /dev/media0 --print-topology
Media controller API version 5.15.0Media device information
------------------------
driver          xilinx-video
model           Xilinx Video Composite Device
serial
bus info
hw revision     0x0
driver version  5.15.0Device topology
- entity 1: vcap_mipi_csi2_rx_ias1 output 0 (1 pad, 1 link)                                 <<< MIPIRX图像输出type Node subtype V4L flags 0device node name /dev/video0pad0: Sink<- "axi:camif_ias1_axis_subsetconv":1 [ENABLED]- entity 5: ar1335 3-0036 (1 pad, 1 link)type V4L2 subdev subtype Sensor flags 0device node name /dev/v4l-subdev0pad0: Source[fmt:SGRBG10_1X10/2048x1536 field:none colorspace:srgb]-> "a0030000.mipi_rx_to_video":0 [ENABLED]- entity 7: a0030000.mipi_rx_to_video (2 pads, 2 links)type V4L2 subdev subtype Unknown flags 0device node name /dev/v4l-subdev1pad0: Sink[fmt:SGRBG10_1X10/2048x1536 field:none]<- "ar1335 3-0036":0 [ENABLED]pad1: Source[fmt:SGRBG10_1X10/2048x1536 field:none]-> "axi:camif_ias1_axis_subsetconv":0 [ENABLED]- entity 10: axi:camif_ias1_axis_subsetconv (2 pads, 2 links)type V4L2 subdev subtype Unknown flags 0device node name /dev/v4l-subdev2pad0: Sink[fmt:SGRBG10_1X10/2048x1536 field:none]<- "a0030000.mipi_rx_to_video":1 [ENABLED]pad1: Source[fmt:Y10_1X10/2048x1536 field:none]-> "vcap_mipi_csi2_rx_ias1 output 0":0 [ENABLED]root@zynqmp-common-20221:~# media-ctl -d /dev/media1 --print-topology
Media controller API version 5.15.0Media device information
------------------------
driver          xilinx-video
model           Xilinx Video Composite Device
serial
bus info
hw revision     0x0
driver version  5.15.0Device topology
- entity 1: isp_pipe_video_dev output 1 (1 pad, 1 link)                                <<< ISP图像输出type Node subtype V4L flags 0device node name /dev/video1pad0: Sink<- "a00a0000.xil_vip":1 [ENABLED]- entity 5: isp_pipe_video_dev input 0 (1 pad, 1 link)                                 <<< ISP图像输入type Node subtype V4L flags 0device node name /dev/video2pad0: Source-> "a0070000.xil_isp_lite":0 [ENABLED]- entity 9: a0070000.xil_isp_lite (2 pads, 2 links)type V4L2 subdev subtype Unknown flags 0device node name /dev/v4l-subdev3pad0: Sink[fmt:Y10_1X10/2048x1536 field:none colorspace:srgb]<- "isp_pipe_video_dev input 0":0 [ENABLED]pad1: Source[fmt:YUV10_1X30/2048x1536 field:none colorspace:srgb]-> "a00a0000.xil_vip":0 [ENABLED]- entity 12: xil-isp-lite_stat (1 pad, 0 link)                                         <<< ISP统计输出type Node subtype V4L flags 0device node name /dev/video3pad0: Sink- entity 16: a00a0000.xil_vip (2 pads, 2 links)type V4L2 subdev subtype Unknown flags 0device node name /dev/v4l-subdev4pad0: Sink[fmt:YUV10_1X30/2048x1536 field:none colorspace:srgb]<- "a0070000.xil_isp_lite":1 [ENABLED]pad1: Source[fmt:UYVY8_1X16/1920x1080 field:none colorspace:srgb]-> "isp_pipe_video_dev output 1":0 [ENABLED]

在这里插入图片描述
