三栏布局----方法总结

2023-10-19 17:59
文章标签 总结 方法 布局 三栏

本文主要是介绍三栏布局----方法总结,希望对大家解决编程问题提供一定的参考价值,需要的开发者们随着小编来一起学习吧!

三栏布局介绍:

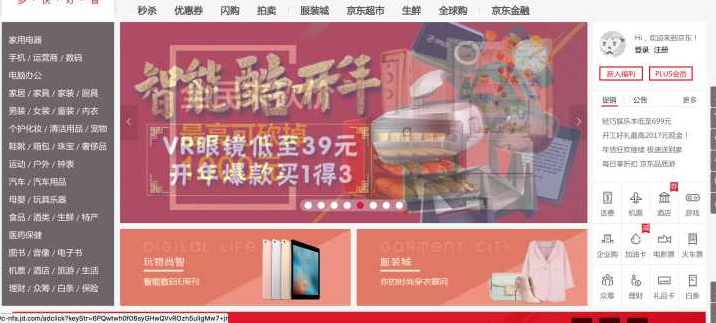

三栏布局,顾名思义就是两边固定宽度,中间内容宽度岁浏览器宽度自适应。如,打开某东首页:



三栏布局方法:

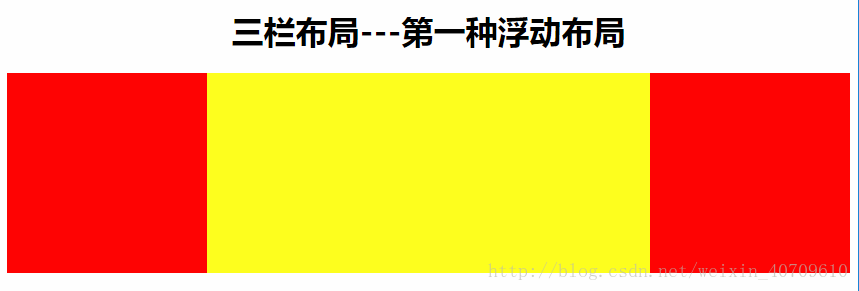

方法一:浮动布局

注:  浮动元素脱离了文档流,根据实际情况使用时清除浮动。

<!DOCTYPE html>
<html lang="en">
<head><style>h1 {text-align: center;}.container {width: 100%;height: 200px;}.left {width: 200px;height: 100%;background-color: red;float: left;}.right {width: 200px;height: 100%;background-color: red;float: right;}.main {height: 100%;margin-left: 200px;margin-right: 200px;background-color: yellow;}</style>
</head>
<body><h1>三栏布局---第一种浮动布局</h1><div class="container"><div class="left"></div><div class="right"></div><div class="main"></div></div>
</body>
</html>

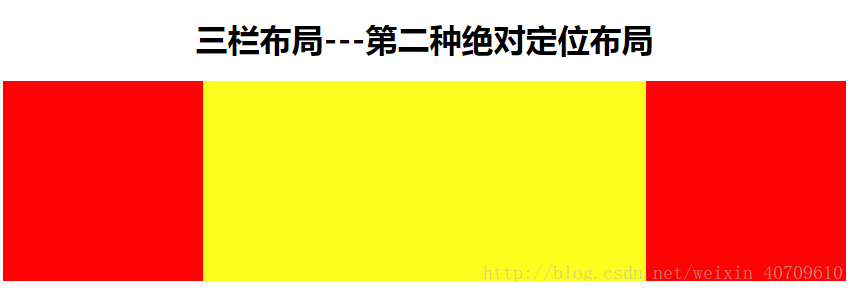

方法二:绝对定位布局
简单实用,并且主要内容可以优先加载。

<!DOCTYPE html>
<html lang="en">
<head><style>h1 {text-align: center;}.container {width: 100%;height: 200px;position: relative;}.left {width: 200px;height: 100%;background-color: red;position: absolute;left: 0;top: 0;}.right {width: 200px;height: 100%;background-color: red;position: absolute;right: 0;top: 0;}.main {height: 100%;margin-left: 200px;margin-right: 200px;background-color: yellow;}</style>
</head>
<body><h1>三栏布局---第二种绝对定位布局</h1><div class="container"><div class="left"></div><div class="right"></div><div class="main"></div></div>
</body>
</html>

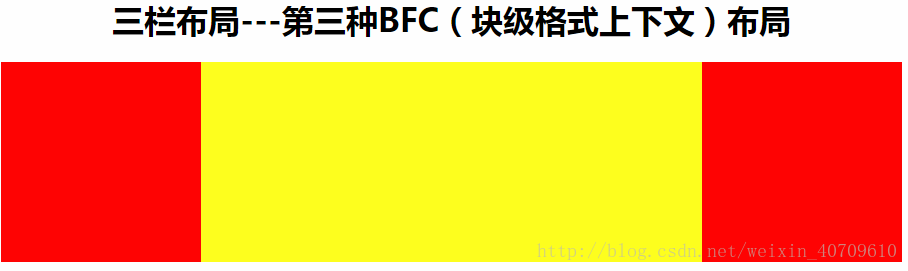

方法三:BFC布局

注:BFC 规则有这样的描述:BFC 区域,不会与浮动元素重叠。因此我们可以利用这一点来实现 3 列布局。缺点:主要内容模块无法最先加载,当页面中内容较多时会影响用户体验。因此为了解决这个问题,有了下面要介绍的布局方案双飞翼布局。


<!DOCTYPE html>
<html lang="en">
<head><style>h1 {text-align: center;}.container {width: 100%;height: 200px;}.left {width: 200px;height: 100%;background-color: red;float: left;}.right {width: 200px;height: 100%;background-color: red;float: right;}.main {height: 100%;overflow: hidden;background-color: yellow;}</style>
</head>
<body><h1>三栏布局---第三种BFC(块级格式上下文)布局</h1><div class="container"><div class="left"></div><div class="right"></div><div class="main"></div></div>
</body>
</html>

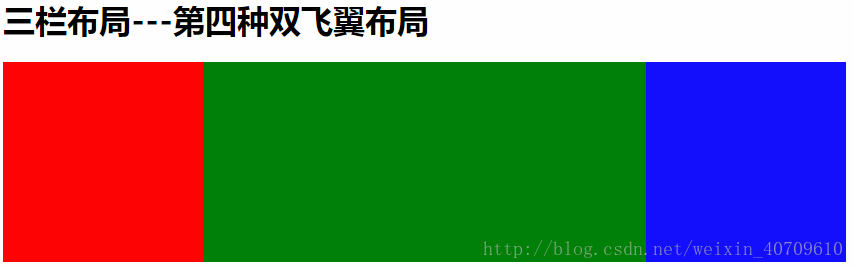

方法四:双飞翼布局

主体内容可以优先加载,HTML 代码结构稍微复杂点。


<!DOCTYPE html>
<html lang="en">
<head><style>.content {float: left;width: 100%;}.main {height: 200px;margin-left: 200px;margin-right: 200px;background-color: green;}.left {float: left;height: 200px;width: 200px;margin-left: -100%;background-color: red;}.right {width: 200px;height: 200px;float: right;margin-left: -200px;background-color: blue;}</style>
</head>
<body><h1>三栏布局---第四种双飞翼布局</h1><div class="content"><div class="main"></div></div><div class="left"></div><div class="right"></div>
</body>
</html>

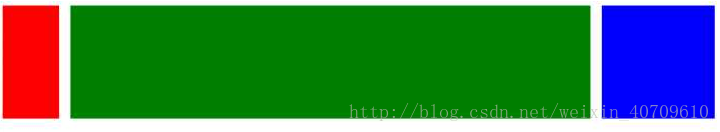

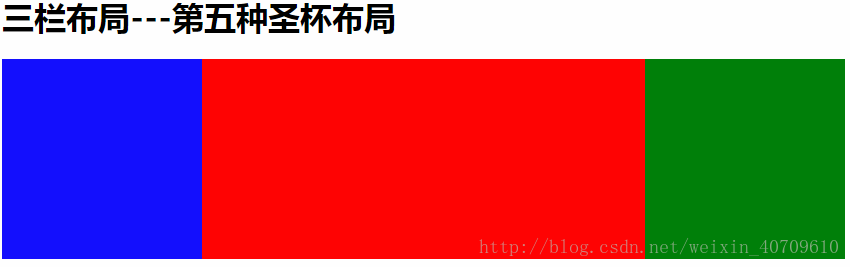

方法五:圣杯布局

和双飞翼布局很像,有一些细节上的区别,相对于双飞翼布局来说,HTML 结构相对简单,但是样式定义就稍微复杂,也是优先加载内容主体。


<!DOCTYPE html>
<html lang="en">
<head><style>.container {margin-left: 200px;margin-right: 200px;}.main {float: left;width: 100%;height: 200px;background-color: red;}.left {float: left;width: 200px;height: 200px;margin-left: -100%;position: relative;left: -200px;background-color: blue;}.right {float: left;width: 200px;height: 200px;margin-left: -200px;position: relative;right: -200px;background-color: green;}</style>
</head>
<body><h1>三栏布局---第五种圣杯布局</h1><div class="container"><div class="main"></div><div class="left"></div><div class="right"></div></div>
</body>
</html>

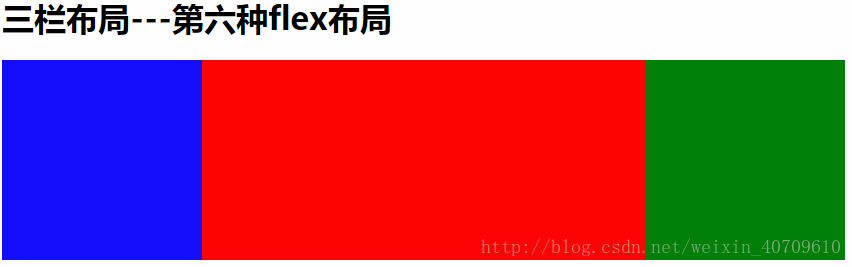

方法六:flex布局

需要考虑浏览器的兼容性

<!DOCTYPE html>
<html lang="en">
<head><style>.container {display: flex;}.main {flex-grow: 1;height: 200px;background-color: red;}.left {order: -1;flex: 0 1 200px;height: 200px;background-color: blue;}.right {flex: 0 1 200px;height: 200px;background-color: green;}</style>
</head>
<body><h1>三栏布局---第六种flex布局</h1><div class="container"><div class="main"></div><div class="left"></div><div class="right"></div></div>
</body>
</html>

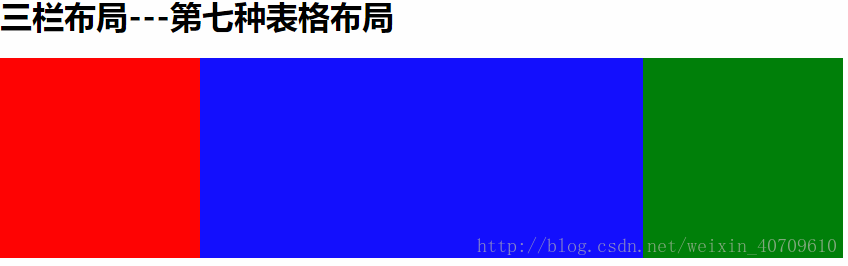

方法七:表格布局

缺点:无法设置栏间距

<!DOCTYPE html>
<html lang="en">
<head><style>.container {display: table;width: 100%;}.left,.main,.right {display: table-cell;}.left {width: 200px;height: 200px;background-color: red;}.main {background-color: blue;}.right {width: 200px;height: 200px;background-color: green;}</style>
</head>
<body><h1>三栏布局---第七种表格布局</h1><div class="container"><div class="left"></div><div class="main"></div><div class="right"></div></div>
</body>
</html>

以上是我整理的关于三栏布局的方法,欢迎大家补充。提出问题。谢谢。
