【Echart】实现Y轴不等距显示

【Echart】实现Y轴不等距显示

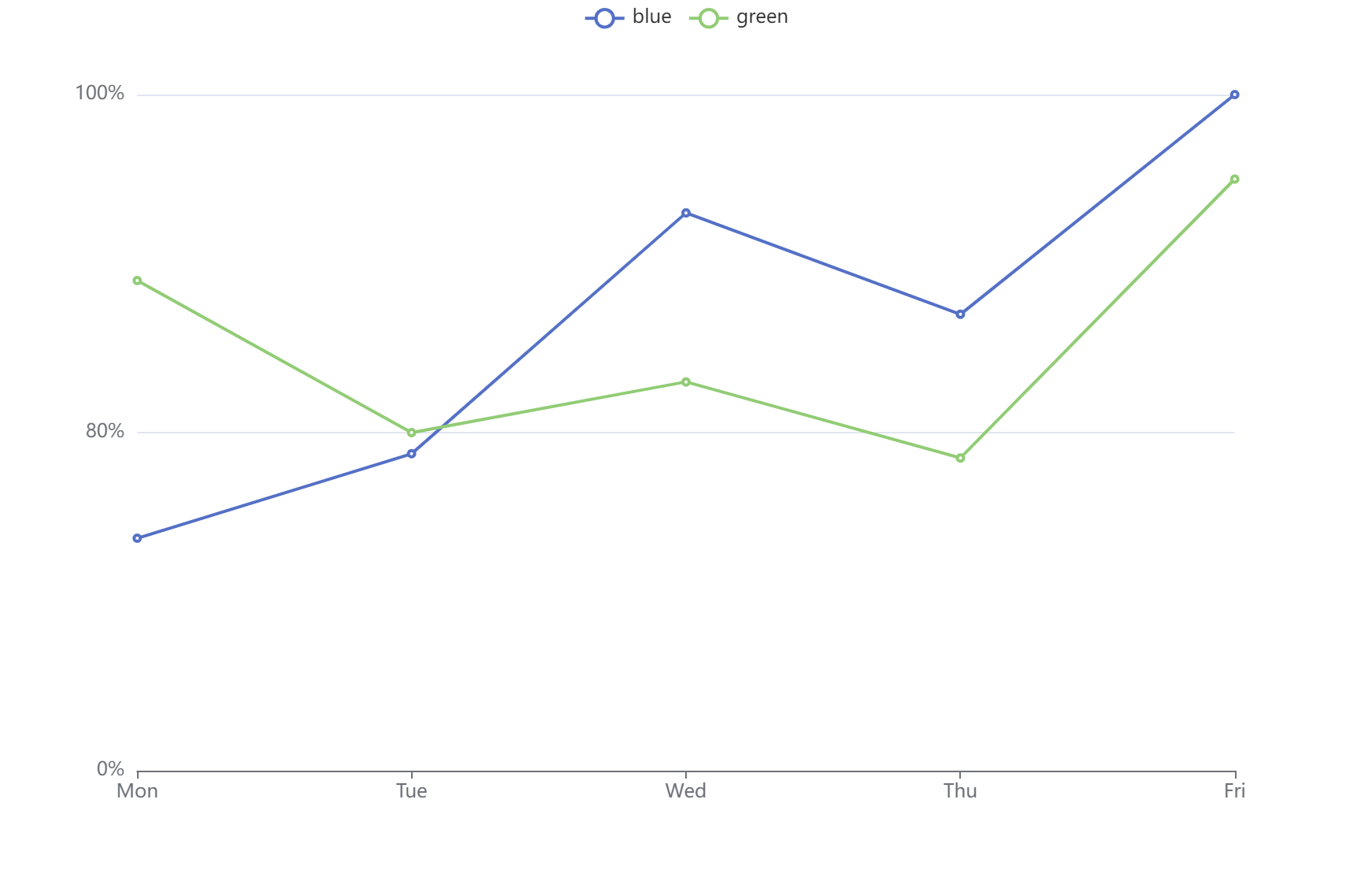

效果图

实现代码

const list = {arr1: [55, 75, 93, 87, 100],arr2: [89, 80, 83, 74, 95]
};
const filtration = (arr) => {return arr.map((e) => {if (e <= 80) {return e * 0.625;} else {const _top = e - 80;return _top / 0.4 + 50;}});
};
const mock = {blue: {oldList: list.arr1,showList: filtration(list.arr1)},green: {oldList: list.arr2,showList: filtration(list.arr2)}
};option = {tooltip: {trigger: 'axis',formatter: (params) => {const _show = params.map((e) => {const _old = mock[e.seriesName].oldList;return e.marker + e.seriesName + '：' + _old[e.dataIndex];});return _show.join('<br/>');}},legend: {},xAxis: {type: 'category',boundaryGap: false,data: ['Mon', 'Tue', 'Wed', 'Thu', 'Fri']},yAxis: {type: 'value',axisLabel: {formatter: '{value} %'},min: 0,max: 100,minInterval: 50,axisLabel: {formatter: (value, index) => {//Y轴的自定义刻度值，对应上图if (index == 0) {value = 0;} else if (index == 1) {value = 80;} else if (index == 2) {value = 100;}return value + '%';}}},series: [{name: 'blue',type: 'line',data: mock.blue.showList},{name: 'green',type: 'line',data: mock.green.showList}]
};
