EDA常用模块 奇数分频 偶数分频 冒泡排序

一、分频

1、偶数分频

.v文件

module FenPin (input clk,input rst,output wire clk_10k);
parameter f=8;				//即为偶分频的分频数
reg [11:0] count=0;						//存储分频计数
reg clk_10k_tmp=0;
assign clk_10k = clk_10k_tmp;// 复位信号rst低电平有效
always @(posedge clk or negedge rst)
beginif (!rst) 							beginclk_10k_tmp = 0;count = 0;end else beginif (count == f/2-1) 			//偶分频数/2 - 1beginclk_10k_tmp = ~clk_10k_tmp;count = 0;end else begincount = count + 1;endend
end
endmodule

测试文件

`timescale 1 ps/ 1 ps
module FenPin_vlg_tst();reg clk;
reg rst;wire clk_10k;FenPin i1 ( .clk(clk),.clk_10k(clk_10k),.rst(rst)
);initial
begin                                                  rst=1;				//模拟复位信号按下#20 rst=0;#20 rst=1;#8000 $stop;
end
always
begin                                                  #50 clk=1; #50 clk=0;
end
endmodule

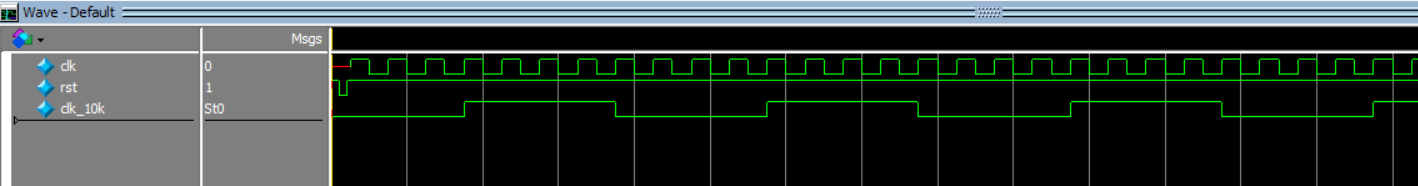

仿真结果

2、奇数分频

.v文件

module FenPin(clkout,clk,rst);
input clk,rst;
output clkout; parameter f=9;			//即为奇分频分频数reg [9:0] counter1, counter2;
reg clkp1, clkp2;always@(posedge clk or negedge rst)  // counter1自动计数
beginif (~rst) counter1<=0;else if (counter1==f-1)counter1<=0;else counter1<=counter1+1;
endalways @(posedge clk or negedge rst) // clk上升沿触发产生p1
beginif(~rst) clkp1<=0;else if(counter1==(f-1)/2 || counter1==f-1)clkp1<=~clkp1;
endalways @(negedge clk or negedge rst)//counter2自动计数
begin if(~rst) counter2<=0; else if(counter2==f-1) counter2<=0; else counter2<=counter1+1;
end always @(negedge clk or negedge rst)//clk下降触发产生p2
begin if(~rst) clkp2<=0; else begin if(counter2==(f-1)/2||counter2==f-1) clkp2<=~clkp2;end
end assign clkout=clkp1|clkp2;   //p1|p2使占空比等于50% endmodule

测试文件

`timescale 1 ps/ 1 ps
module FenPin_vlg_tst();reg clk;
reg rst;wire clkout;FenPin i1 ( .clk(clk),.clkout(clkout),.rst(rst)
);initial
begin                                                  rst=1;				//模拟复位信号按下#20 rst=0;#20 rst=1;#8000 $stop;
end
always
begin                                                  #50 clk=1; #50 clk=0;
end
endmodule

仿真结果

二、其他功能

1. 冒泡排序

代码

module pop(input clk,input rst,input [3:0]data_in,	output reg[2:0]state,output reg[3:0]data_out
);reg[3:0] i,p;//计数器
reg[3:0]content[7:0];initial
beginstate<=0;i<=0;p<=7;
endalways@(posedge clk or posedge rst )
begin
if(rst)begin state<=0;data_out<=0;i<=0;p<=7;endelse begincase(state)3'b000:begin//读取数据content[i]=data_in;i=i+1;if(i==8)begin i<=0;state<=3'b001;endend //0003'b001:begin//冒泡排序if(i<p) begin if(content[i]<content[i+1])begin //如果当前位置比后面小则对调content[i+1]<=content[i];content[i]<= content[i+1];endi<=i+1;endelse begin i<=0; p<=p-1;  endif (p==0&&i==0)  state<=3'b010;end//0013'b010:begin //发送数据data_out=content[i];i=i+1;if(i==8) begin i=0; state=3'b011; endend3'b011:begin//延时一段时间i=i+1;if(i==15)begin i=0;state=0;endend//011		endcase
end//elseend//always
endmodule

测试文件

//测试文件：
`timescale 1 ns/ 1 ps
module pop_vlg_tst();reg clk;
reg [3:0] data_in;
reg rst;
wire [3:0]  data_out;
wire [2:0]  state;// assign statements (if any)
pop i1 ( .clk(clk),.data_in(data_in),.data_out(data_out),.rst(rst),.state(state)
);initial
begin                                                  clk=0;#100rst=1;#30rst=0;forever #5 clk=~clk;
end
initial
begin
#130                                                  while(1)begindata_in=7;#10data_in=5;#10data_in=8;#10data_in=11;#10data_in=12;#10data_in=14;#10data_in=15;#10data_in=9;#1000rst=1;#30rst=0;end
end
endmodule
