• • 配置服务步骤：
    1. 创建服务同名的用户，添加到services这个project和admin的role
    2. 创建services和endpoint
    3. 修改配置文件
    4. 更新数据库



• • 安装软件

# yum list *heat*

# yum install -y openstack-heat-api.noarch openstack-heat-api-cfn.noarch openstack-heat-api-

cloudwatch.noarch openstack-heat-engine.noarch  openstack-heat-templates.noarch



• • 创建服务：

openstack user create heat --password redhat

openstack role add --user heat --project services admin



openstack service create --name heat orchestration

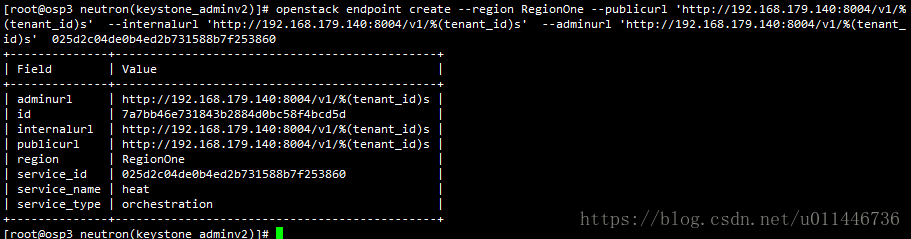

openstack endpoint create --region RegionOne --publicurl 'http://192.168.179.140:8004/v1/%(tenant_id)s'  --internalurl 'http://192.168.179.140:8004/v1/%(tenant_id)s'  --adminurl 'http://192.168.179.140:8004/v1/%(tenant_id)s'  025d2c04de0b4ed2b731588b7f253860



openstack service create --name heat-cfn cloudformation

openstack endpoint create --region RegionOne --publicurl 'http://192.168.179.140:8000/v1'  --internalurl 'http://192.168.179.140:8000/v1'  --adminurl 'http://192.168.179.140:8000/v1'  11cbd712e9a24c2eb8ce1707b00a3241

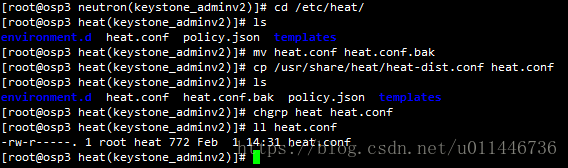

• • 修改配置文件：

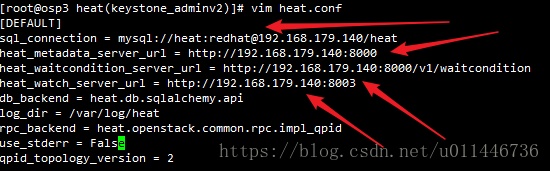

vim heat.conf



[root@osp3 heat(keystone_adminv2)]# grep ^rabbit /etc/keystone/keystone.conf

rabbit_host = 192.168.179.140

rabbit_port = 5672

rabbit_hosts = $rabbit_host:$rabbit_port

rabbit_use_ssl = false

rabbit_userid = guest

rabbit_password = guest

rabbit_virtual_host = /



加入到配置文件中







• • 因为AMQP 用的是rabbitmq，不是qpid，修改即可：





• • 创建数据库：

create database heat;

grant all privileges on heat.* to heat@'%' identified by 'redhat';

grant all privileges on heat.* to heat@'localhost' identified by 'redhat';

grant all privileges on heat.* to heat@'192.168.179.140' identified by 'redhat';



sh -c 'heat-manage db_sync' heat



• • 启动服务：

systemctl list-unit-files | grep heat

systemctl restart openstack-heat-api.service openstack-heat-api-cfn.service openstack-heat-engine.service

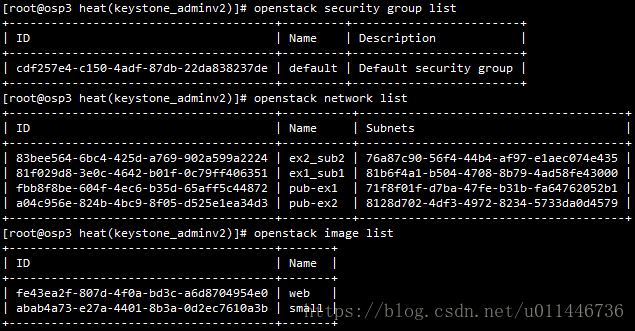

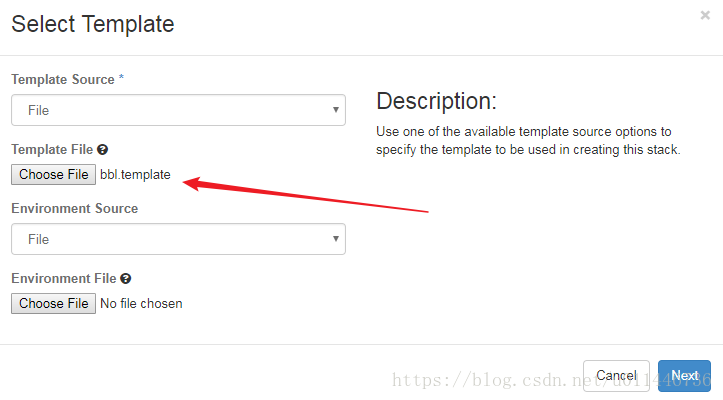

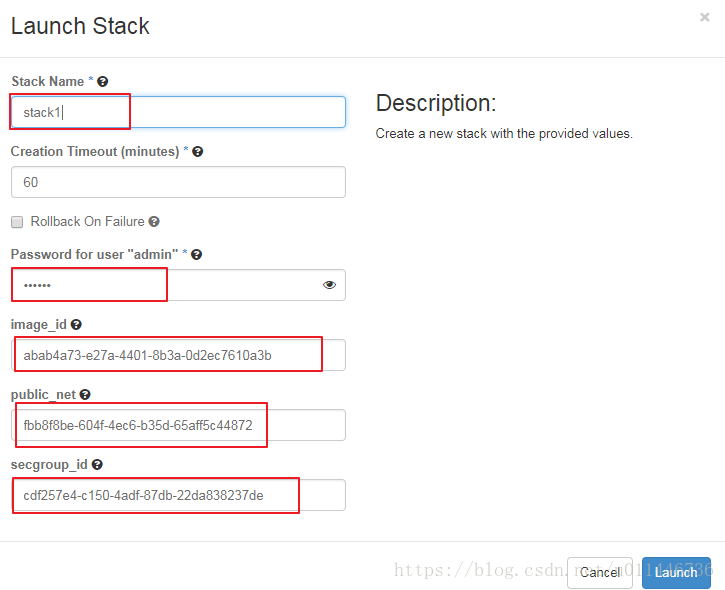

• • 使用编排功能创建stack：

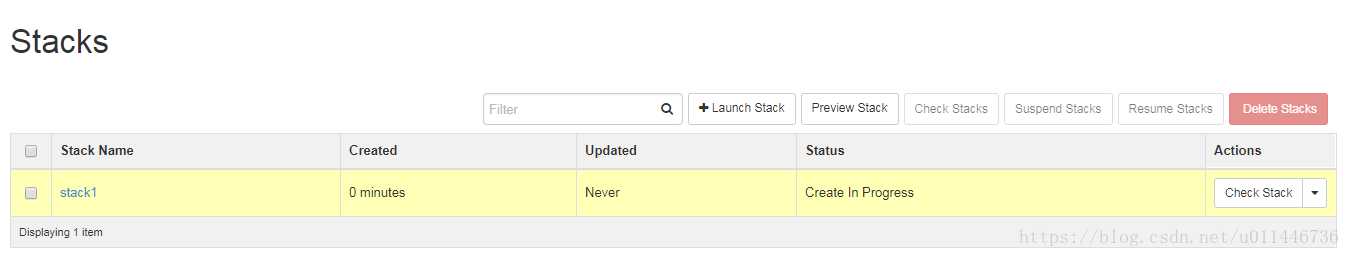

创建过程中：

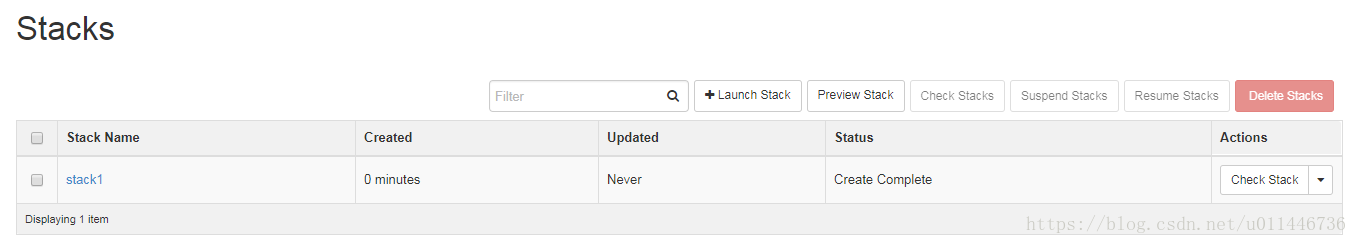

创建成功：

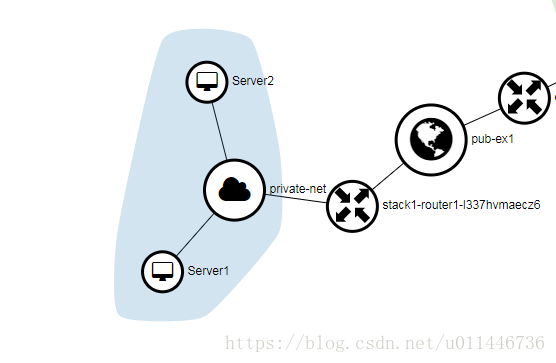

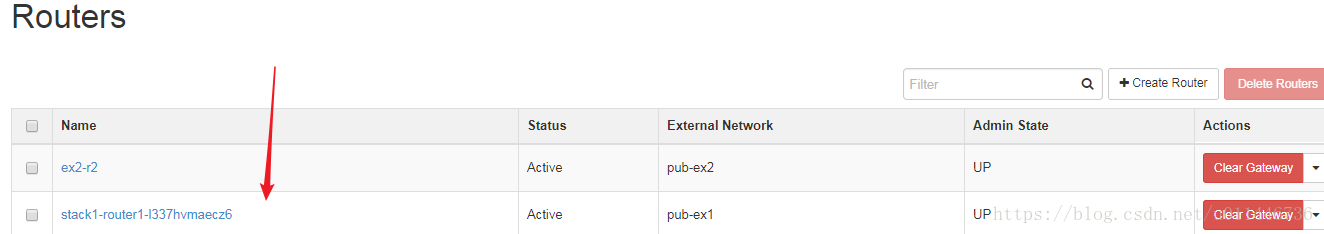

新建的网络：





创建的实例VM：
