1 Memory Map
/* Memory mapping of Cortex-M3 Hardware */
#define SCS_BASE (0xE000E000) /*!< System Control Space Base Address */
#define ITM_BASE (0xE0000000) /*!< ITM Base Address */
#define CoreDebug_BASE (0xE000EDF0) /*!< Core Debug Base Address */
#define SysTick_BASE (SCS_BASE + 0x0010) /*!< SysTick Base Address */
#define NVIC_BASE (SCS_BASE + 0x0100) /*!< NVIC Base Address */
#define SCB_BASE (SCS_BASE + 0x0D00) /*!< System Control Block Base Address */#define InterruptType ((InterruptType_Type *) SCS_BASE) /*!< Interrupt Type Register */
#define SCB ((SCB_Type *) SCB_BASE) /*!< SCB configuration struct */
#define SysTick ((SysTick_Type *) SysTick_BASE) /*!< SysTick configuration struct */
#define NVIC ((NVIC_Type *) NVIC_BASE) /*!< NVIC configuration struct */
#define ITM ((ITM_Type *) ITM_BASE) /*!< ITM configuration struct */
#define CoreDebug ((CoreDebug_Type *) CoreDebug_BASE) /*!< Core Debug configuration struct */#if defined (__MPU_PRESENT) && (__MPU_PRESENT == 1)#define MPU_BASE (SCS_BASE + 0x0D90) /*!< Memory Protection Unit */#define MPU ((MPU_Type*) MPU_BASE) /*!< Memory Protection Unit */

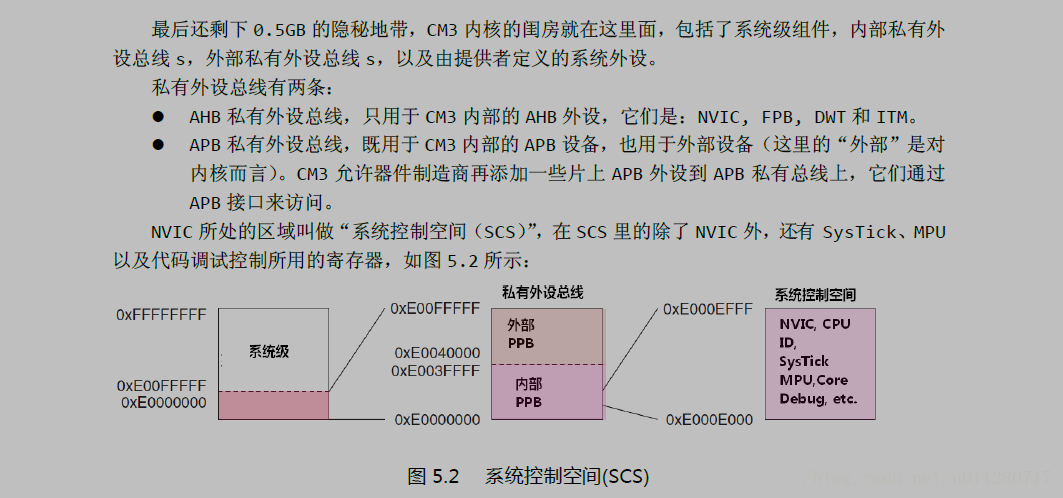

#endif从图5.2可以看到， CM3的SCS的基地址为0xE000E000。
2 SCB
core_cm3.c
/** @addtogroup CMSIS_CM3_SCB CMSIS CM3 SCBmemory mapped structure for System Control Block (SCB)@{*/
typedef struct
{__I uint32_t CPUID; /*!< Offset: 0x00 CPU ID Base Register */__IO uint32_t ICSR; /*!< Offset: 0x04 Interrupt Control State Register */__IO uint32_t VTOR; /*!< Offset: 0x08 Vector Table Offset Register */__IO uint32_t AIRCR; /*!< Offset: 0x0C Application Interrupt / Reset Control Register */__IO uint32_t SCR; /*!< Offset: 0x10 System Control Register */__IO uint32_t CCR; /*!< Offset: 0x14 Configuration Control Register */__IO uint8_t SHP[12]; /*!< Offset: 0x18 System Handlers Priority Registers (4-7, 8-11, 12-15) */__IO uint32_t SHCSR; /*!< Offset: 0x24 System Handler Control and State Register */__IO uint32_t CFSR; /*!< Offset: 0x28 Configurable Fault Status Register */__IO uint32_t HFSR; /*!< Offset: 0x2C Hard Fault Status Register */__IO uint32_t DFSR; /*!< Offset: 0x30 Debug Fault Status Register */__IO uint32_t MMFAR; /*!< Offset: 0x34 Mem Manage Address Register */__IO uint32_t BFAR; /*!< Offset: 0x38 Bus Fault Address Register */__IO uint32_t AFSR; /*!< Offset: 0x3C Auxiliary Fault Status Register */__I uint32_t PFR[2]; /*!< Offset: 0x40 Processor Feature Register */__I uint32_t DFR; /*!< Offset: 0x48 Debug Feature Register */__I uint32_t ADR; /*!< Offset: 0x4C Auxiliary Feature Register */__I uint32_t MMFR[4]; /*!< Offset: 0x50 Memory Model Feature Register */__I uint32_t ISAR[5]; /*!< Offset: 0x60 ISA Feature Register */
} SCB_Type;3 NVIC
寄存器定义
typedef struct
{__IO uint32_t ISER[8]; /*!< Offset: 0x000 Interrupt Set Enable Register */uint32_t RESERVED0[24];__IO uint32_t ICER[8]; /*!< Offset: 0x080 Interrupt Clear Enable Register */uint32_t RSERVED1[24];__IO uint32_t ISPR[8]; /*!< Offset: 0x100 Interrupt Set Pending Register */uint32_t RESERVED2[24];__IO uint32_t ICPR[8]; /*!< Offset: 0x180 Interrupt Clear Pending Register */uint32_t RESERVED3[24];__IO uint32_t IABR[8]; /*!< Offset: 0x200 Interrupt Active bit Register */uint32_t RESERVED4[56];__IO uint8_t IP[240]; /*!< Offset: 0x300 Interrupt Priority Register (8Bit wide) */uint32_t RESERVED5[644];__O uint32_t STIR; /*!< Offset: 0xE00 Software Trigger Interrupt Register */
} NVIC_Type;ISER&ICER
中断的使能与除能分别使用各自的寄存器来控制——这与传统的，使用单一比特的两个状态来表达使能与除能是不同的。CM3中可以有240对使能位／除能位(SETENA位/CLRENA位)，每个中断拥有一对。这240个对子分布在8对32位寄存器中（最后一对没有用完）。欲使能一个中断，我们需要写1到对应SETENA的位中；欲除能一个中断，你需要写1到对应的CLRENA位中。如果往它们中写0，则不会有任何效果。
ISPR&ICPR

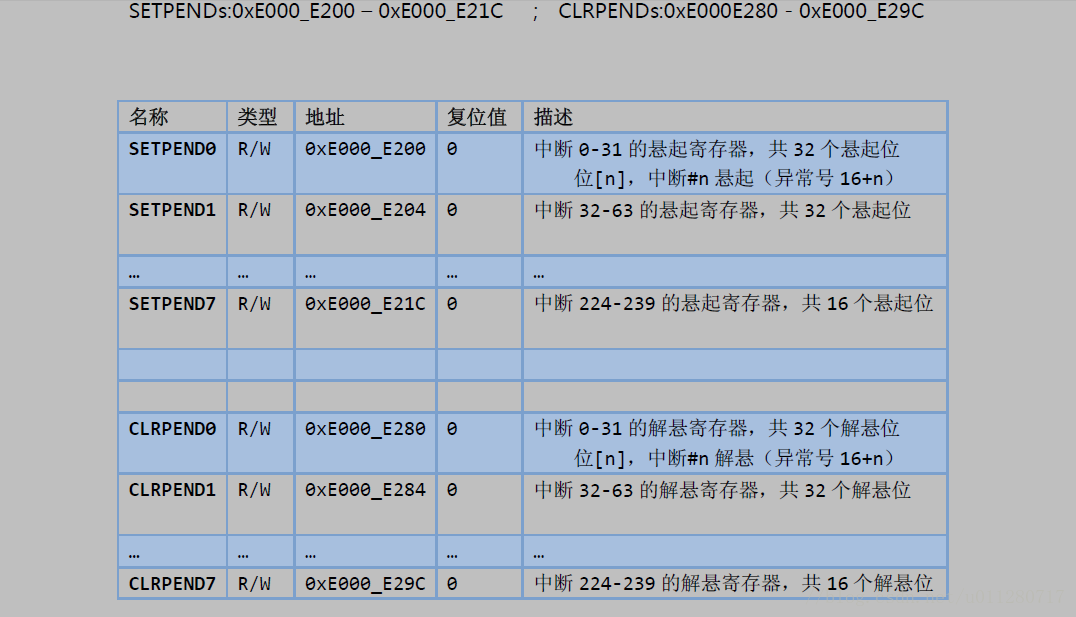

如果中断发生时，正在处理同级或高优先级异常，或者被掩蔽，则中断不能立即得到响应。此时中断被悬起。中断的悬起状态可以通过“中断设置悬起寄存器(SETPEND)”和“中断悬起清除寄存器(CLRPEND)”来读取，还可以写它们来手工悬起中断。
悬起寄存器和“解悬”寄存器也可以有8对，其用法和用量都与前面介绍的使能/除能寄存器完全相同，见表8.2。

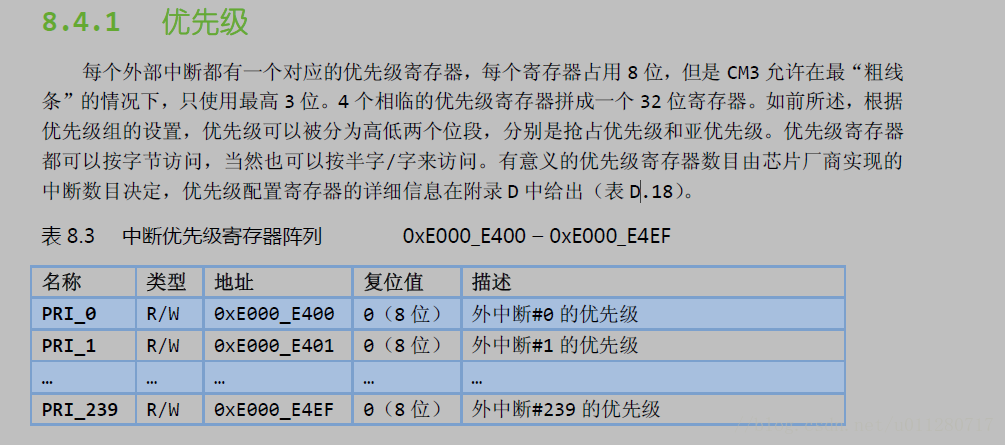

IP[240]
IABR[8]

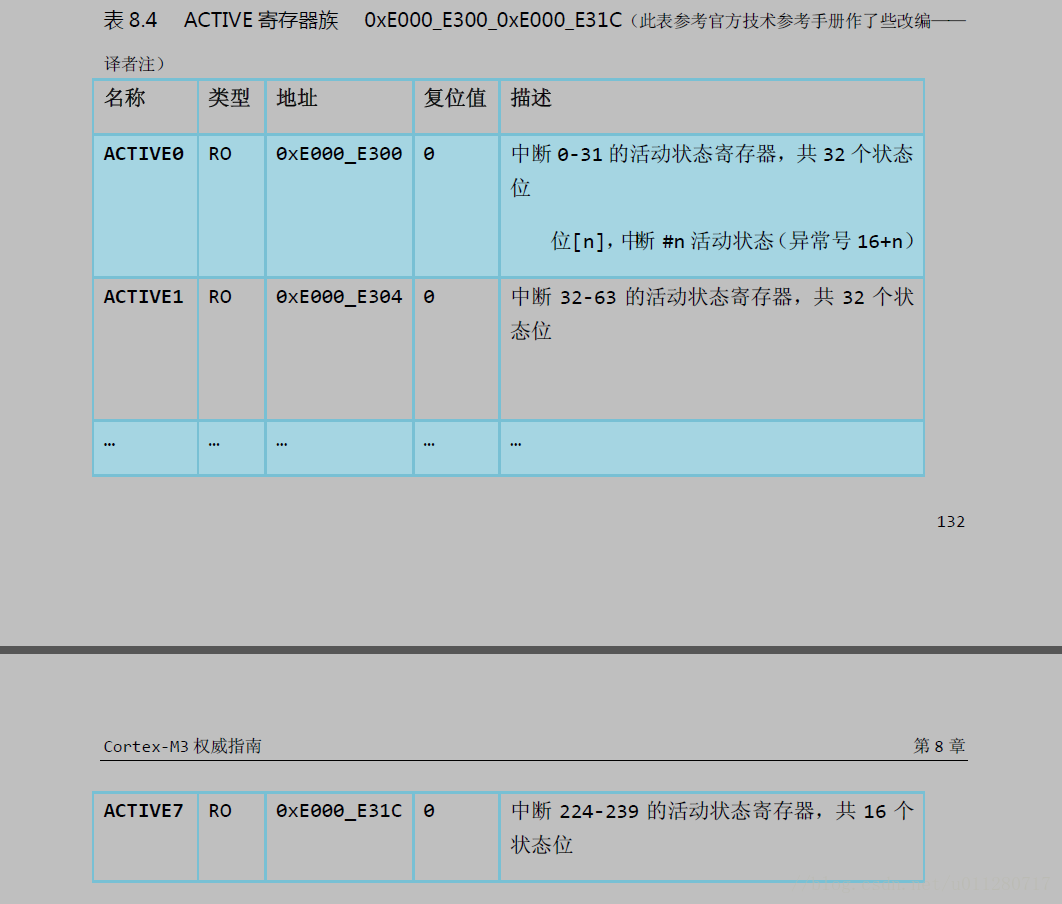

每个外部中断都有一个活动状态位。在处理器执行了其ISR的第一条指令后，它的活动位就被置1，并且直到ISR返回时才硬件清零。由于支持嵌套，允许高优先级异常抢占某个ISR。然而，哪怕中断被抢占，其活动状态也依然为1（请仔细琢磨前文讲到的“直到ISR返回时才清零）。活动状态寄存器的定义，与前面讲的使能/除能和悬起/解悬寄存器相同，只是不再成对出现。它们也能按字／半字／字节访问，但他们是只读的，如表8.4所示

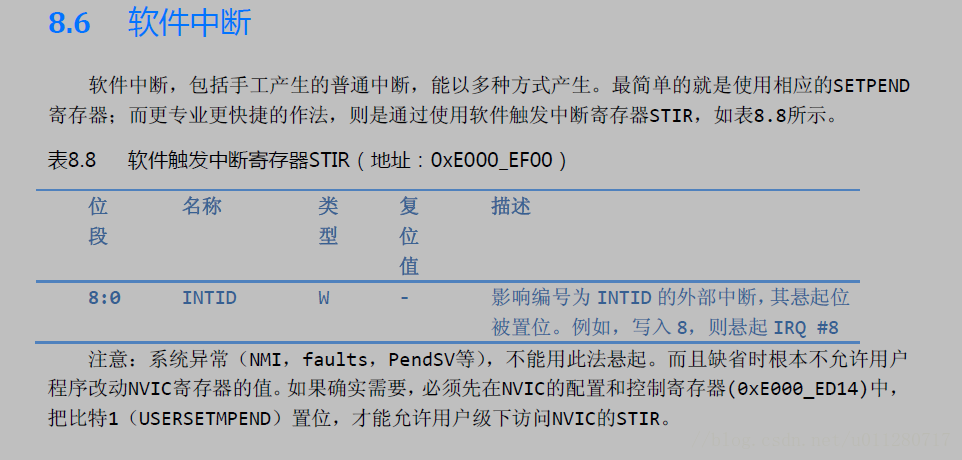

STIR
NVIC 函数/宏
优先级分组设置

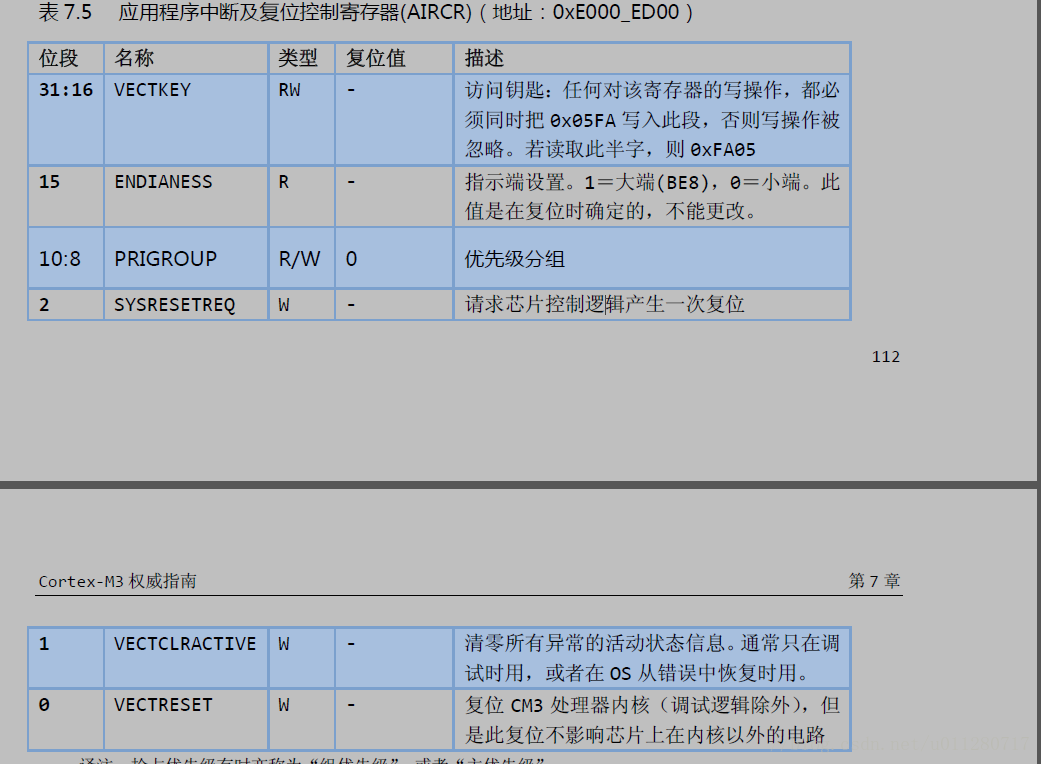

下表为AIRCR的寄存器，AIRCR位于SCB中。

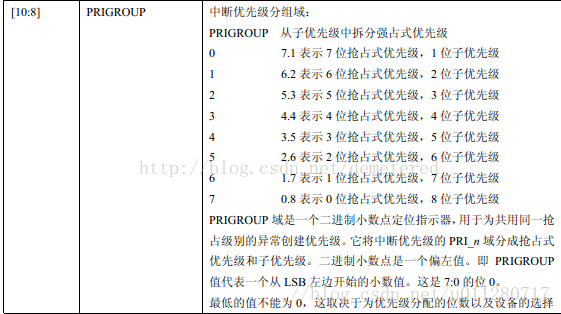

- NVIC_SetPriorityGrouping这个函数实现就非常简单了，同时将VECTKEY和PRIGROUP就能完成优先级组的设置。
- NVIC_GetPriorityGrouping是读出优先级组设置的函数，实现很简单，直接读AIRCR的PRIGROUP字段即可。
static __INLINE void NVIC_SetPriorityGrouping(uint32_t PriorityGroup)
{uint32_t reg_value;uint32_t PriorityGroupTmp = (PriorityGroup & 0x07); /* only values 0..7 are used */reg_value = SCB->AIRCR; /* read old register configuration */reg_value &= ~(SCB_AIRCR_VECTKEY_Msk | SCB_AIRCR_PRIGROUP_Msk); /* clear bits to change */reg_value = (reg_value |(0x5FA << SCB_AIRCR_VECTKEY_Pos) |(PriorityGroupTmp << 8)); /* Insert write key and priorty group */SCB->AIRCR = reg_value;
}static __INLINE uint32_t NVIC_GetPriorityGrouping(void)
{return ((SCB->AIRCR & SCB_AIRCR_PRIGROUP_Msk) >> SCB_AIRCR_PRIGROUP_Pos); /* read priority grouping field */
}使能/除能中断
NVIC_EnableIRQ设置ISER中的某一个中断，计算方法也很简单，就是简单的bitmap操作。
NVIC_DisableIRQ设置ICER中的某一个中断，计算方法与NVIC_EnableIRQ一样。
static __INLINE void NVIC_EnableIRQ(IRQn_Type IRQn)
{NVIC->ISER[((uint32_t)(IRQn) >> 5)] = (1 << ((uint32_t)(IRQn) & 0x1F)); /* enable interrupt */
}static __INLINE void NVIC_DisableIRQ(IRQn_Type IRQn)
{NVIC->ICER[((uint32_t)(IRQn) >> 5)] = (1 << ((uint32_t)(IRQn) & 0x1F)); /* disable interrupt */
}中断挂起/清除
以下三个函数非常分别获取中断挂起状态，设置中断挂起，清除中挂起。实际上就是去操作NVIC的ISPR和ICPR寄存器，看过上面寄存器定义看到这个代码就很好理解了。
static __INLINE uint32_t NVIC_GetPendingIRQ(IRQn_Type IRQn)
{return((uint32_t) ((NVIC->ISPR[(uint32_t)(IRQn) >> 5] & (1 << ((uint32_t)(IRQn) & 0x1F)))?1:0)); /* Return 1 if pending else 0 */
}static __INLINE void NVIC_SetPendingIRQ(IRQn_Type IRQn)
{NVIC->ISPR[((uint32_t)(IRQn) >> 5)] = (1 << ((uint32_t)(IRQn) & 0x1F)); /* set interrupt pending */
}static __INLINE void NVIC_ClearPendingIRQ(IRQn_Type IRQn)
{NVIC->ICPR[((uint32_t)(IRQn) >> 5)] = (1 << ((uint32_t)(IRQn) & 0x1F)); /* Clear pending interrupt */
}激活中断状态
NVIC_GetActive操作NVIC中的IABR寄存器，其操作与其他NVIC的寄存器操作一样，类似bitmap。
static __INLINE uint32_t NVIC_GetActive(IRQn_Type IRQn)
{return((uint32_t)((NVIC->IABR[(uint32_t)(IRQn) >> 5] & (1 << ((uint32_t)(IRQn) & 0x1F)))?1:0)); /* Return 1 if active else 0 */
}设置中断优先级
优先级设置会根据是IRQ还是系统内部异常设置不同的寄存器，如果是IRQ中断，设置NVIC的IP寄存器。否则设置SCB中SHP寄存器。下图就是SHP的寄存器，SHP位于SCB中。
static __INLINE void NVIC_SetPriority(IRQn_Type IRQn, uint32_t priority)
{if(IRQn < 0) {SCB->SHP[((uint32_t)(IRQn) & 0xF)-4] = ((priority << (8 - __NVIC_PRIO_BITS)) & 0xff); } /* set Priority for Cortex-M3 System Interrupts */else {NVIC->IP[(uint32_t)(IRQn)] = ((priority << (8 - __NVIC_PRIO_BITS)) & 0xff); } /* set Priority for device specific Interrupts */
}static __INLINE uint32_t NVIC_GetPriority(IRQn_Type IRQn)
{if(IRQn < 0) {return((uint32_t)(SCB->SHP[((uint32_t)(IRQn) & 0xF)-4] >> (8 - __NVIC_PRIO_BITS))); } /* get priority for Cortex-M3 system interrupts */else {return((uint32_t)(NVIC->IP[(uint32_t)(IRQn)] >> (8 - __NVIC_PRIO_BITS))); } /* get priority for device specific interrupts */
}Encode/Decode优先级
NVIC_EncodePriority的计算方法如下：先根据优先级组设置PriorityGroup得到优先级是如何分布，即多少位表示抢占优先级，多少位表示次优先级。然后根据得到的位数分布分别将抢占优先级和次优先级填入一个字节中。
NVIC_DecodePriority 正好相反，根据优先级值和优先级组设置获取抢占优先级和次优先级。
static __INLINE uint32_t NVIC_EncodePriority (uint32_t PriorityGroup, uint32_t PreemptPriority, uint32_t SubPriority)
{uint32_t PriorityGroupTmp = (PriorityGroup & 0x07); /* only values 0..7 are used */uint32_t PreemptPriorityBits;uint32_t SubPriorityBits;PreemptPriorityBits = ((7 - PriorityGroupTmp) > __NVIC_PRIO_BITS) ? __NVIC_PRIO_BITS : 7 - PriorityGroupTmp;SubPriorityBits = ((PriorityGroupTmp + __NVIC_PRIO_BITS) < 7) ? 0 : PriorityGroupTmp - 7 + __NVIC_PRIO_BITS;return (((PreemptPriority & ((1 << (PreemptPriorityBits)) - 1)) << SubPriorityBits) |((SubPriority & ((1 << (SubPriorityBits )) - 1))));
}static __INLINE void NVIC_DecodePriority (uint32_t Priority, uint32_t PriorityGroup, uint32_t* pPreemptPriority, uint32_t* pSubPriority)
{ uint32_t PriorityGroupTmp = (PriorityGroup & 0x07); /* only values 0..7 are used */ uint32_t PreemptPriorityBits; uint32_t SubPriorityBits; PreemptPriorityBits = ((7 - PriorityGroupTmp) > __NVIC_PRIO_BITS) ? __NVIC_PRIO_BITS : 7 - PriorityGroupTmp; SubPriorityBits = ((PriorityGroupTmp + __NVIC_PRIO_BITS) < 7) ? 0 : PriorityGroupTmp - 7 + __NVIC_PRIO_BITS; *pPreemptPriority = (Priority >> SubPriorityBits) & ((1 << (PreemptPriorityBits)) - 1); *pSubPriority = (Priority ) & ((1 << (SubPriorityBits )) - 1);
}
系统复位
这个看AIRCR寄存器的定义就可以知道往AIRCR中的SYSRESETREQ就可以知道，往该位中写入1就能触发一次芯片复位。
static __INLINE void NVIC_SystemReset(void)
{SCB->AIRCR = ((0x5FA << SCB_AIRCR_VECTKEY_Pos) |(SCB->AIRCR & SCB_AIRCR_PRIGROUP_Msk) |SCB_AIRCR_SYSRESETREQ_Msk); /* Keep priority group unchanged */__DSB(); /* Ensure completion of memory access */while(1); /* wait until reset */
}4 SysTick
static __INLINE uint32_t SysTick_Config(uint32_t ticks)
{if (ticks > SysTick_LOAD_RELOAD_Msk) return (1); /* Reload value impossible */SysTick->LOAD = (ticks & SysTick_LOAD_RELOAD_Msk) - 1; /* set reload register */NVIC_SetPriority (SysTick_IRQn, (1<<__NVIC_PRIO_BITS) - 1); /* set Priority for Cortex-M0 System Interrupts */SysTick->VAL = 0; /* Load the SysTick Counter Value */SysTick->CTRL = SysTick_CTRL_CLKSOURCE_Msk |SysTick_CTRL_TICKINT_Msk |SysTick_CTRL_ENABLE_Msk; /* Enable SysTick IRQ and SysTick Timer */return (0); /* Function successful */
}core_cm3.c
