Axis2与Spring集成发布

2024-06-03 14:32
文章标签 java spring 发布 集成 axis2

本文主要是介绍Axis2与Spring集成发布,希望对大家解决编程问题提供一定的参考价值,需要的开发者们随着小编来一起学习吧!

在现今的Web应用中经常使用spring框架来装载JavaBean。如果要想将某些在spring中装配的JavaBean发布成WebService,使用Axis2的Spring感知功能是非常容易做到的。

1、首先建立一个web工程,名字叫WebService,
2、把相应的axis2的jar文件考到WEB-INF的lib下
3、 在项目的WebRoot下的目录结构要和以前用war包是的目录结构一样(否则可能就要报错了)
目录结构如图所示:



4、在src下建立package sample.service
5、建立提供服务的接口

[java] view plain copy
print ?
  1. package sample.service;
  2.
  3. /**
  4.  * 定义服务接口
  5.  * @author 11111
  6.  *
  7.  */
  8. public interface ServiceServer {
  9. //定义服务方法
  10.     public String sayHello(String name);
  11.
  12. }
package sample.service;  /** * 定义服务接口 * @author 11111 * */
public interface ServiceServer {
//定义服务方法  public String sayHello(String name);  }

实现类:

[java] view plain copy
print ?
  1. package sample.service;
  2.
  3. public class ServiceServerImpl implements ServiceServer {
  4.
  5.     public String sayHello(String name) {
  6.
  7.         return "hello"+name;
  8.     }
  9.
  10. }
package sample.service;  public class ServiceServerImpl implements ServiceServer {  public String sayHello(String name) {  return "hello"+name;  }  }


6、在src下建立applicationContext.xml文件
配置如下

[html] view plain copy
print ?
  1. <?xml version="1.0" encoding="UTF-8"?>
  2. <beans xmlns="http://www.springframework.org/schema/beans"
  3.     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  4.     xmlns:aop="http://www.springframework.org/schema/aop"
  5.     xmlns:tx="http://www.springframework.org/schema/tx"
  6.     xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-2.0.xsd
  7.            http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-2.0.xsd
  8.            http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-2.0.xsd">
  9.
  10.
  11.
  12. <bean id="SayHelloService" class="sample.service.ServiceServerImpl">
  13. </bean>
  14.
  15.
  16. </beans>
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"  xmlns:aop="http://www.springframework.org/schema/aop"  xmlns:tx="http://www.springframework.org/schema/tx"  xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-2.0.xsd  http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-2.0.xsd  http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-2.0.xsd">  <bean id="SayHelloService" class="sample.service.ServiceServerImpl">
</bean>  </beans>



7、在WebRoor/WEB-INF/services/目录下建立目录sampleService(这个名字可以随便取)
然后建立在其下META-INF目录,然后再在其目录下建立services.xml
目录结构如下



services.xml的内容如下:



[html] view plain copy
print ?
  1. <?xml version="1.0" encoding="UTF-8"?>
  2.
  3.
  4. <service name="HelloWorld">
  5.         <description>web service</description>
  6.         <parameter name="ServiceObjectSupplier">
  7.             org.apache.axis2.extensions.spring.receivers.SpringServletContextObjectSupplier
  8.         </parameter>
  9.         <parameter name="SpringBeanName">SayHelloService</parameter>
  10. //SpringBeanName名字是固定的不能改
  11. //SayHelloService是spring中注册的实现类的id(这个大家肯定很清楚了)
  12.
  13.  <operation name="sayHello">
  14.             <messageReceiver
  15.                 class="org.apache.axis2.rpc.receivers.RPCMessageReceiver" />
  16.         </operation>
  17.
  18. </service>
<?xml version="1.0" encoding="UTF-8"?>  <service name="HelloWorld">  <description>web service</description>  <parameter name="ServiceObjectSupplier">  org.apache.axis2.extensions.spring.receivers.SpringServletContextObjectSupplier  </parameter>  <parameter name="SpringBeanName">SayHelloService</parameter>
//SpringBeanName名字是固定的不能改
//SayHelloService是spring中注册的实现类的id(这个大家肯定很清楚了)  <operation name="sayHello">  <messageReceiver  class="org.apache.axis2.rpc.receivers.RPCMessageReceiver" />  </operation>  </service>

8、现在要配置一下web.xml了
内容如下:

[html] view plain copy
print ?
  1. <?xml version="1.0" encoding="UTF-8"?>
  2. <web-app version="2.5"
  3.     xmlns="http://java.sun.com/xml/ns/javaee"
  4.     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  5.     xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
  6.     http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd">
  7.
  8.     <servlet>
  9.         <servlet-name>AxisServlet</servlet-name>
  10. //注册axis2的servlet
  11.         <servlet-class>org.apache.axis2.transport.http.AxisServlet</servlet-class>
  12.         <load-on-startup>1</load-on-startup>
  13.     </servlet>
  14.
  15.     <servlet-mapping>
  16.         <servlet-name>AxisServlet</servlet-name>
  17.         <url-pattern>/services/*</url-pattern>
  18.     </servlet-mapping>
  19. //加载spring的配置文件
  20.     <context-param>
  21.       <param-name>contextConfigLocation</param-name>
  22.
  23.       <param-value>classpath*:applicationContext.xml</param-value>
  24.     </context-param>
  25. //增加spring监听器
  26.     <listener>
  27.         <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  28.     </listener>
  29. </web-app>
<?xml version="1.0" encoding="UTF-8"?>
<web-app version="2.5"   xmlns="http://java.sun.com/xml/ns/javaee"   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"   xsi:schemaLocation="http://java.sun.com/xml/ns/javaee   http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd">  <servlet>  <servlet-name>AxisServlet</servlet-name>
//注册axis2的servlet  <servlet-class>org.apache.axis2.transport.http.AxisServlet</servlet-class>  <load-on-startup>1</load-on-startup>  </servlet>  <servlet-mapping>  <servlet-name>AxisServlet</servlet-name>  <url-pattern>/services/*</url-pattern>  </servlet-mapping>
//加载spring的配置文件  <context-param>  <param-name>contextConfigLocation</param-name>  <param-value>classpath*:applicationContext.xml</param-value>  </context-param>
//增加spring监听器  <listener>  <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>  </listener>
</web-app>

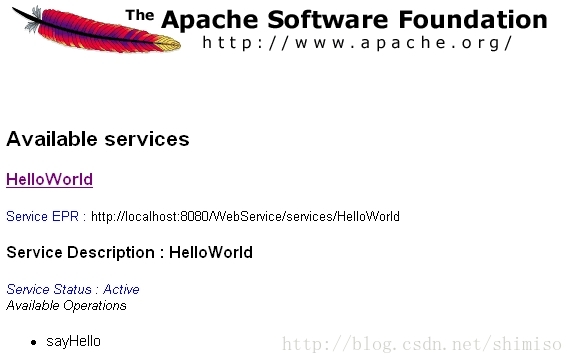

9、启动tomcat 在浏览器中输入http://localhost:8080/WebService/services/listServices
可以看到一下内容说明我们的服务已经发布成功了

访问
http://localhost:8080/WebService/services/HelloWorld?wsdl
可以查看wsdl



现在我们开始访问我们的服务,我们采用用axis2 的eclipse 插件自动生成客户端
一、根据wsdl自动生成客户端的方式

1、新建一个Java project ,取名为ServiceClient

2、建立一个User Library 取名AXIS2 将axis2 所需要的jar文件加到AXIS2中,然后在
ServiceClient 中引入这个library

3、在eclipse中安装axis2插件
Service Archive Wizard - Eclipse Plug-in 和 Code Generator Wizard - Eclipse Plug-in
注:安装方式可见我的博客中的axis webservice 笔记 安装eclipse axis2 插件 (links 方式)文章

4、(1)选择new->other->Axis2 Wizards-> Axis2 code generator




(2)下一步




(3)下一步
把浏览其中的wsdl地址考到里面



(4) 下一步 直接点next

(5)选择生成到我们刚建好的ServiceClient的src 目录中

然后点击finish,这样就可一生成客户端了,刷新项目就可以看到了



5、生成的目录结构如图所示:




二、新建ServiceClient.Java 内容如下

[java] view plain copy
print ?
  1.    package sample.service;
  2.
  3. public class ServiceClient {
  4.
  5.     /**
  6.      * @param args
  7.      */
  8.     public static void main(String[] args) throws java.lang.Exception{
  9. //创建存根类
  10.         HelloWorldStub stub = new HelloWorldStub();
  11. //设置相应的方法的值
  12.             HelloWorldStub.SayHello sayHello = new HelloWorldStub.SayHello();
  13.
  14.         sayHello.setName("张三");
  15. //调用服务的相应方法并获得返回值
  16.         HelloWorldStub.SayHelloResponse response = stub.sayHello(sayHello);
  17.
  18.         System.out.println(response.get_return());
  19.
  20.     }
  21.
  22. }
   package sample.service;  public class ServiceClient {  /** * @param args */  public static void main(String[] args) throws java.lang.Exception{
//创建存根类  HelloWorldStub stub = new HelloWorldStub();
//设置相应的方法的值   HelloWorldStub.SayHello sayHello = new HelloWorldStub.SayHello();  sayHello.setName("张三");
//调用服务的相应方法并获得返回值  HelloWorldStub.SayHelloResponse response = stub.sayHello(sayHello);  System.out.println(response.get_return());  }  }

运行这个java类,可以看到console中
打印出:hello张三 ,说明我们已经调用成功了。

这篇关于Axis2与Spring集成发布的文章就介绍到这儿,希望我们推荐的文章对编程师们有所帮助!
