cicd 01--构建通用的CI流程

1 介绍
2 CI构建过程
- 2.1 参数配置说明
- 2.2 pipeline 脚本
- 2.3 测试流程
3 注意事项
4 说明

1 介绍

笔者在 docker笔记3–配置jenkins 和 k8s笔记7.3–基于gitlab、jenkins、helm、k8s的CI/CD 中介绍了jenkins的安装和基于helm 的k8s 流程。本文基于上述基础继续分享一个构建和发布镜像的通用jenkins流程，以便于为企业中所有的服务实现镜像发布。

2 CI构建过程

本案例中涉及多种agent，比如普通的slave节点可以访问gitlab仓库，aliyun-build可以用来访问上传镜像，但是不能访问gitlab；因此需要通过多个节点协调操作，在slave节点上拉取镜像，然后拷贝到aliyun-build中，在build机器上build镜像并上传到仓库，最后在slave机器上给repo打一个tag。

本案例中为了实现一个通用的build流程，并没有为不同的镜像配置不同build环境，而是为其封装一个通用的build_docker.sh 脚本，用户按照需要改动即可。

若遇见不同的环境，例如A 镜像需要 java9、B镜像需要 java11 的打包环境，那么可以将其某个机器上build好生成可执行文件，然后在 build_docker.sh 中下载所需文件后再打包；也可以封装一个专用的build code的镜像，先运行该镜像build 可执行文件，然后再继续生成的文件build 处生产环境所需的镜像。

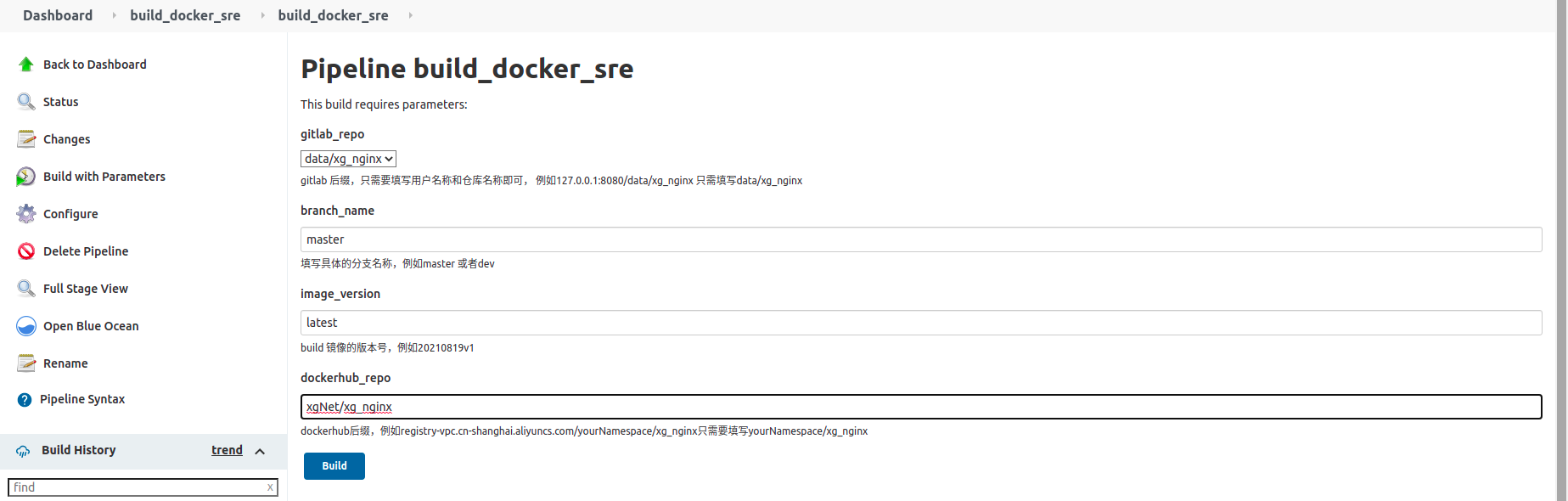

2.1 参数配置说明

拉取指定gitlab repo 代码
对应参数：gitlab_repo (sre设置为下拉选项目)
切换到指定的分支
对应参数：branch_name (用户自填)
确定镜像版本号, 格式最好为yyyymmddvx(x为具体数字，例如 20210814v1)
对应参数：image_version (用户自填)
确定dockerhub仓库后缀, 格式为命名空间/仓库名称(例如 yourNamespace/xg_nginx)
对应参数：dockerhub_repo (用户自填)
通过该分支根目录下的 build_docker.sh 和 Dockerfile 来构建镜像，并将镜像推送到对应的dockerhub中

build_docker.sh 案例
以下为build_docker.sh 案例，每个分支都要参考该方法写一个 build_docker.sh，并确保执行 bash build_docker.sh dockerhub_repo image_version 后能正常推送到docker仓库

#!/bin/bashdocker_image_name=xg_nginx # 需要将此处的xg_nginx 替换为dockerhub_repo 中的后缀function usage() {
cat <<_EOF
usage:bash build_docker.sh -h|--help|dockerhub_repo image_versionfor example, bash build_docker.sh yourNamespace/xg_nginx 20210816v1
_EOF
}function build_docker() {docker build -t $docker_image_name:$2 .if [ $? -eq 0 ]; thenecho "build_docker $docker_image_name:$2, success"elseecho "build_docker $docker_image_name:$2, failed"exit 1fidocker tag $docker_image_name:$2 registry-vpc.cn-shanghai.aliyuncs.com/$1:$2if [ $? -eq 0 ]; thenecho "tag $docker_image_name:$2, success"elseecho "tag $docker_image_name:$2, failed"exit 1fidocker push registry-vpc.cn-shanghai.aliyuncs.com/$1:$2if [ $? -eq 0 ]; thenecho "push registry-vpc.cn-shanghai.aliyuncs.com/$1:$2, success"elseecho "push registry-vpc.cn-shanghai.aliyuncs.com/$1:$2, failed"exit 1fidocker rmi $docker_image_name:$2docker rmi registry-vpc.cn-shanghai.aliyuncs.com/$1:$2
}case "$1" in-h)usage;;--help)usage;;*)build_docker $1 $2;;
esac

2.2 pipeline 脚本

gitlab_repo = "${params.gitlab_repo}"
def split = gitlab_repo.split("/")
def repo_name = split[1]
branch_name = "${params.branch_name}"
image_version = "${params.image_version}"
dockerhub_repo = "${params.dockerhub_repo}"
repo_url = "git@gitlab.yourCompany.com:${gitlab_repo}.git"println("gitlab_repogitlab_repo branch=${gitlab_repo} ${branch_name}")
println("repo_name=${repo_name}, image_version=${image_version}")
println("dockerhub_repo=${dockerhub_repo}")default_description = "${gitlab_repo} ${branch_name}:${image_version}"
currentBuild.description = "${default_description}"pipeline {agent anyenvironment {repo_name1 = "${repo_name}"}stages {stage('Clean workspace') {agent { node { label 'aliyun-build' } }steps {sh """rm -rf /nas/jenkins/sre_workspace/build_docker_sre/\${repo_name1}_\${branch_name} || true"""}}stage("Clone Repo"){agent { node { label 'slave' } }steps {deleteDir()dir("${repo_name1}_${branch_name}"){git(url: "${repo_url}",credentialsId: '73d3xxxx-xxxx-xxxx-xxxx-xxxxxxxx9274',branch: "${branch_name}")}}}stage('Scp to aliyun-build') {agent { node { label 'slave' } }steps {sh """pwdscp -r \${repo_name1}_\${branch_name} aliyun-build:/nas/jenkins/sre_workspace/build_docker_sre/if [ \$? -ne 0 ]thenecho "Found some error when copy the repo"fi"""}}stage('Build docker images') {agent { node { label 'aliyun-build' } }steps {sh """cd /nas/jenkins/sre_workspace/build_docker_sre/\${repo_name1}_\${branch_name}/if [ ! -f Dockerfile ]thenecho "No available dockerfile in workspace"fiif [ ! -f build_docker.sh ]thenecho "No available build_docker.sh in workspace"fibash build_docker.sh \${dockerhub_repo} \${image_version}pwd ls"""}}stage('Set tag') {agent { node { label 'slave' } }steps {dir("${repo_name1}_${branch_name}"){sh """git tag -m "Build docker image ${image_version} for ${branch_name}/${image_version}" \${branch_name}/\${image_version}git describegit push origin \${branch_name}/\${image_version}"""}}}}post {always {echo 'I have finished'}success {echo "build ${gitlab_repo} ${branch_name}:${image_version}, succeed!"sh """curl -X POST -H "Content-Type: application/json" -d '{"msg_type":"text","content":{"text":"build_docker_sre notify: ${gitlab_repo} ${branch_name}:${image_version}, succeed!"}}' https://open.feishu.cn/open-apis/bot/v2/hook/6caa4463-xxxx-xxxx-xxxx-89ac0e9e39c8"""}failure {echo "build ${gitlab_repo} ${branch_name}:${image_version}, failed!"sh """curl -X POST -H "Content-Type: application/json" -d '{"msg_type":"text","content":{"text":"build_docker_sre notify: ${gitlab_repo} ${branch_name}:${image_version}, failed!"}}' https://open.feishu.cn/open-apis/bot/v2/hook/6caa4463-xxxx-xxxx-xxxx-89ac0e9e39c8"""}}
}
